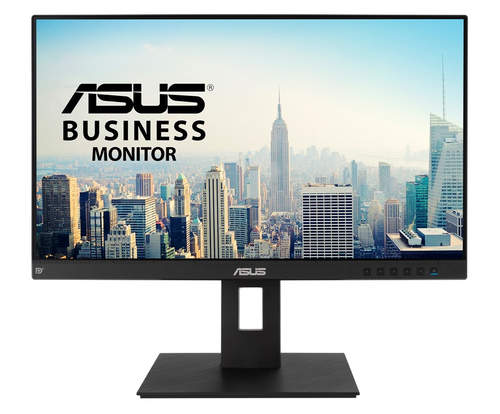

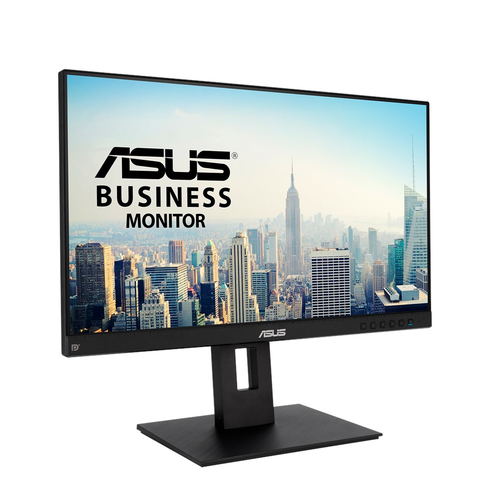

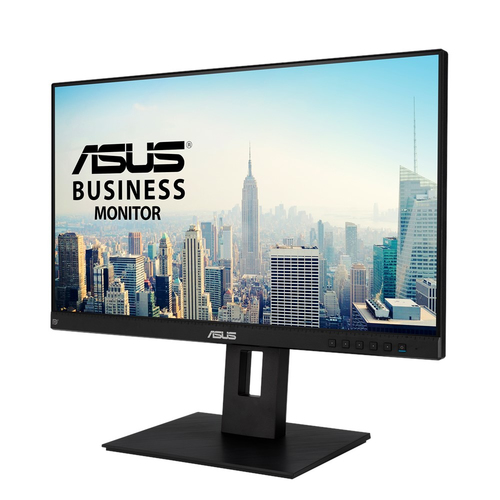

BE24EQSB Business Monitor
ASUS BE24EQSB is a 23.8 inch Full HD monitor that features a frameless IPS panel for wide angle viewing to deliver incredibly sharp imagery and stunning video playback. Its highly ergonomic design with tilt, swivel, pivot and height adjustments provides a comfortable viewing experience, and compatibility with a standard 100 x 100mm VESA mount allows flexible wall mounting or installation on a display arm.
Lifelike views with 178° wide view angle
BE24EQSB offers Full HD resolution to deliver stunning clarity. The frameless IPS panel provides 178 viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
Extensive Connectivity
BE24EQSB features a host of connectivity options that include HDMI, DisplayPort, D sub and four USB 3.0 ports, so hooks up easily to a wide variety of PCs, laptops, consoles, media boxes, keyboard and mice. It also has pass through ports for the line in and headphone jack inputs, putting the audio connections conveniently.

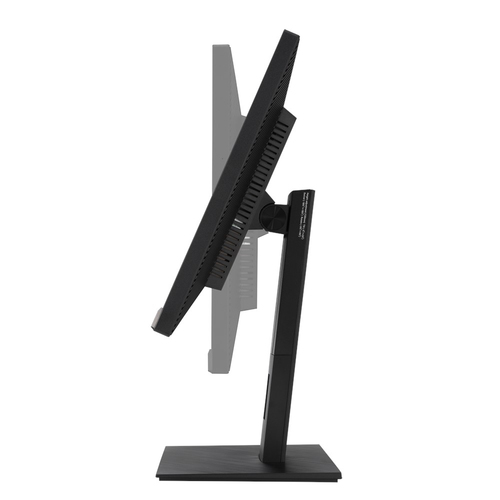

Versatile, ergonomic stand for custom comfort

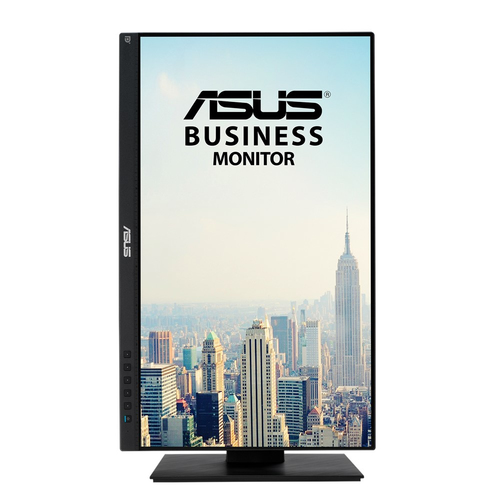

Because its ergonomic stand offers tilt, swivel, pivot, and height adjustments, BE24EQSB provides a superb range of viewing options for increased productivity and comfort. The screen can also be rotated vertically through 90 degree for use in Portrait mode, which is a great benefit when working with long documents, writing code or browsing lengthy websites.
Space-saving design for a clutter-free desktop
BE24EQSB is VESA Mountable and equipped with the ASUS-designed MiniPC kit, which fits on the stand, for those who need to mount mini PCs on the rear of monitor, to make the desktop clutter-free and space saving.
Protect your eyes with ASUS Eye Care technology
ASUS blue light filter
Exclusive ASUS blue light filter protects you from harmful blue light. It offers four blue light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker free technology
It's time to say goodbye to those tired, strained eyes. Flicker Free technology helps reduce onscreen flicker, giving you a more comfortable, movie marathon ready environment. It is designed to minimize eyestrain, headaches and eye fatigue when you spend long, countless hours in front of the display.
Exclusive ASUS features for added versatility
Splendid Video Intelligence Technology
BE24EQSB features ASUS Splendid technology that optimizes videos and images by enhancing color brightness, contrast and sharpness. It features a wide variety of modes including Reading, Darkroom, Scenery, Standard, Theater, sRGB , Game and Night View.
MultiFrame Management Software
ASUS MultiFrame keeps your desktop neat and organized and allows you to manage multiple windows simultaneously.
Specifications
| Display |
| NTSC coverage (typical) |
72% |
| Digital vertical frequency |
48 - 77 Hz |
| Digital horizontal frequency |
55 - 96 kHz |
| Viewable size diagonal |
23.8" (60.5 cm) |
| Viewable size, vertical |
11.7" (29.6 cm) |
| Viewable size, horizontal |
20.7" (52.7 cm) |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Dynamic contrast ratio marketing name |
SmartContrast |
| Contrast ratio (dynamic) |
100000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Supported video modes |
480p, 576p, 720p, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness (typical) |
300 cd/m² |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
23.8" |
| Performance |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Frameless design |
Yes |
| Market positioning |
Business |
| Ports & interfaces |
| AC (power) in |
Yes |
| HDCP |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB upstream port type |
USB Type-B |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| LED indicators |
Power, Stand-by |
| Number of OSD languages |
21 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, French, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Thai, Turkish |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 - 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-180 - 180° |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Adjustable height (max) |
5.12" (13 cm) |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
405438 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
21.7 W |
| Energy consumption (SDR) per 1000 hours |
22 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight (without stand) |
11 lbs (5 kg) |
| Height (without stand) |
13" (330 mm) |
| Depth (without stand) |
1.85" (47 mm) |
| Width (without stand) |
21.3" (540 mm) |
| Weight (with stand) |
17.2 lbs (7.8 kg) |
| Height (with stand) |
13.1" (332 mm) |
| Depth (with stand) |
8.31" (211 mm) |
| Width (with stand) |
21.3" (540 mm) |
| Packaging data |
| Package weight |
23.1 lbs (10.5 kg) |
| Package height |
18.7" (474 mm) |
| Package depth |
7.56" (192 mm) |
| Package width |
25.6" (649 mm) |
| Packaging content |
| Cables included |
AC, USB |
| Stand included |
Yes |
| Other features |
| Certification |
Energy Star, BSMI, CB, CCC, CEL level , CU, ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, TUV-Ergo, TUV-GS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, TCO, ICES-3, PC recycle |
| Package weight |
23.1 lbs (10.5 kg) |
