Are you tired of using a slow computer that can't keep up with your needs? Do you want to upgrade your system to make it faster and more efficient? Look no further than the ASUS PRIME B850M-A WIFI, AMD, Socket AM5 DDR5-SDRAM 256 GB micro ATX Motherboard. This motherboard is designed to unleash the full potential of AMD Ryzen 9000 series processors, providing users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. With the ASUS PRIME B850M-A WIFI, you can say goodbye to slow loading times and hello to a seamless computing experience.

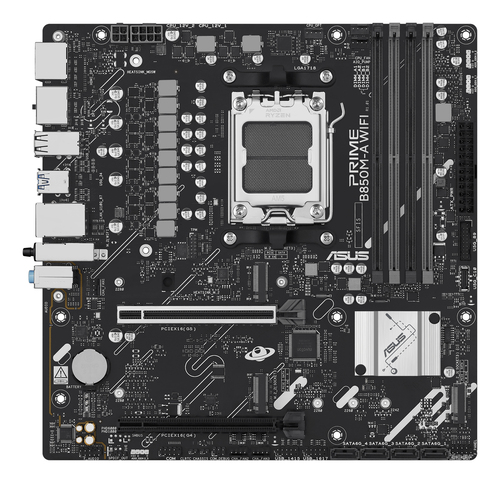

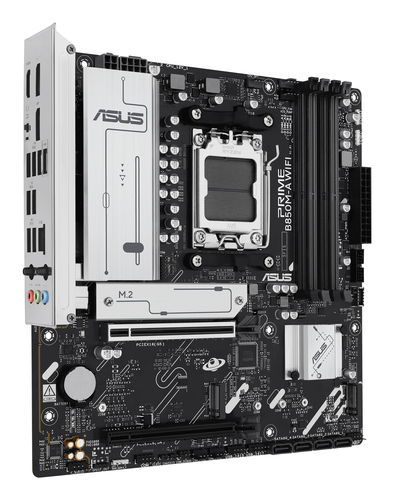

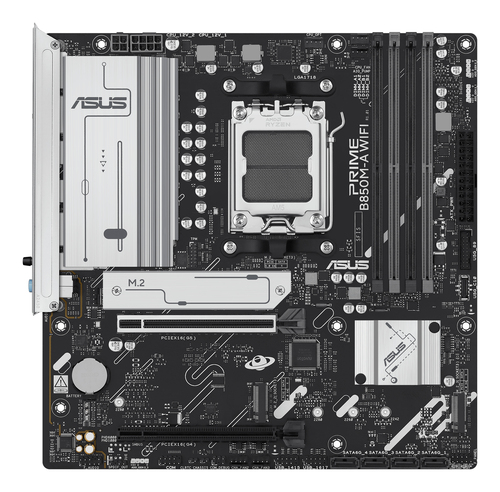

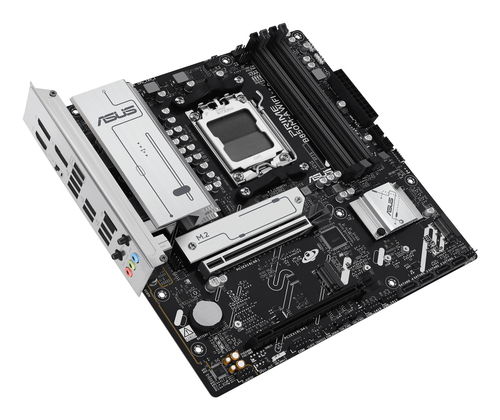

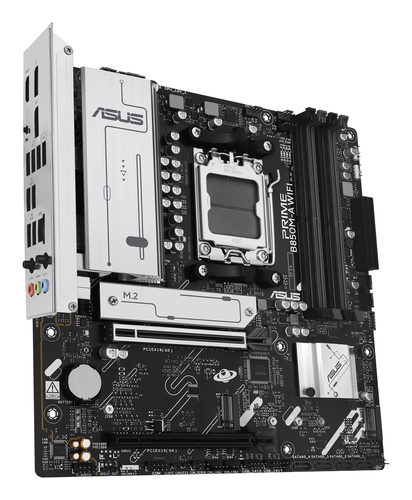

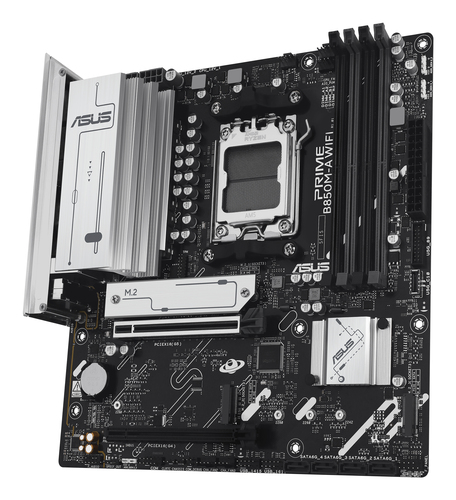

ASUS PRIME B850M-A WIFI, AMD, Socket AM5 DDR5-SDRAM 256 GB micro ATX Motherboard
The ASUS PRIME B850M-A WIFI solves the problem of slow computer performance by providing a high-quality motherboard that is designed to work seamlessly with AMD Ryzen 9000 series processors. This problem matters to users because it can cause frustration and decrease productivity. The ASUS PRIME B850M-A WIFI gives a clear solution by providing a range of performance optimizations via intuitive software and firmware features, making it easy for users to upgrade their system and improve their computing experience.
Key Features
- Socket AM5 for AMD Ryzen 9000 series processors
- DDR5-SDRAM memory type with 256 GB maximum internal memory
- Micro ATX motherboard form factor
- Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for wireless connectivity
- 2.5 Gigabit Ethernet, Fast Ethernet, and Gigabit Ethernet for wired connectivity
- USB 3.2 Gen 1 and USB 2.0 ports for peripheral connectivity
- DisplayPorts and HDMI ports for video output
- Audio output channels for high-quality sound
- UEFI AMI BIOS type for easy system configuration
- Windows 10 x64 and Windows 11 operating system support
Specifications
| Processor |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
3 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

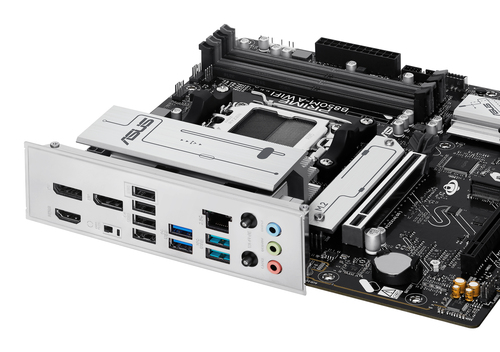

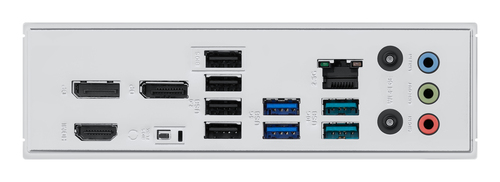

| Rear panel I/O ports |
| WiFi-AP antenna jack |
2 |
| Line-in |
Yes |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Product colour |
Multicolour |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
1.52 kg |
| Package height |
67.5 mm |
| Package depth |
275 mm |
| Package width |
275 mm |
| Weight & dimensions |
| Height |
50 mm |
| Depth |
244 mm |
| Width |
244 mm |
| Packaging content |

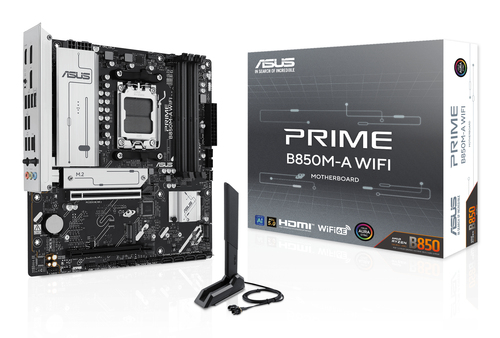

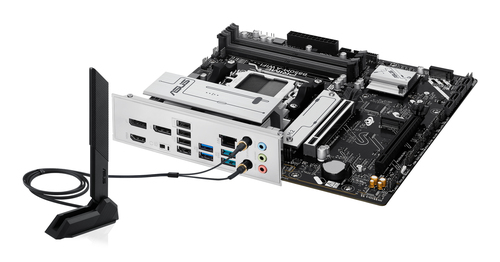

| Antenna included |
Yes |
| Other features |
| Maximum internal memory |
256 GB |
| Weight |
930 g |
