| General |
|
| Model Name |
GT-BE98 PRO |
| Product Segment |
BE30000 ultimate BE performance : 1376+5764+11529+11529 Mbps |
| Network Standard |
|
| Network Standard |
WiFi 6 (802.11ax), WiFi 7 (802.11be), IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
| WiFi Data Rate |
|
| WiFi Data Rate |
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps,
5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps,
6G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps,
6G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps
|
| Antenna |
|
| Antenna |
External antenna x 8 |
| Transmit / Receive |
2.4GHz 4x4, 5GHz 4x4, 6GHz-1 4x4, 6GHz-2 4x4 |
| Processor |
|
| Processor |
2.6GHz quad-core processor |
| Memory |
|
| Memory |
256 MB Flash and 2 GB RAM |
| Performance |
|
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal,
4096-QAM high data rate, 20/40/80/160/320 MHz bandwidth
|
| Operating Frequency |
2.4 GHz / 5 GHz / 6 GHz |
| Operating Mode |
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |

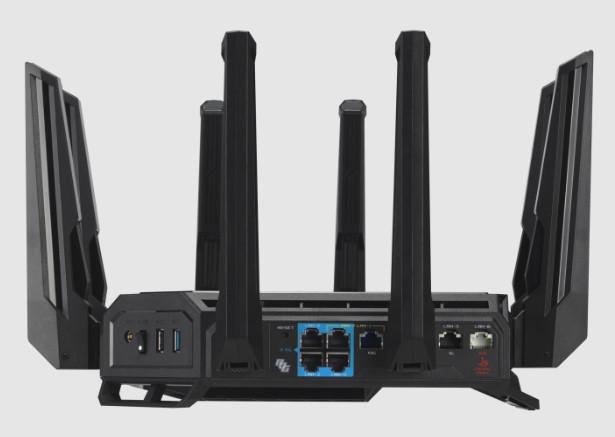

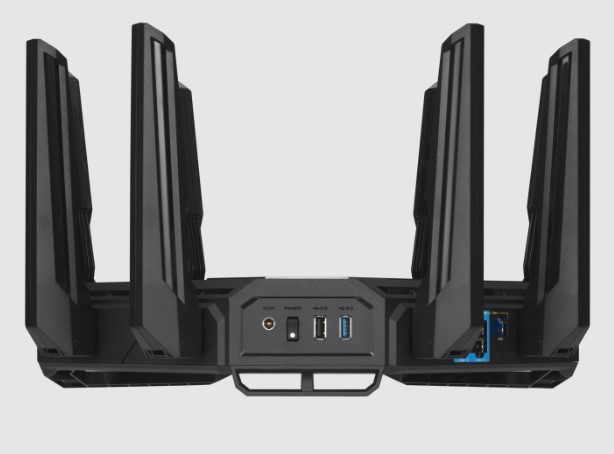

| I/O Ports |
|
| I/O Ports |
1 x 10Gbps for WAN/LAN, 1 x 2.5Gbps for WAN/LAN, 1 x 10Gbps for LAN, 3 x 2.5Gbps for LAN,
1 x RJ45 10/100/1000Mbps for LAN, 1 x USB 3.2 Gen1, 1 x USB 2.0
|
| Buttons |
|
| Buttons |
WPS Button, Reset Button, Power Switch, LED control Button |
| LED Indicator |
|
| LED Indicator |
WAN(Internet) x1, 10G LAN x1, 1G/2.5G LAN x1, 6GHz-2 x1, 6GHz-1 x1, 5GHz x1, 2.4GHz x1, Power x1 |
| Power |
|
| Power Supply |
AC Input : 110V~240V(50~60Hz), DC Output : 19.5 V with max. 3.33 A current / 12 V with max. 5A current |
| Package Content |
|
| Package Content |
GT-BE98 Pro quad-band gaming router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card |
| Physical |
|
| Product Weight (g) |
2000 g |
| Product Dimensions |
350.41 x 350.41 x 220.6 mm |
| AiMesh |
|
| AiMesh |
Primary AiMesh Router, AiMesh Node |
| Game |
|
| Game |
Game Boost / Acceleration, WTFast, ROG_First, OpenNAT (Game Profile), Gaming Port |
| Parental Control |
|
| Parental Control |
Allow you to block access to unwanted websites and apps. |
| Parental Control Customized Internet Schedule |
Yes |
| Maximum Parental Control Profile |
64 |
| Maximum Parental Control Content Filter Rule |
64 |
| Guest Network |
|
| Guest Network |
The Guest Network provides Internet connection for guests but restricts access to your local network. |
| Maximum Guest Network Rule |
2.4 GHz + 5 GHz : 5 |
| Guest Network Connection time limit |
Yes |
| Guest Network Encryption |
Open system, WPA/WPA2/WPA3 Personal |
| Security |
|
| WiFi Encryption |
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, Open System & OWE |
| WPS |
Yes |
| Let's Encrypt |
Yes |
| DNS-over-TLS |
Yes |
| SSH |
Yes |
| Security Scan |
Yes |
| Firewall |
|
| Keyword Filter |
64 |
| Network Service Filter |
32 |
| URL Filter |
64 |
| AiProtection |
|
| AiProtection |
Router Security Assessment, Malicious Site Blocking, Two-Way IPS, Infected Device Prevention and Blocking |
| VPN |
|
| VPN |
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard,
VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
|
| Traffic Control |
|
| Adaptive QoS |
Yes |
| Bandwidth Monitor |
Yes |
| Bandwidth Limiter |
Yes |
|
Max Bandwidth
Limiter Rule
|
32 |
| Traditional QoS |
Yes |
| Traffic Monitor |
Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor |
| Traffic Analyzer |
Traffic Analysis Period: Daily, Weekly, Monthly, Website History |
| WAN |
|
| Internet Connection Type |
Automatic IP, Static IP, PPPoE, PPTP, L2TP |
| Dual WAN |
Yes |
| 3G / 4G LTE Dongle |
Yes |
| 4G / 5G Auto Mobile Tethering |
Yes |
| Port Forwarding |
Yes |
|
Maximum Port
Forwarding Rule
|
64 |
| Port Triggering |
Yes |
|
Maximum Port
Triggering Rule
|
32 |
| DMZ |
Yes |
| DDNS |
Yes |
| NAT Passthrough |
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay |
| LAN |
|
| DHCP Server |
Yes |
| IPTV |
Yes |
| LAN Link Aggregation |
Yes |
|
Manually Assign
IP Address
|
Yes |
|
Max Manually Assign
IP Address Rule
|
128 |
| Wake on LAN (WOL) |
Yes |
| Wireless |
|
| MU-MIMO |
Yes |
| UTF-8 SSID |
Yes |
| WiFi MAC Address Filter |
Yes |
| Maximum MAC Filters |
64 |
| Wireless Scheduler |
Yes |
| Airtime Fairness |
Yes |
| RADIUS Client |
Yes |
| Universal Beamforming |
Yes |
| Explicit Beamforming |
Yes |
| USB application |
|
| USB application |
4G / 5G Auto Mobile Tethering |
| File System |
HFS+, NTFS, vFAT, ext2, ext3, ext4 |
| Safely Remove Disk |
Yes |
| Download Master |
Yes |
| Media Server |
Yes |
| Time Machine |
Yes |
| Samba Server |
Yes |
| FTP Server |
Yes |
| Shared Folder Privileges |
Yes |
| User Interface |
|
| Operating system |
ASUSWRT |
