Tired of a motherboard that cant keep up with the power of a new Ryzen 7000 CPU, causing crashes during long gaming sessions? You need a board that delivers stable power, efficient cooling and built-in Wi-Fi without endless tweaking. The ASUS solution packs military-grade components, upgraded DrMOS stages and a comprehensive cooling design so your rig runs smooth from the first match to the last. It solves instability, saves energy and lets you focus on the game.

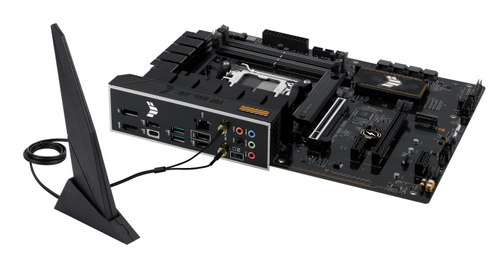

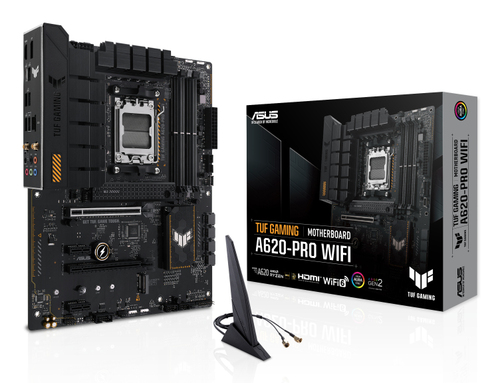

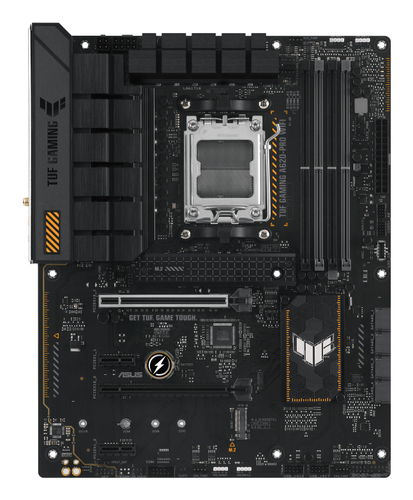

ASUS TUF GAMING A620-PRO WIFI AMD A620 Socket AM5 ATX Motherboard
The TUF GAMING A620-PRO WIFI is an ATX motherboard built for AMD AM5 processors, supporting Ryzen 5000 and 7000 series. It targets gamers and DIY builders who want reliable performance, DDR5 memory up to 192 GB, and fast 2.5 Gb Ethernet plus Wi-Fi 6 connectivity, all in a rugged, off-black chassis.
Benefits
- Stable power delivery eliminates sudden shutdowns.
- Enhanced cooling keeps temperatures low during marathon play.
- ASUS reliability gives you peace of mind.
- Energy-saving modes reduce electricity bills.
- Built-in Wi-Fi 6 provides lag-free online gaming.
- Easy BIOS tools let you fine-tune performance quickly.
Features
- 12+2 DrMOS power stages, 50 A each.

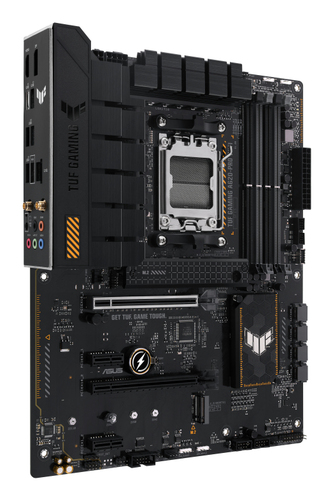

- Supports DDR5-6400 memory speeds.

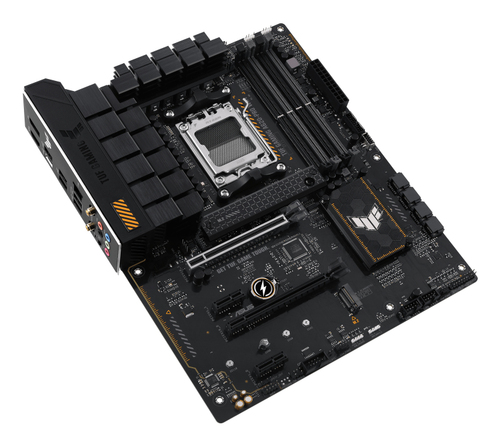

- Four SATA III ports and two M.2 slots.
- 2.5 Gb Ethernet and Wi-Fi 6 (802.11ax).
- Three chassis fan headers, one CPU fan header.
- RGB header for lighting synchronization.
- UEFI AMI BIOS with 256 Mbit flash.
- ATX form factor, 305 mm 244 mm size.
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 5000 Series, AMD Ryzen 7000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
6400 MHz |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

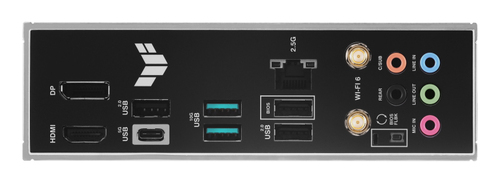

| Rear panel I/O ports |
| WiFi-AP antenna jack |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
3 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD A620 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |

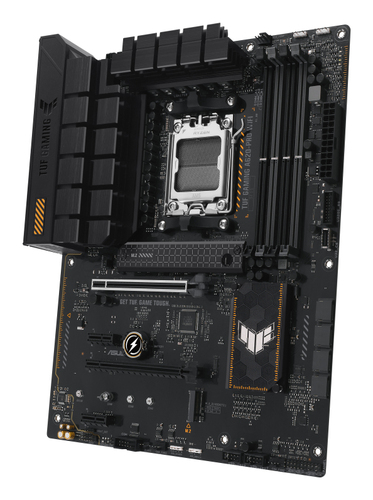

| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
1.36 kg |
| Package height |
273 mm |
| Package depth |
68 mm |
| Package width |
338 mm |
| Weight & dimensions |
| Height |
50 mm |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
| Cables included |
SATA |
| Other features |
| Maximum internal memory |
192 GB |
| Weight |
1.2 kg |
