Tired of crashes when you push your Ryzen 7000 to the limit? You need a board that can keep up without overheating or power drops. The ASUS solution gives you rock-solid power delivery, military-grade parts and a cooling design that stays cool during marathon sessions. With this motherboard youll get stable performance, easy BIOS tweaks and built-in tools to save energy, so your gaming rig runs smooth from the first launch to the final boss.

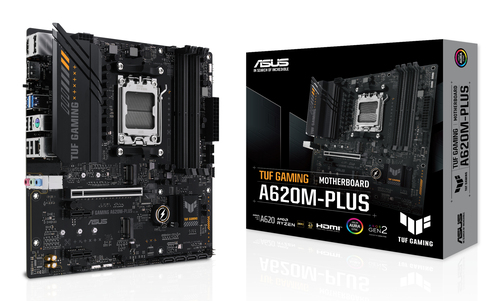

ASUS TUF GAMING A620M-PLUS micro ATX AM5 Motherboard
This micro ATX AM5 motherboard is built for builders who want a reliable platform for AMD Ryzen 7000 CPUs without paying for high-end features. It fits compact cases, supports up to 128 GB DDR5, and provides the connectivity you need for gaming and productivity.
Benefits
- Stable power for long gaming sessions.
- Military-grade TUF components protect against spikes.
- Built-in Power Saving lowers consumption when idle.
- Simple UEFI BIOS makes tweaks easy for beginners.
- Armoury Crate centralizes fan, RGB and audio controls.
- Built with ASUS military-grade components for durability.
Features

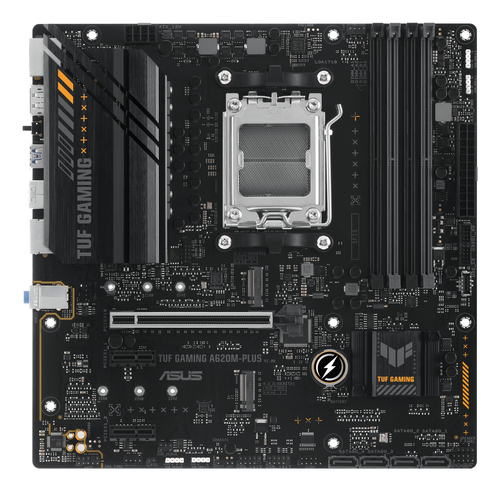

- AMD A620 chipset, Socket AM5.
- Digi+ VRM delivers clean CPU power.
- Six-layer PCB improves heat dissipation.

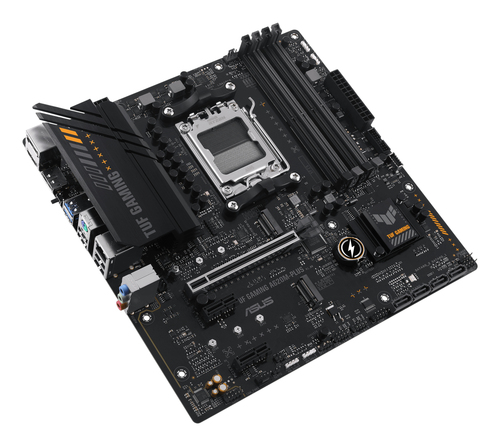

- Dual PCIe 4.0 M.2 slots with RAID support.
- 2.5 Gb Ethernet for fast network.
- 4 SATA III ports and 4 USB 2.0.
- 2 USB 3.2 Gen 1 Type-A ports.

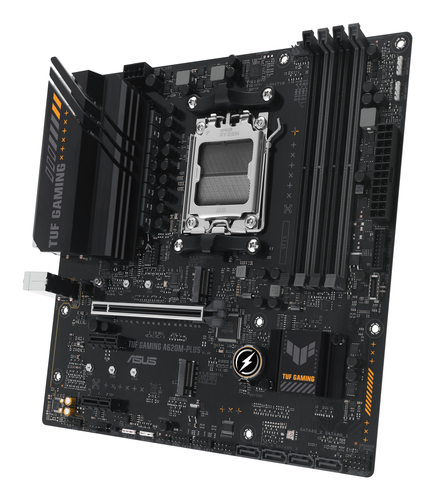

- SafeSlot Core+ reinforced PCIe x16 slot.
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
128 GB |
| Supported memory clock speed (max) |
6400 MHz |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

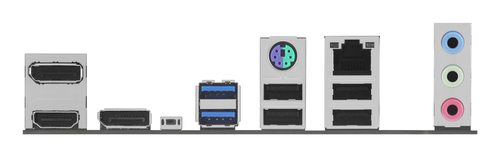

| Rear panel I/O ports |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Cooling type |
Passive |
| Power source type |
ATX |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD A620 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
850 g |
| Package height |
67.5 mm |
| Package depth |
275 mm |
| Package width |
275 mm |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
244 mm |

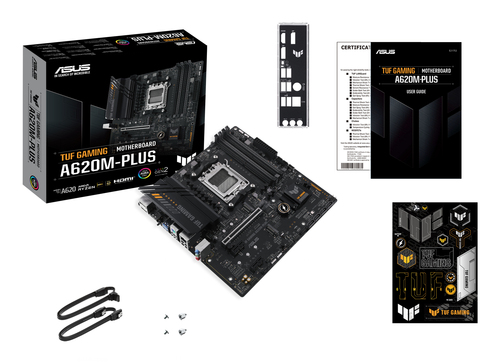

| Packaging content |
| Cables included |
SATA |
| User guide |
Yes |
| Other features |
| Back-to-BIOS button |
Yes |
| Maximum internal memory |
128 GB |
