Youre tired of unstable builds that crash during long gaming sessions, and the ASUS TUF GAMING AMD A620AM-PLUS Micro-ATX Motherboard is the fix you need. It pairs the latest AMD Ryzen processors with a rugged power design, so you get rock-solid performance without constant reboots. No more overheating, no more data loss - just smooth, reliable play from start to finish.
ASUS TUF GAMING AMD A620AM-PLUS Micro-ATX Motherboard
This micro-ATX motherboard is built for gamers and creators who demand durability and steady power. It fits compact cases, supports the newest Ryzen CPUs, and offers enough ports and slots for future upgrades, making it a practical choice for any performance-focused PC.
Benefits
- Stable performance for marathon gaming sessions.
- Military-grade components protect against overheating.
- Built with ASUS-rated durability for tough builds.
- Supports up to 256 GB DDR5 for future upgrades.
- 2.5 Gb Ethernet keeps online play lag-free.
- Simple BIOS lets you tune without hassle.
Features

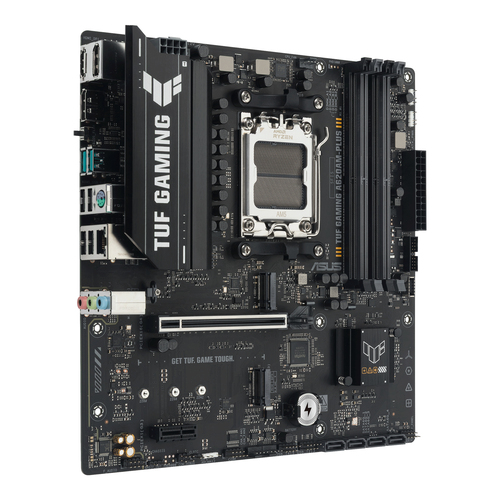

- Socket AM5 for latest Ryzen CPUs.

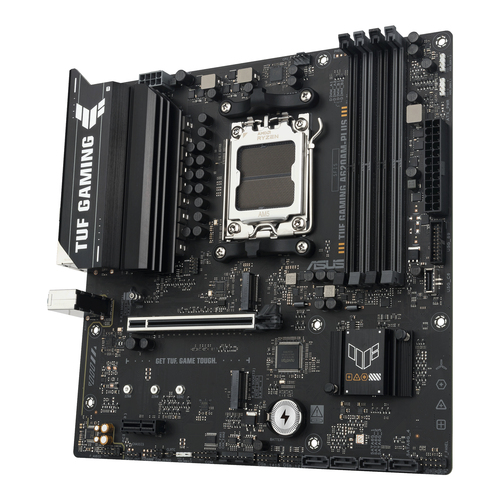

- DDR5-2666/4800 support, four DIMM slots.

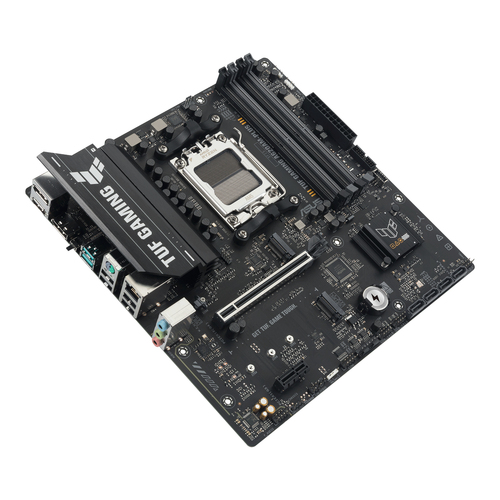

- Dual M.2 PCIe 4.0 slots, 2280 size.

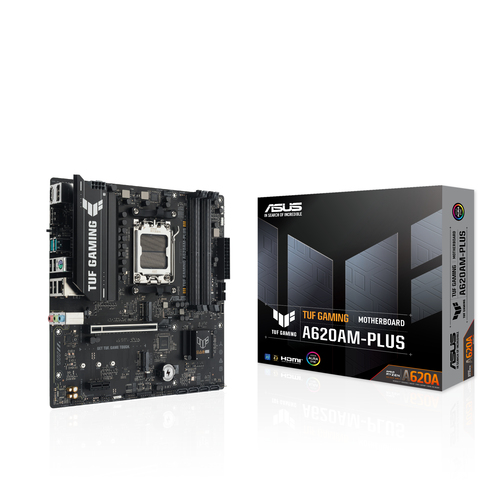

- 2 PCIe 4.0 x16 slot, 1 PCIe 3.0 x1.
- 4 SATA III ports, RAID 0/1/5/10.
- 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0.
- 2.5 Gb Ethernet LAN, no Wi-Fi.
- 3 RGB header pins, customizable lighting.
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
2 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

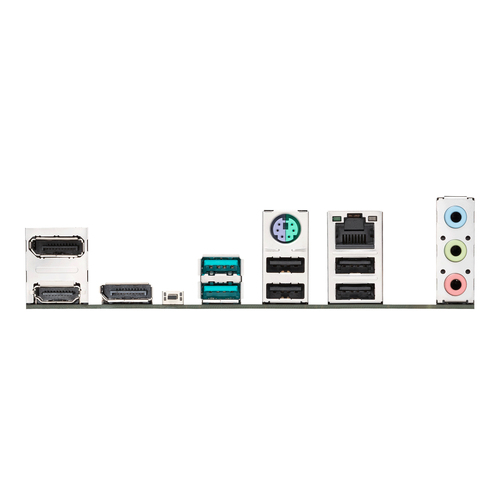

| Rear panel I/O ports |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD A620A |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
920 g |
| Package height |
67.5 mm |
| Package depth |
275 mm |
| Package width |
275 mm |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
244 mm |
| Packaging content |
| Cables included |
SATA |
| Screws included |
Yes |
| Other features |
| Maximum internal memory |
256 GB |
