Ever tried to build a high-performance gaming PC only to hit a wall with unstable power delivery and cramped cable routing? You need a motherboard that can keep up with the latest AMD Ryzen processors while giving you clean wiring and enough juice for power-hungry graphics cards. The ASUS solution packs 600 W of graphics power, Wi-Fi 7 connectivity and DDR5 support into an ATX board that stays cool and reliable.

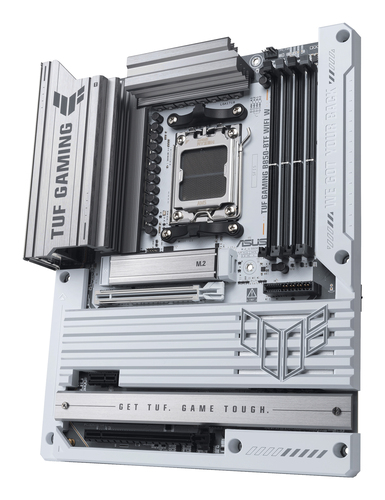

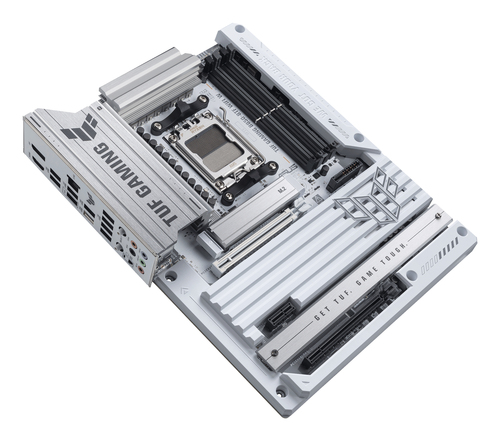

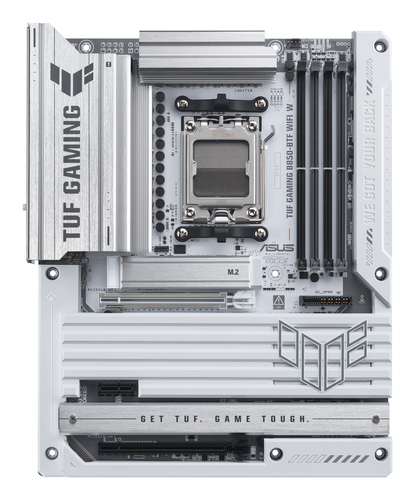

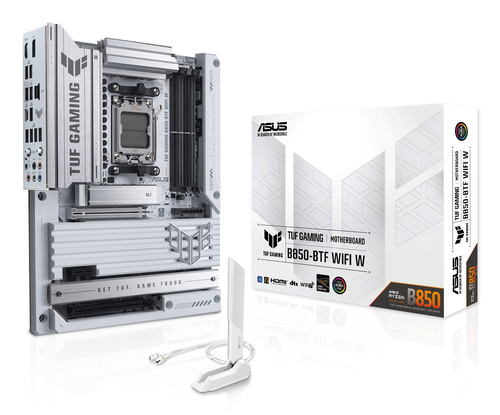

ASUS TUF GAMING B850-BTF WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
This ATX motherboard is built for DIY gamers who want the newest AMD B850 chipset, DDR5 memory up to 8000 MHz and robust Wi-Fi 7 networking. It fits standard cases and provides the connectors you need for storage, fans and RGB lighting without extra clutter.
Benefits
- Stable power delivery eliminates crashes during intense sessions.

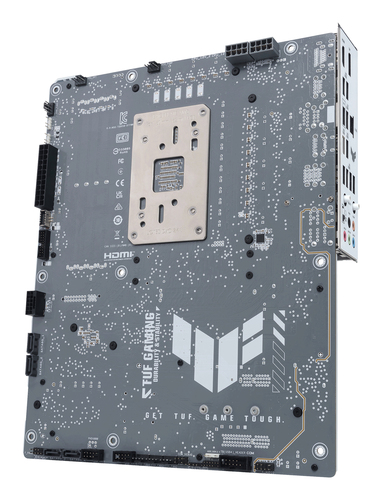

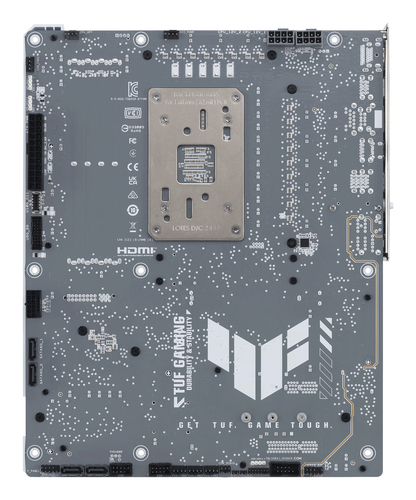

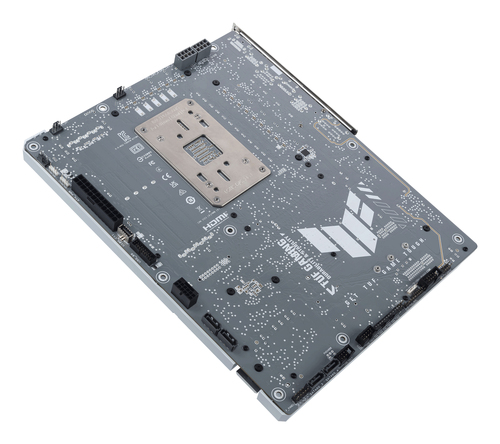

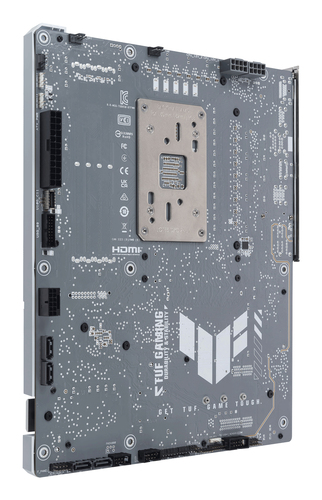

- Clean underside cable routing keeps your build tidy and improves airflow.
- You get ASUS-validated stability for long gaming sessions.
- Wi-Fi 7 and 2.5 Gb Ethernet ensure lag-free online play.
- DDR5 support lets you reach high frame rates with less latency.
- Four SATA III and three M.2 slots give plenty of storage options.
Features
- Supports AMD Ryzen 7000-9000 on AM5 socket

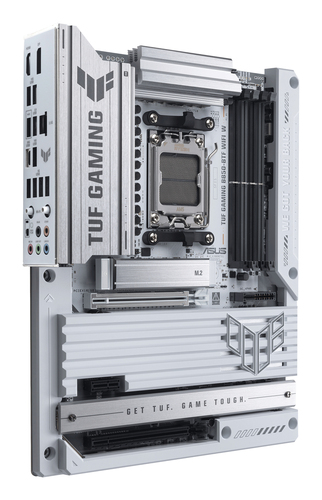

- DDR5 up to 8000 MHz, 256 GB capacity
- PCIe 5.0 x16 slot for next-gen graphics
- Three M.2 slots, first PCIe 4.0 x4
- 2.5 Gb Ethernet and Wi-Fi 7
- Four SATA III ports, USB 3.2 Gen 2x2 Type-C
- Six fan headers, one water-pump connector
- Passive cooling with reinforced TUF components
Specifications
| Processor |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| Number of water pump connectors |
1 |
| Thunderbolt headers |
1 |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
4 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

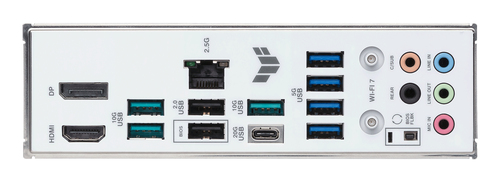

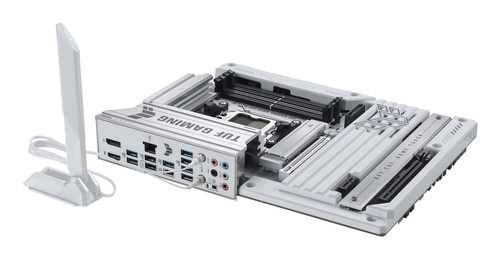

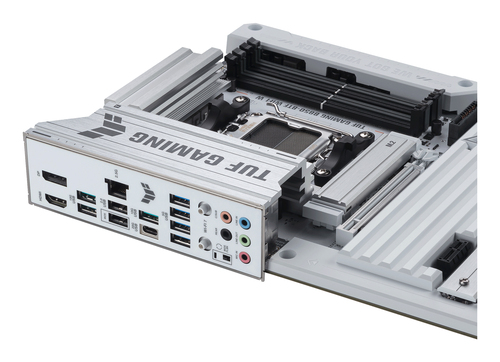

| Rear panel I/O ports |
| WiFi-AP antenna jack |
2 |
| Microphone in |
Yes |
| Line-in |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 |
| Cooling type |
Passive |
| Product colour |
White |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1220P |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
22110 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
2.04 kg |
| Package height |
68 mm |
| Package depth |
273 mm |
| Package width |
353 mm |
| Weight & dimensions |
| Height |
57 mm |
| Depth |
244 mm |
| Width |
305 mm |

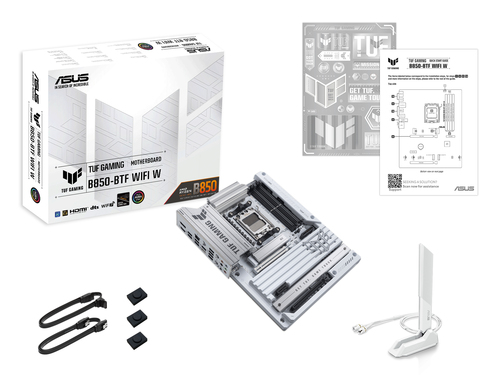

| Packaging content |
| Antenna included |
Yes |
| Other features |
| Maximum internal memory |
256 GB |
| Weight |
1.44 kg |
| mSATA ports quantity |
0 |
