Your new Ryzen 7000 CPU throttles under heavy loads, and youre fed up with crashes and lag. The ASUS TUF GAMING B850M-E WIFI AM5 DDR5 PCIE 5.0 mATX Motherboard was built to give you rock-solid power and stable connectivity, so you can game or create without interruptions. It delivers a reinforced VRM, DDR5 support up to 8000 MHz and Wi-Fi 6E, turning unstable performance into smooth, reliable operation.

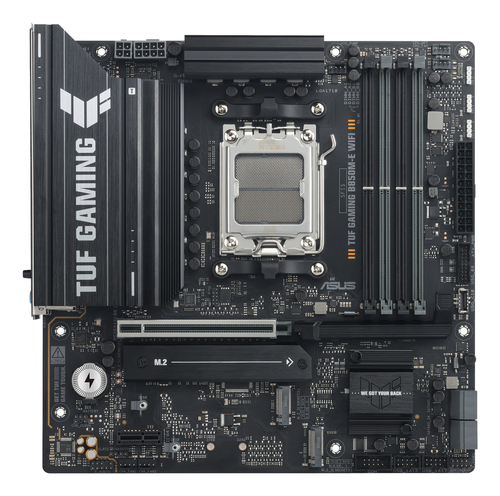

ASUS TUF GAMING B850M-E WIFI AM5 DDR5 PCIE 5.0 mATX Motherboard
The ASUS TUF GAMING B850M-E WIFI AM5 DDR5 PCIE 5.0 mATX Motherboard targets builders who need a durable platform for AMDs latest AM5 processors. It fits compact cases, offers PCIe 5.0 for graphics and NVMe, and includes a pre-mounted I/O shield for quick assembly.
Benefits
- Stable power for high-core-count CPUs.
- DDR5 speeds up to 8000 MHz for faster workloads.
- Wi-Fi 6E and 2.5 Gb Ethernet keep online gaming lag-free.
- PCIe 5.0 slot delivers future-proof graphics bandwidth.
- Easy M.2 installation with Q-Latch saves time.
- Pre-mounted I/O shield simplifies the build process.
Features
- 8+2+1 power stages, 80A each.
- Eight-layer PCB enhances signal integrity.
- ProCool 8+4 pin connectors for secure PSU link.
- Supports AMD EXPO and AEMP memory profiles.

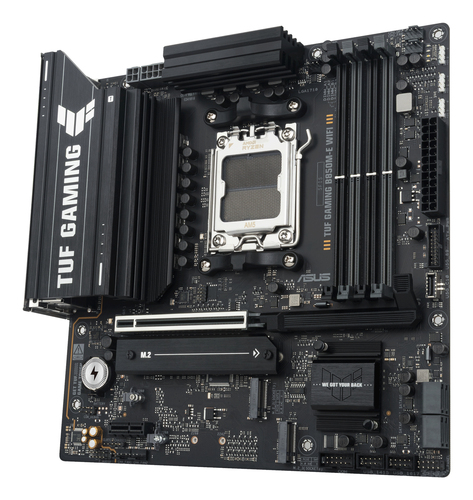

- One PCIe 5.0 M.2 slot, 128 Gbps speed.
- Dual-channel DDR5, up to 256 GB capacity.

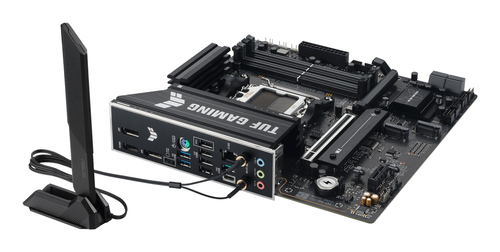

- Integrated Wi-Fi 6E and Bluetooth 5.3.
- Three addressable RGB headers for Aura Sync.
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of COM connectors |
1 |
| Number of water pump connectors |
1 |
| Number of EPS power connectors (8-pin) |
1 |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
2 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

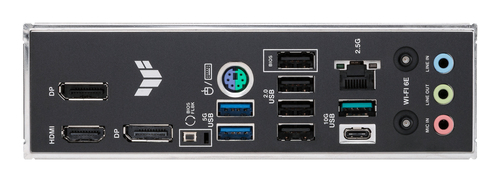

| Rear panel I/O ports |
| WiFi-AP antenna jack |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Cooling type |
Passive |
| Power source type |
ATX |
| Product colour |
Grey |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
3 |

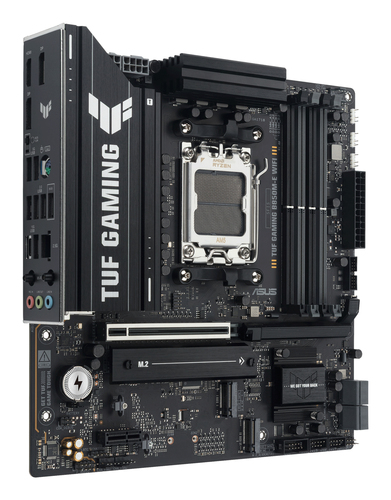

| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
1.7 kg |
| Package height |
67.4 mm |
| Package depth |
275 mm |
| Package width |
275 mm |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
244 mm |

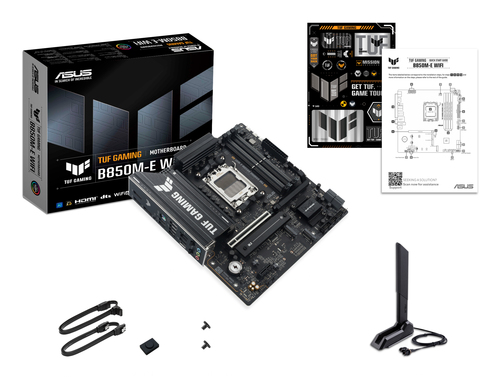

| Packaging content |
| Antenna included |
Yes |
| Cables included |
SATA |
| Screws included |
Yes |
| Other features |
| Maximum internal memory |
256 GB |
| Quick installation guide |
Yes |
| Weight |
1.01 kg |
