Tired of industrial PCs that stall when your AI models grow? The Axiomtek IPC964A 4-slot Industrial system with LGA1700 Socket 14th/13th/12th Gen is built for demanding edge AI, machine-vision and automation tasks. It gives you the power and reliability you need to keep production lines running without costly downtime.

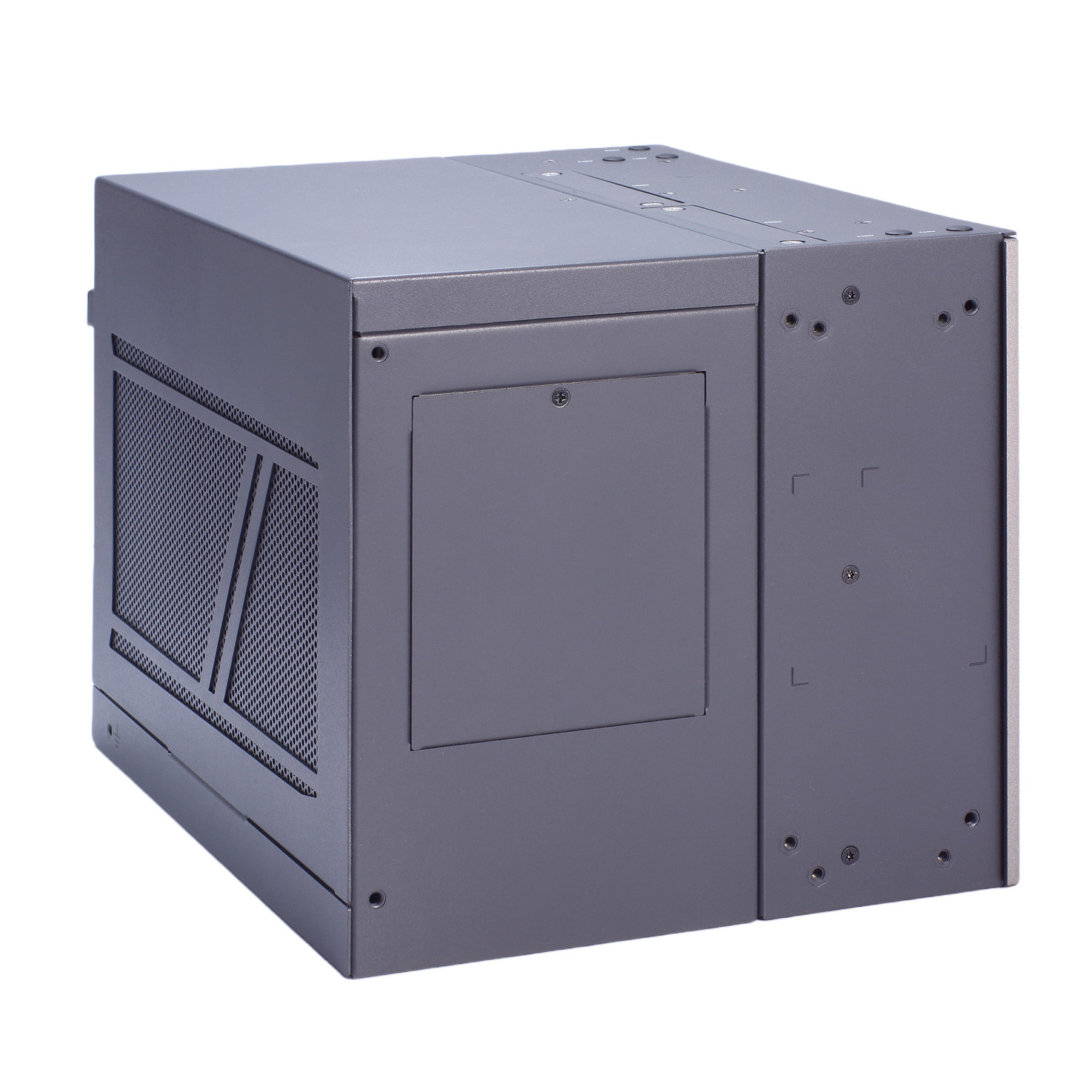

Axiomtek IPC964A 4-slot Industrial system with LGA1700 Socket 14th/13th/12th Gen
Many factories struggle with computers that cannot handle the latest Intel Core processors or lack enough expansion slots. When a system cannot keep up, data bottlenecks cause missed inspections and slower output. The IPC964A solves this by offering a robust LGA1700 socket, up to four PCIe slots, and support for 14th-gen Intel CPUs. You get a single board that delivers desktop-class speed while surviving harsh industrial environments.
Benefits
- High-performance CPUs keep AI inference fast, reducing cycle time.
- Four PCIe slots let you add vision cards, networking, or storage adapters.
- Rugged design meets EN 61000-6-2 standards, so it works in noisy factories.
- Intelligent power control saves energy and protects equipment during power spikes.
- Wide temperature range (-20 C to +60 C) ensures operation in extreme conditions.
Usages
Use the IPC964A in a smart-factory line to run real-time defect detection with high-resolution cameras. Deploy it in a warehouse robot to process navigation data and control motors. Install it in a remote monitoring station where 5G or Ethernet connectivity sends alerts instantly. It also fits well in test-and-measurement rigs that need fast data capture and reliable storage.
Key Features
- LGA1700 socket supports 14th/13th/12th Gen Intel Core i9/i7/i5/i3 up to 65 W.
- Intel Q670E chipset with RAID support for data redundancy.
- 262-pin DDR5 4800 MHz SO-DIMM, up to 96 GB memory.
- Six USB 3.2 Gen 2 Type-A ports and one internal USB 2.0 header.
- Two 2.5 in. HDD/SSD bays plus an M.2 2280 PCIe Gen 4 slot.
- One PCIe x16 Gen 4, one PCIe x8 (x4 signal) Gen 3, and two PCIe x4 Gen 4 slots.
- Dual LAN: 2.5 GbE and 1 GbE with Intel AMT for remote management.
- Optional 5G module and extension I/O for extra COM, digital I/O, or USB.
- TPM 2.0 security chip and multiple LED indicators for status monitoring.
- Power input 18-36 VDC with remote ignition control and power-on switch.
Specifications
| CPU |
- 14th/13th/12th gen Intel® Core™ processor, up to 65W
|
| Chipset |
|
| System Memory |
- 262-pin DDR5 4800 non-ECC SO-DIMM, up to 96GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485 (default RS-232)
- More COM ports are available from extension I/O modules
|
| USB |
- 6 x USB 3.2 Gen 2 (10G) Type-A
- 1 x USB 2.0 (internal, up to 30 mm) 180D Type-A
- More USB ports are available from extension I/O modules
|
| Ethernet |
- 1 x 2.5GbE LAN (Intel® I226-V)
- 1 x 1GbE LAN with Intel® AMT (Intel® I219-LM)
- More LAN ports are available from extension I/O modules
|
| Display |
- 1 x DisplayPort++ with 4096 x 2160 resolution supported
- 1 x HDMI with 4096 x 2160 resolution supported
- 1 x DVI-D with 1920 x 1200 resolution supported
|
| Digital I/O |
- Available from extension I/O modules
|
| Audio |
- 1 x 3.5mm jack for Mic-in and Line-out
|
| Storage |
- 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
- 1 x M.2 Key M 2280 socket (PCIe x4 Gen 4)
|
| Expansion |
- UP to 350W power for add-in card, 1 x USB 2.0 (180D type A)
- 1 PCIe x16 Gen 4 + 1 PCIe x8 (x4 signal) Gen 3 + 2 PCIe x4 Gen 4
- 1 x full-size PCI Express Mini Card slot (USB & PCIe interface) with SIM slot
|
| Others |
- TPM 2.0
- 1 x HDD/SSD access LED
- 3 x User's LED
- 1 x Switch for power on/off with LED (default ATX)
|
| Power |
- Input: 18 to 36 VDC
- 1 x Switch for power on/off with LED (default ATX)
- 1 x 4-pin TB (5.08 mm) for DC input
- 1 x 4-pin TB (5.08 mm) for ignition control, remote power and remote LED
|
| Vibration |
- IEC 60068-2-64 (with SSD: 1Grms, random, 5 to 500 Hz)
- MIL-STD-810H, Method 514.8, Category 20
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
- MIL-STD-810H, Method 516.8, Procedure I
|
| Construction |
- Aluminum extrusion heavy-duty cold-rolled steel
|
| IP Rating |
|
| Operating Temperature |
- -20°C to +60°C with 14th/13th/12th Gen Intel® Core™ processor and industrial wide-temp SSD, 0.7m/s airflow
|
| Relative Humidity |
- 10% to 90% relative humidity, non-condensing
|
Dimensions
(W x H x D) |
- 205 x 192 x 260 mm (8.07" x 3.62" x 10.24")
|
| Weight (net/gross) |
- 5.6 kg (12.35 lb)/6.7 kg (14.77 lb)
|
| Software Support |
|
| EOS Support |
- Win 10, Win 11, Win 10 IoT, Win 11 IoT, and Linux OS
|
| Certifications |
- CE (EN 61000-6-4/EN 61000-6-2)
- FCC
|
