Imagine a night when a break-in occurs and you have no clear view of what is happening. The Axis 02132-001 Indoor Outdoor Digital PTZ IP Security Camera Wired White Ceiling gives you crystal-clear 1080p video, even in rain or darkness. It is built for tough places and can swivel to watch every angle. If you worry about blind spots, weak footage, or expensive installations, this camera solves those issues with one simple device.

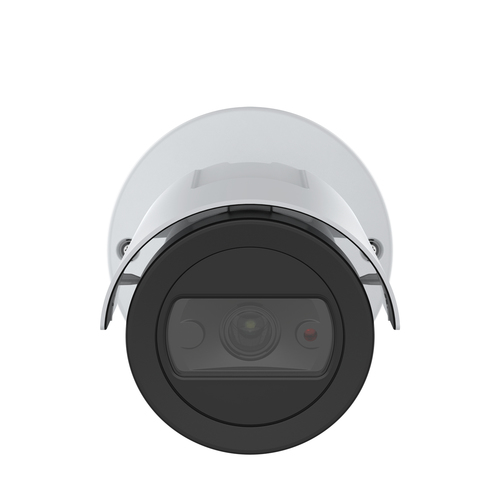

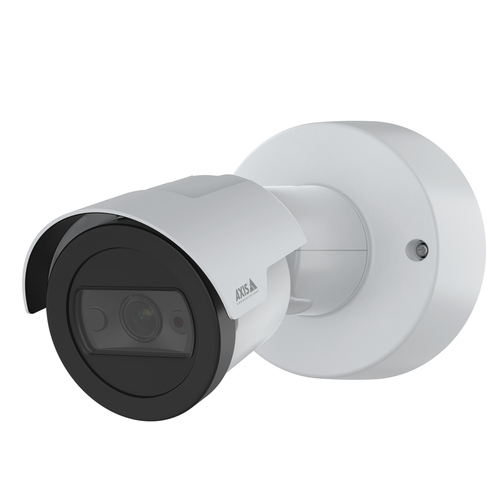

Axis 02132-001 Indoor Outdoor Digital PTZ IP Security Camera Wired White Ceiling
Many businesses and homes suffer from cameras that cannot handle rain, dust or sudden light changes. When a camera fails, you lose evidence and peace of mind. This Axis model removes those worries by offering an IK08-rated housing that survives vandalism, an IP66/67 seal that keeps water out, and digital PTZ that lets you zoom and pan without moving the unit. The built-in deep learning analytics can tell you if a person or a vehicle is present, so you get instant alerts instead of watching endless footage. All of this runs over a single PoE cable, so installation stays cheap and tidy.
Benefits
- Clear 1080p video lets you identify faces and license plates.
- Weather-proof design works in rain, snow or dust without failing.
- Digital PTZ lets you zoom in on a detail without moving the camera.
- Built-in analytics sends you an email as soon as a person or car appears.
- PoE power means only one cable is needed, saving time and cost.
Usages
Install the camera on a ceiling in a retail store to watch aisles and entrances, or mount it on a wall of a warehouse to monitor loading docks. It works equally well for a school hallway, a parking garage, or a residential front porch. Because it can see day and night, you can rely on it for 24-hour surveillance. The PTZ function lets a security guard focus on a suspicious person from a control room, while the analytics automatically flag any movement after hours.
Key Features
- 1080p HDTV resolution at 30 fps.
- 2 MP CMOS sensor with 1/19000-1/5 s shutter speed.
- Wide Dynamic Range and IR cut filter for balanced day/night images.
- 20 m infrared night vision with 855 nm LEDs.
- Digital PTZ with optical zoom capability.
- IK08 vandal resistance and IP66/67 weather sealing.
- PoE power up to 12.9 W, no separate power supply.
- 1 TB internal flash storage and microSD slot for local recording.
- H.264, H.265 and M-JPEG compression options.
- AES-256 encryption, tamper alarm and email alerts.
Specifications
| Performance |
| Certification |
CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK08 |
| International Protection (IP) code |
IP66, IP67 |
| Housing material |
Aluminium, Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
| Camera shutter speed |
1/19000 - 1/5 s |
| Minimum illumination |
0.17 lx |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
855 nm |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Frame rate |
30 fps |
| Video recording |
Yes |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265, M-JPEG |
| Video formats supported |
H.264, H.265, M-JPEG |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Supported network protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
256-bit AES-XTS, EAP-TLS |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
12.9 W |
| Power consumption (typical) |
5 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-30 - 50 °C |
| Weight & dimensions |
| Weight |
491 g |
| Length |
170 mm |
| Diameter |
10.1 cm |
| Depth |
170 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Manual |
Yes |
| Number of cameras |
1 |
| Other features |
| Doesn't contain |
BFR, PVC |
| Maximum resolution |
1920 x 1080 pixels |
