Tired of blurry footage that lets intruders slip by? The Axis 02224-001 Indoor Outdoor IP Digital PTZ Security Camera Wired Pro WallMount gives you crystal-clear video day and night. This wired dome camera is built for both indoor and outdoor use, so you can protect a storefront, a parking lot, or a warehouse with one device. Its 4 MP sensor, Lightfinder 2.0 and Forensic WDR capture detail even in low light or harsh sun. If you need a camera that never misses a moment, this is the answer.

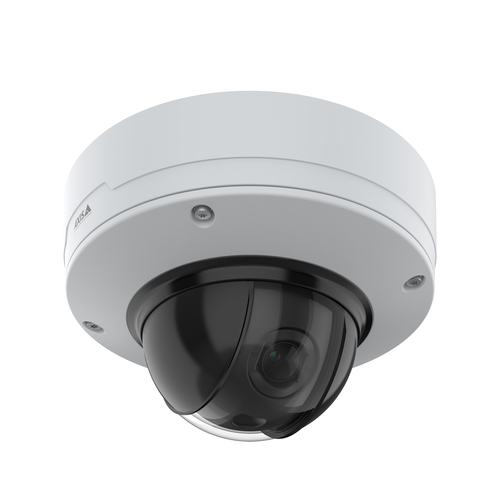

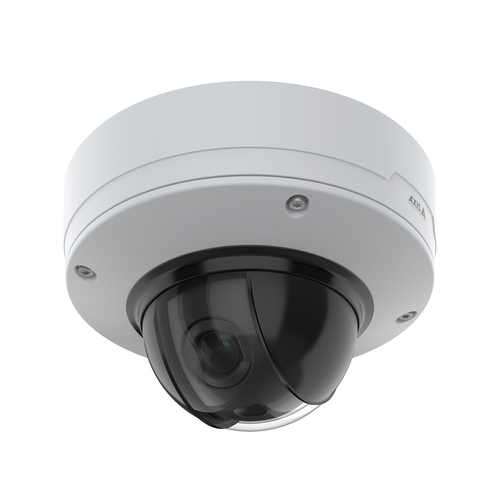

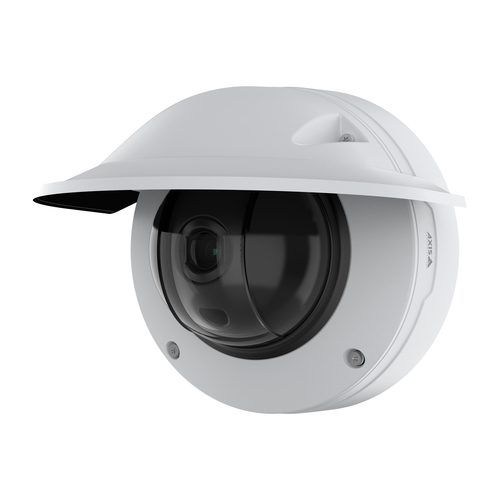

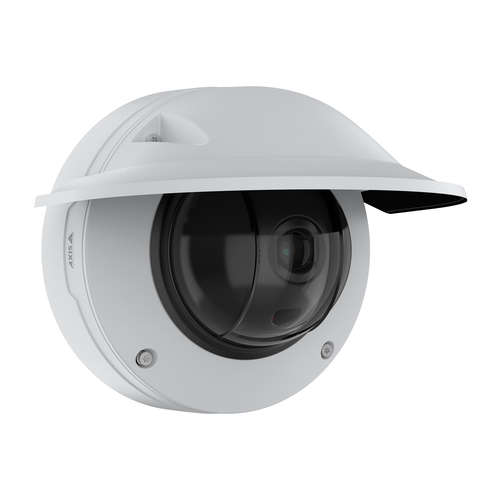

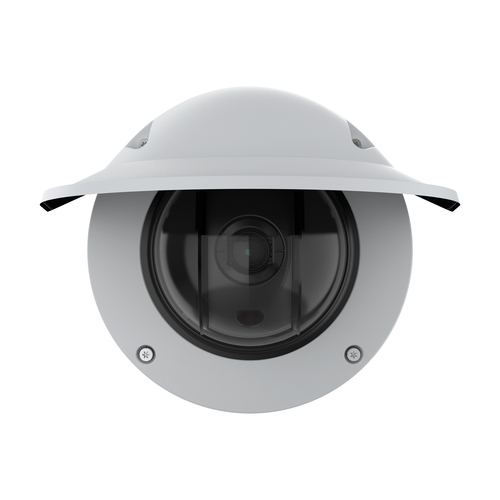

Axis 02224-001 Indoor Outdoor IP Digital PTZ Security Camera Wired Pro WallMount
Many small businesses and property managers struggle with cameras that lose focus when the light changes or when weather attacks the lens. A missed detail can mean a lost claim or a safety risk. Axis solves this by combining a sealed IP66 dome with OptimizedIR and a built-in IR shield, so reflections never blur the picture. The digital PTZ lets you zoom in 2.6 and pan across a wide area without moving the mount. All of this runs over PoE, so installation stays simple and reliable. The camera also supports multiple languages, making configuration easy for global teams.
Usages of Axis
Use it at a retail entrance to watch every customer and deter shoplifting. Install it on a loading dock to monitor trucks arriving after dark. Mount it on a school perimeter to capture activity across a large fence. It works on a ceiling or wall, making it ideal for office lobbies, parking structures, and remote storage sites. The cameras built-in microphone also records sound, adding another layer of evidence. Because it records to a microSD card, you keep a backup even if the network goes down.
Benefits
- Clear images in any light, so you can identify faces and plates.
- Remote PTZ control lets you follow a moving target without climbing a ladder.
- PoE power reduces wiring costs and keeps the camera running during power cuts.
- Built-in tamper alarm alerts you instantly if someone tries to disable the unit.
- Secure video storage with TPM encryption protects footage from hackers.
Key Features
- 4 MP progressive scan sensor (2688 1512) for sharp detail.
- Lightfinder 2.0 provides color images at 0.08 lx.
- Forensic WDR balances bright and dark areas in a single frame.
- OptimizedIR with IR-shielded dome eliminates infrared glare.
- 2.6 optical zoom and 175 rotation for flexible coverage.
- Digital PTZ with tilt -43 to 80 and pan control.
- IP66 weatherproof housing and IK10+ vandal resistance.
- PoE (IEEE 802.3at) power up to 23 W.
- On-board 8 GB flash plus 2 GB RAM for local recording.
- Axis Edge Vault and TPM 2.0 for advanced cybersecurity.
- Variable Bit Rate streaming for efficient bandwidth use.
Specifications
| Performance |
| Certification |
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10+ |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/91000 - 1 s |
| Tilt angle range |
-43 - 80° |
| Angle of rotation |
175° |
| Minimum illumination |
0.08 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Optical zoom |
2.6x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Video recording |
Yes |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1512 pixels |
| Audio |
| Audio detection |
Yes |
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Network |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8194 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
802.1x RADIUS |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
23 W |
| Power consumption (typical) |
9 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-50 - 60 °C |
| Weight & dimensions |
| Weight |
2.1 kg |
| Diameter |
18.4 cm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2688 x 1512 pixels |
