Many businesses and homes struggle with blurry video, missed details, and cameras that cannot work in dark rooms. When a camera fails to show a clear picture, safety decisions become guesswork and valuable evidence can be lost. The Axis 02329-001 Indoor Digital PTZ IP Camera Wired Multilingual EN Compliant gives you sharp images, reliable night vision, and smart analytics so you can see exactly what happens, any time of day.

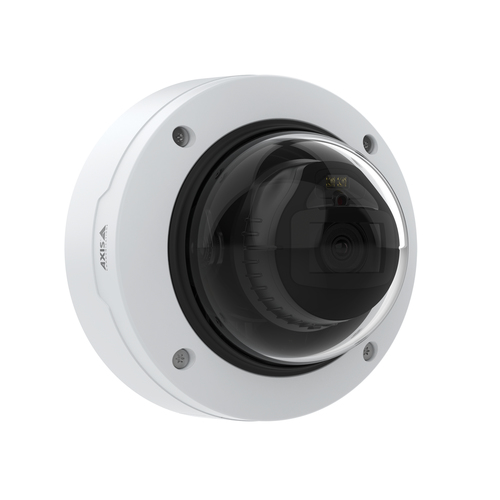

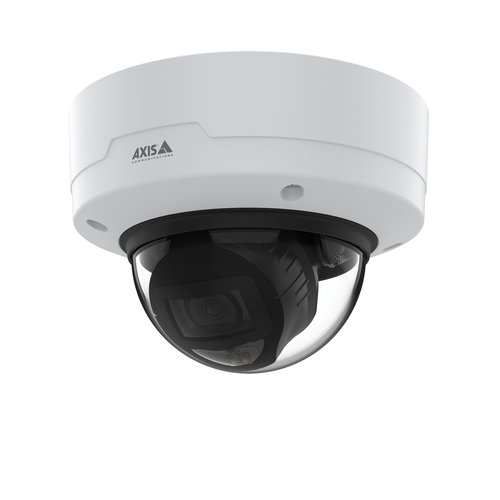

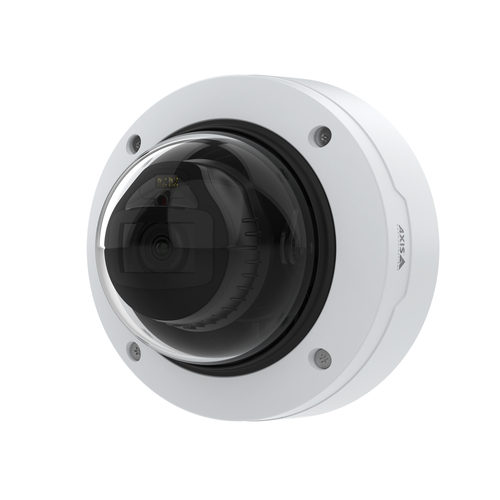

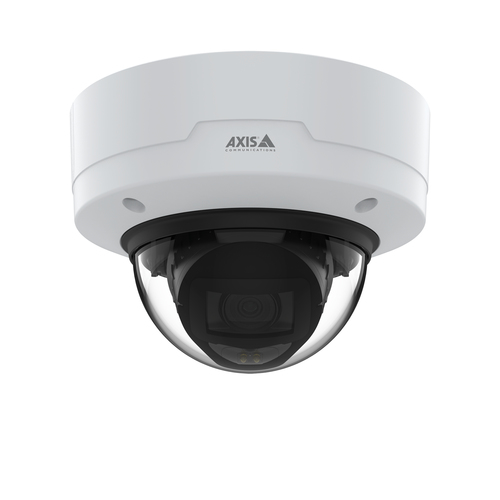

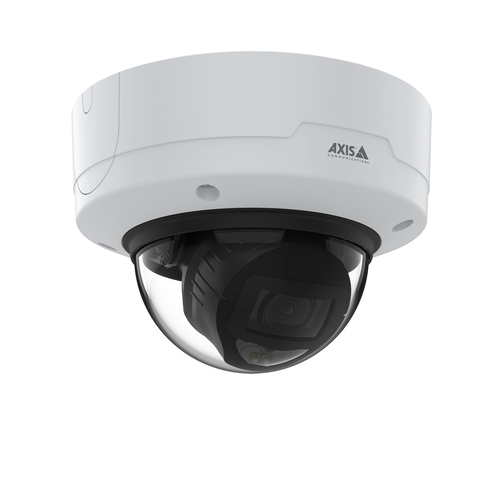

Axis 02329-001 Indoor Digital PTZ IP Camera Wired Multilingual EN Compliant with Axis
This camera is a powerful indoor security tool that can pan, tilt and zoom digitally. It is built for places that need constant monitoring, such as offices, retail stores, schools, and warehouses. If you have trouble spotting a person or a vehicle in a crowded area, this Axis camera uses deep-learning analytics to detect and classify humans and vehicles automatically. The result is a camera that not only records but also helps you act faster.
Usages
Install the camera on a ceiling or wall to watch a lobby, reception desk, or production floor. Use it in a classroom to record lectures and keep an eye on entrances. It works well in a parking garage where you need to see cars at night. The multilingual interface lets operators in many countries set up the system without language barriers. Because it is wired and PoE, you get a stable connection without extra power adapters.
Benefits
- Clear images in any light help you identify faces and license plates.
- Automatic human and vehicle detection reduces the time spent watching video.
- Built-in cybersecurity protects your footage from hackers.
- Easy installation with PoE means less cabling and faster setup.
- Supports 12 languages, so staff worldwide can operate the camera.
Key Features
- Lightfinder 2.0 for bright images in low light.
- Forensic WDR captures detail in high-contrast scenes.
- OptimizedIR extends night vision up to 40 m.
- Digital PTZ with 190 pan and 80 tilt range.
- 5 MP sensor delivers up to 2592 1944 resolution.
- H.264 and H.265 compression saves bandwidth.
- Audio detection and multiple audio formats supported.
- IK10 vandal-proof housing and IP52 rating.
- Active tampering alarm and 256-bit AES-XTS encryption.
- PoE power up to 9 W simplifies wiring.
Specifications
| Performance |
| Certification |
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP52 |
| Housing material |
Polycarbonate (PC) |
| LED indicators |
Yes |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/33500 - 1/5 s |
| Pan range |
-190 - 190° |
| Tilt angle range |
-10 - 80° |
| Minimum illumination |
0.13 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
3 - 8 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
| Bit rate |
Configurable bit rate |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Gain control type |
Auto |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video recording |
Yes |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
5 MP |
| Maximum resolution |
2592 x 1944 pixels |
| Audio |
| Audio detection |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Network |
| Quality of Service (QoS) support |
Yes |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8192 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Built-in SSD |
No |
| Built-in HDD |
No |
| Ports & interfaces |
| Terminal block port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail, Text alert message |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Security algorithms |
256-bit AES-XTS, EAP-TLS |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
9 W |
| Power consumption (typical) |
6.4 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Weight |
800 g |
| Diameter |
14.9 cm |
| Height |
107 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Doesn't contain |
BFR, PVC |
| Maximum resolution |
2592 x 1944 pixels |
