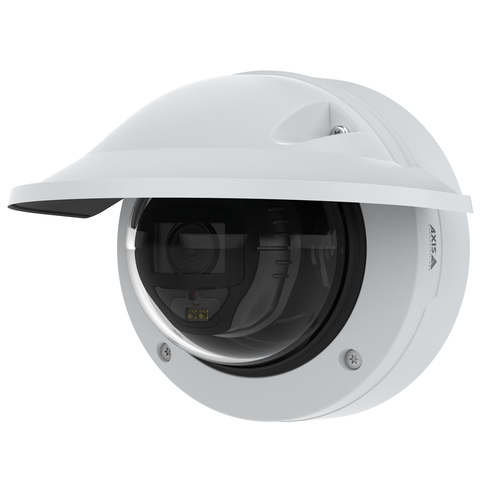

Axis 02330-001 Outdoor Digital PTZ IP Camera Wired Multilingual EN Compliant mounted on parking lot ceiling view
Axis 02330-001 Outdoor Digital PTZ IP Camera Wired Multilingual EN Compliant mounted on parking lot ceiling view

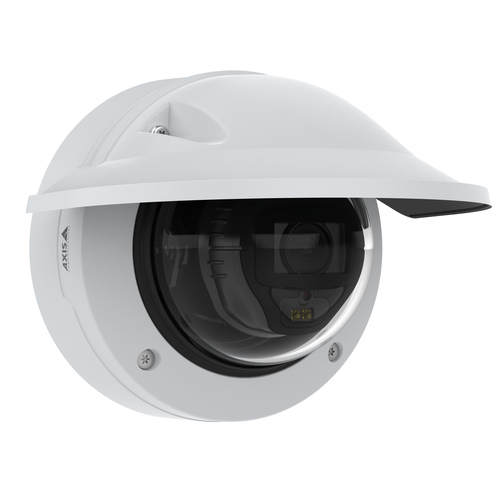

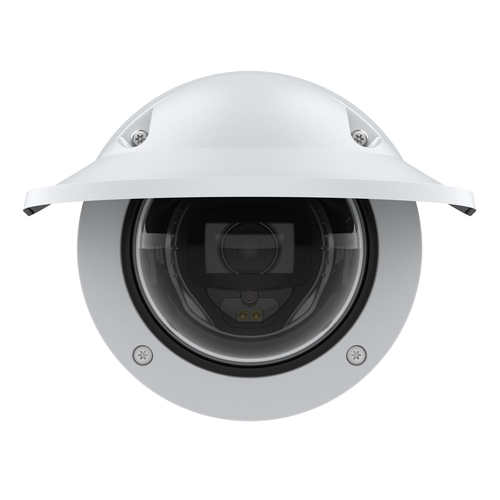

Axis 02330-001 PTZ IP Camera showing pan, tilt, and zoom functionality for wide outdoor coverage
Axis 02330-001 PTZ IP Camera showing pan, tilt, and zoom functionality for wide outdoor coverage

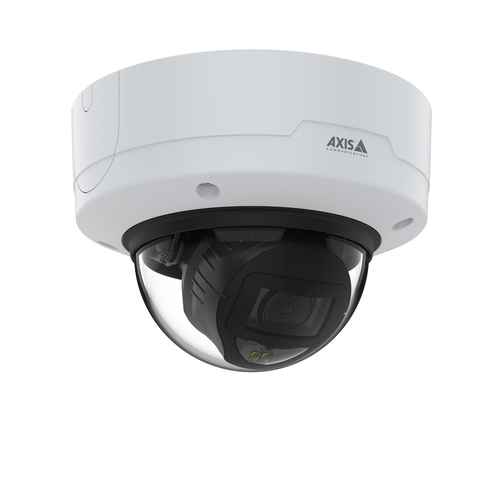

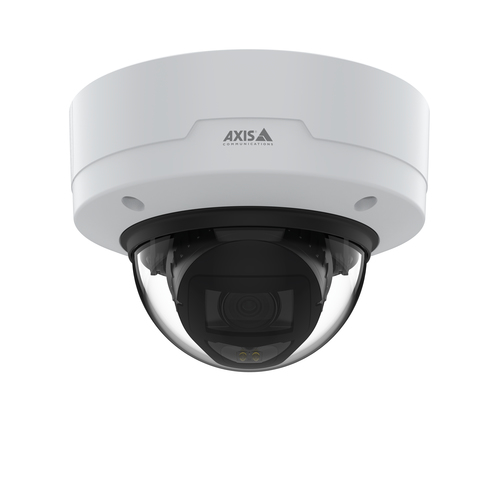

Axis 02330-001 PTZ Camera with Lightfinder 2.0 and OptimizedIR clear night surveillance
Axis 02330-001 PTZ Camera with Lightfinder 2.0 and OptimizedIR clear night surveillance
Logo

Axis 02330-001 Outdoor Digital PTZ IP Camera Wired Multilingual EN Compliant

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-166

MPN #: 02330-001

Keeping a property safe is hard when you cannot see what happens after dark or when a camera is easy to tamper with. If you miss a critical event, you lose evidence and peace of mind. The Axis 02330-001 Outdoor Digital PTZ IP Camera Wired Multilingual EN Compliant gives you clear video, strong protection, and easy language options, so you can watch and act with confidence. It works in any weather, records in high resolution, and sends alerts directly to your phone.



Axis 02330-001 Outdoor Digital PTZ IP Camera Wired Multilingual EN Compliant with Axis

Imagine a camera that never blinks, even in total darkness, and tells you exactly who is moving. This device is a rugged outdoor PTZ IP camera that captures sharp 5 MP images and can zoom, pan and tilt to follow activity. You need it when a single blind spot could let a thief slip by or when you manage multiple sites and need one camera that speaks your language. Axis delivers the power and reliability you expect from a professional security system.



Usages

Use this camera to watch a parking lot where cars come and go at any hour. Install it on a warehouse roof to see every loading dock and catch any unauthorized entry. Place it at a school entrance to monitor students and staff safely. Retail stores can rely on it to protect merchandise and detect shoplifting. Because it supports twelve languages, security teams around the world can configure it without translation hurdles.



Benefits
    • Clear images day and night give you reliable evidence when you need it most.
    • Digital PTZ lets you follow moving objects without installing multiple cameras.
    • Built-in cybersecurity stops hackers from accessing your video feed.
    • Multilingual interface reduces setup time for international teams.
    • IP66 and IK10 ratings protect the camera from rain, dust, and vandalism.



Key Features
    • Lightfinder 2.0 for bright images in low light.
    • Forensic WDR to keep details in bright and dark areas.
    • OptimizedIR provides clear night vision up to 40 m.
    • Deep learning unit enables human and vehicle classification.
    • Pan range -190 to 190 and tilt -10 to 80 for full coverage.
    • 5 MP sensor with 2592 1944 maximum resolution.
    • PoE power simplifies wiring and reduces installation cost.
    • Audio detection adds sound alerts to visual events.
    • Privacy masking lets you hide sensitive zones.
    • Integrated microSD slot up to 32 GB for local storage.



Specifications
Performance
Certification EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages 12
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
PTZ modes Digital PTZ
Connectivity technology Wired
Placement supported Outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP66
Housing material Polycarbonate (PC)
Product colour White
Mounting type Ceiling/wall
Form factor Dome
Camera
Camera shutter speed 1/33500 - 1/5 s
Pan range -190 - 190°
Tilt angle range -10 - 80°
Angle of rotation 190°
Minimum illumination 0.13 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Number of sensors 1
Sensor type CMOS
Lens system
Normal focusing range 1 m
Focal length range 3 - 8 mm
Zoom capability Yes
Number of lenses 1
Night vision
Infra-red wavelength 850 nm
LED type IR
Night vision distance 40 m
Night vision Yes
Video
Bit rate control Variable Bit Rate (VBR)
Flip & mirror Yes
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Privacy masking Yes
Smart IR Yes
Text caption overlay Yes
Gain control type Auto
Video streaming Yes
Frame rate 30 fps
Video recording Yes
Video compression formats H.264, H.265, M-JPEG
Total megapixels 5 MP
Maximum resolution 2592 x 1944 pixels
Audio
Audio detection Yes
Network
Quality of Service (QoS) support Yes
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Internal memory 2048 MB
Flash memory 8192 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Terminal block port Yes
Ethernet LAN (RJ-45) ports 1
Security
Active tampering alarm Yes
Alert notification type E-mail
HTTPS encryption Yes
IP address filtering Yes
Video motion detection Yes
Password protection Yes
Power
Power consumption (max) 12.1 W
Power consumption (typical) 6.4 W
Power source type PoE
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -40 - 50 °C
Weight & dimensions
Weight 900 g
Diameter 14.9 cm
Height 107 mm
Supplier features
Manufacturer Axis
Packaging content
Manual Yes
Drilling template included Yes
Number of cameras 1
Other features
Maximum resolution 2592 x 1944 pixels
