Tired of slow video feeds and missed alerts? The Axis 02692-003 Workstation gives you fast, reliable performance for security and surveillance tasks. It runs Windows 10 IoT and comes ready with Axis Camera Station client, so you can watch live video, record, and manage cameras without extra setup. If your current PC lags or crashes, this workstation solves the problem and keeps your site safe. It also includes the Axis Recorder Toolbox installer for quick configuration.

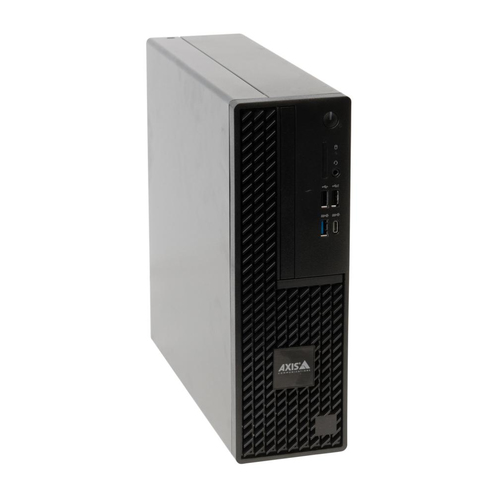

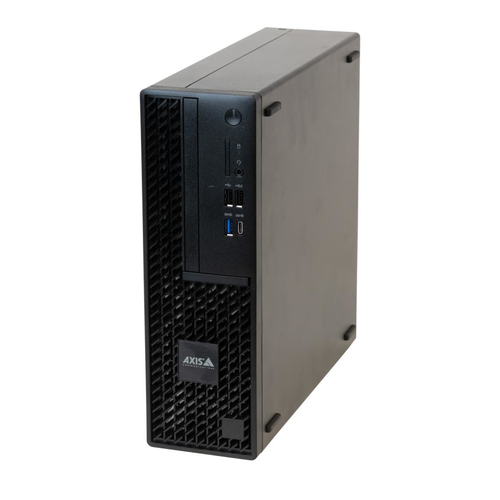

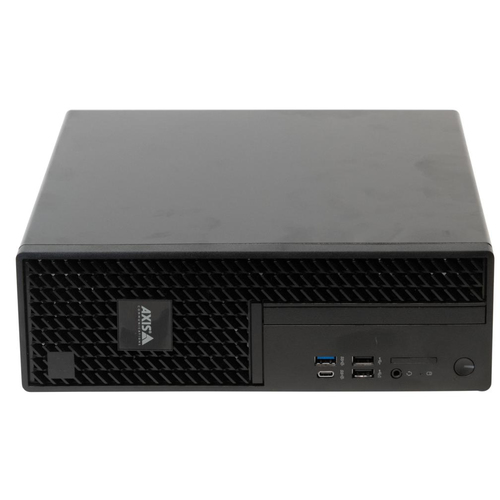

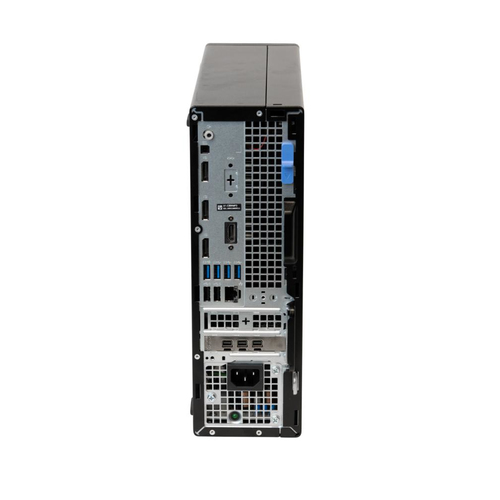

Axis 02692-003 Workstation 16GB RAM 256GB SSD Windows 10 IoT
Many small businesses and remote sites need a computer that can handle several high-definition streams at once. When the machine cannot keep up, video freezes and important events are lost, which can cost time and money. This Axis workstation delivers 16 GB of RAM and a fast 256 GB SSD, so every camera feed stays smooth. The built-in Ethernet port and support for up to four 4K monitors give you a clear overview without lag. It is extensively tested with Axis products, so compatibility is guaranteed. With a 5-year warranty and next-day on-site replacement, you get peace of mind.
Usages of Axis
Use it as a client PC at a retail store to watch live feeds from all shop cameras. Deploy it as a server together with an AXIS S30 series for larger sites that need recording and analytics. Its small form factor fits tight control rooms, yet it can drive four 4K screens for a full-screen view of the perimeter. It also works well in factories where you need to monitor production lines and safety cameras. The workstation can serve as a dedicated analysis station for video-analytics software.
Benefits
- Smooth playback of multiple 4K streams, so you never miss an incident.
- Fast SSD storage saves recordings quickly and frees up space.
- 16 GB RAM lets you run several camera applications at the same time.
- Built-in Ethernet ensures stable network connection without extra adapters.
- 5-year warranty and next-day hardware replacement keep your system running.
Key Features
- Intel processor with 300 W power supply.
- 16 GB DDR4 memory in two 8 GB slots.
- 256 GB solid-state drive for quick data access.
- Intel UHD on-board graphics supporting three Mini DisplayPort 1.4a.
- Three Mini DisplayPort outputs for up to four 4K monitors.
- Five USB 3.2 Gen 2 Type-A ports for fast peripherals.
- Four USB 2.0 ports for legacy devices.
- One RJ-45 Ethernet LAN port.
- 80 PLUS Platinum efficiency for lower energy cost.
- Black small-form-factor chassis weighing 4.5 kg.
Specifications
| Processor |
| Processor manufacturer |
Intel |
| Memory |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory |
16 GB |
| Storage |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Mini DisplayPorts quantity |
3 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Design |
| Product colour |
Black |
| Chassis type |
SFF |
| Performance |
| Product type |
Workstation |
| Software |
| Operating system installed |
Windows 10 IoT Enterprise |
| Power |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
300 W |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Weight |
4.5 kg |
| Height |
293 mm |
| Depth |
290 mm |
| Width |
93 mm |
| Packaging content |
| Cables included |
AC, DisplayPort to Mini DisplayPort |
| Display |
| Display included |
No |
| Other features |
| Operating temperature (T-T) |
0 - 45 °C |
