Imagine missing a break-in because your camera cant see in the dark. The Axis Q1728, IP security camera, Outdoor, Digital PTZ, 0.05 lm, Pole clamp, Black is built for that exact moment. It watches your property 24/7, even when light is almost gone. If you need clear video, fast zoom and smart alerts, this camera gives you the confidence that nothing slips by.

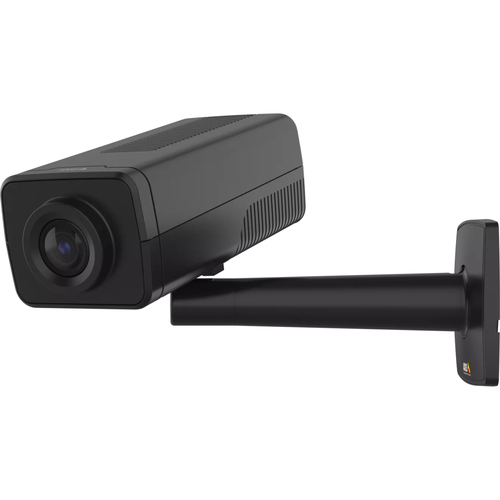

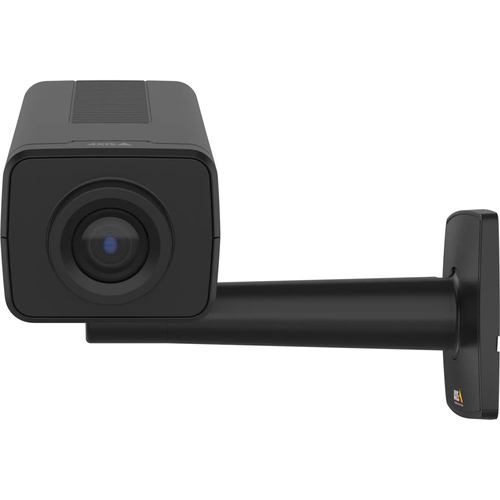

Axis Q1728, IP security camera, Outdoor, Digital PTZ, 0.05 lm, Pole clamp, Black
You often worry about blind spots, low-light footage, and the cost of replacing cameras. Those gaps let thieves or vandals act unchecked, and they raise insurance premiums. Axis solves the problem with a 4K sensor, Lightfinder 2.0 and digital PTZ that lets you zoom and focus from anywhere. The result is sharp detail day or night, lower bandwidth and easy integration with existing housings.
Benefits
- Clear 4K video at 60 fps lets you see faces and plates.
- Lightfinder 2.0 works with only 0.05 lm, so night looks bright.
- Digital PTZ and remote zoom let you track a moving target without moving the camera.
- Built-in AI analytics count people and vehicles, sending you only the events you need.
- Axis Zipstream reduces storage and bandwidth, saving you money.
Usages
Use this camera on a parking lot pole to watch cars entering and leaving. Install it on a warehouse wall to monitor loading docks and perimeter fences. It works on school grounds, parks or any outdoor area where you need reliable video in rain or snow. The pole clamp makes mounting quick, and the flexible housing lets you reuse an old enclosure or add a new one.
Key Features
- 4K (3840 2160) resolution at 60 fps.
- 1/1.2" CMOS sensor with 2.9 m pixels.
- Lightfinder 2.0 and Forensic WDR for true colors in low light.
- Digital PTZ with remote zoom and focus.
- Two lens options: 6-13 mm wide, 15-48 mm tele.
- ARTPEC-9 processor with AI analytics and AV1 encoding.
- Axis Zipstream compression for low bandwidth.
- IP66-rated aluminum and plastic housing for harsh weather.
- Pole clamp mounting, fits existing or new enclosures.
- Power over Ethernet support up to 28 V, 12.95 W max.
Specifications
| Performance |
| Luminous flux |
0.05 lm |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Housing material |
Aluminium, Plastic |
| Product colour |
Black |
| Mounting type |
Pole clamp |
| Form factor |
Box |
| Camera |
| Camera shutter speed |
1/66500 s |
| Camera pixel size |
2.9 µm |
| Horizontal field of view (thermal module) |
42 - 13° |
| Image sensor |
| Optical sensor size |
25.4 / 1.2 mm (1 / 1.2") |
| Sensor type |
CMOS |
| Lens system |
| Detect distance (tele) |
672.9 m |
| Detect distance (wide) |
211 m |
| Identify distance (tele) |
67.3 m |
| Identify distance (wide) |
21.1 m |
| Normal focusing range |
1.5 m |
| Observe distance (tele) |
267 m |
| Observe distance (wide) |
83.7 m |
| Recognize distance (tele) |
134.6 m |
| Recognize distance (wide) |
42.2 m |
| Auto focus |
Yes |
| Lens diameter |
4.8 cm |
| Number of lenses |
1 |
| Night vision |
| Night vision |
Yes |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Gain control type |
Auto |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 2592 x 1944, 3840 x 2160 |
| Video formats supported |
AV1, H.264, H.265, M-JPEG |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS |
| Network |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Ethernet LAN |
Yes |
| Storage |
| Flash memory |
8000 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| HDD capacity |
4 GB |
| Built-in HDD |
Yes |
| Ports & interfaces |
| Headphone outputs |
1 |
| RS-485 ports |
1 |
| RS-422 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Security algorithms |
EAP-TLS, HTTPS, PEAP, TLS |
| Power |
| DC output voltage |
10, 12, 15, 16, 24, 28 |
| Power consumption (max) |
12.95 W |
| Power consumption (typical) |
7.5 W |
| Power source type |
DC |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
| Weight |
611 g |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
