Tired of power supplies that drop out when your machines need them most? The Balluff BAE PS-XA-1W-24-150-608-I Field power supplies with IO-Link interface gives you a steady, reliable source of 24-28 V DC for demanding automation lines. It solves the common problem of unstable voltage that can cause costly downtime, and it does so with built-in diagnostics so you always know what is happening.

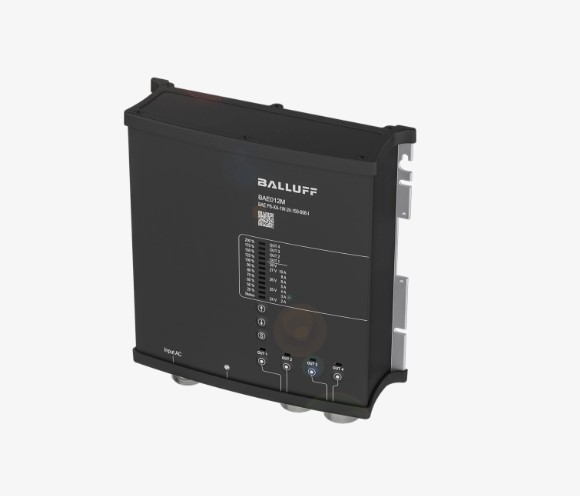

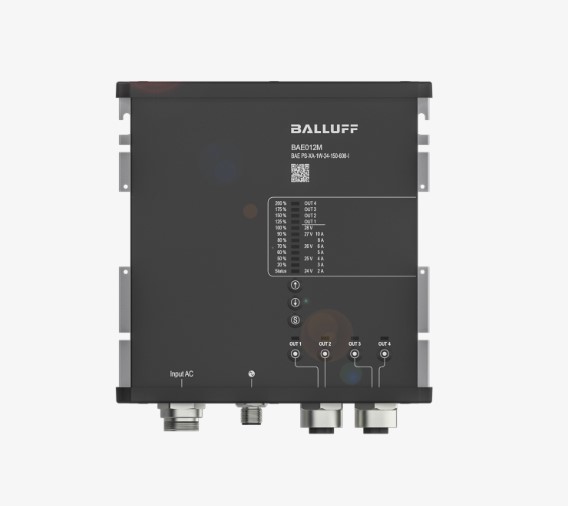

Balluff BAE PS-XA-1W-24-150-608-I Field power supplies with IO-Link interface
Many factories struggle with power units that cannot handle temperature swings or sudden load changes. When the supply falters, sensors lose data and production stops, hurting profit. This Balluff unit eliminates those worries by delivering up to 360 W, staying efficient at 95 % and keeping a clear status display. The IO-Link connection lets you monitor voltage, current and errors from your PLC, so you can act before a failure becomes a loss.
Key Features
- Maximum output power 360 W.
- Output voltage adjustable 24-28 V DC.
- Rated current 15 A.
- Input voltage 85-264 V AC, universal worldwide.
- IO-Link 1.1 interface with profile ID 0x4000.
- Aluminum and PET housing, IP67/IP65 protection.
- Hold-up time 44 ms, turn-on time under 1 s.
- Power boost 165 % for 5 s to cover peak loads.
- Free convection cooling, no fan noise.
- CE, UKCA, cULus, WEEE certified.
- MTTF 44 years at 40 C for long-term reliability.
- Flange mounting dimensions 181 59 183 mm.
Specifications
| General |
|
| Short description |
Switching power supply |
| Output capacity max. |
360 W |
| Output voltage |
24 - 28 V DC |
| Rated output current |
15 A |
| Input voltage |
85...264 V AC |
| Dimension |
181 × 59 × 183 mm |
| Mounting part |
Flange mounting |
| Housing material |
Aluminum, PET |
| Approval/Conformity |
CE, UKCA, cULus, WEEE |
| Electrical connection |
|
| Connection |
M12x1, A-coded |
| Connection (supply voltage IN) |
7/8"-Male, 3-pin |
| Connection (supply voltage OUT) |
7/8" × 2-Female |
| Connector supply voltage IN, number of pins |
3 |
| Connector supply voltage IN, type |
Male |
| Connector supply voltage OUT, style |
7/8" × 2 |
| Connector supply voltage OUT, type |
Female |
| Interconnected operation type |
Parallel wiring: not possible |
| Electrical data |
|
| Derating |
-6 W/°C > +45 °C, -10 W/°C > +55 °C |
| Display |
Status (On/Off, Input failure, Hiccup mode, Overtemp.), Selected output,
Load level, Trip current
|
| Efficiency typ. |
95.7 % |
| Hold-up time |
44 ms |
| Input voltage |
85...264 V AC |
| Inrush current |
2.6 / 6 A peak at 120 / 230 V AC |
| Output capacity max. |
360 W |
| Output voltage |
24 - 28 V DC |
| Power boost |
165 % |
| Power boost, duration max. |
5 s |
| Protection class |
I (IEC 61140) |
| Rated output current |
15 A |
| Switching frequency |
PFC converter: 20 kHz to 135 kHz, Main converter: 60 kHz to 140 kHz, Auxiliary converter:
54 kHz to 66 kHz
|
| Turn-on time |
Max. 1 s |
| Environmental conditions |
|
| Ambient temperature |
-25...70 °C |
| Contamination scale |
3 |
| Cooling |
Free convection |
| Shock |
EN 60068-2-27: 30 g, 6 ms; 20 g, 11 ms; 3 bumps/direction, 18 bumps in total |
| Vibration |
EN 60068-2-6: 2...17.8 Hz: ±1.6 mm; 17.8...500 Hz: 2 g; 2 hours/axis |
| IP rating |
IP67/IP65 |
| Relative humidity |
5…95 % |
| Storage temperature |
-40...85 °C |
| Functional safety |
|
| MTTF (40 °C) |
44 a |
| IO-Link |
|
| IO-Link Profile IDs |
0x4000 Identification and Diagnosis |
| Interface |
IO-Link 1.1 |
| Material |
|
| Housing material |
Aluminum, PET |
| Mechanical data |
|
| Dimension |
181 × 59 × 183 mm |
| Mounting part |
Flange mounting |
