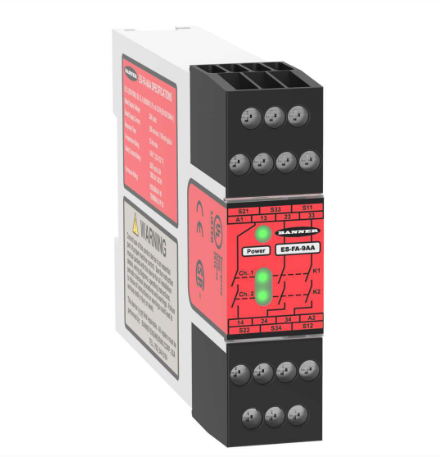

Banner ES-FA-9AA Safety Relay 24V AC DC Emergency Stop Module

When a machine needs to stop fast, a weak or missing safety relay can cause damage or injury. This risk is serious for anyone who works with conveyors, presses or robotic cells. The Banner ES-FA-9AA Safety Relay 24V AC DC Emergency Stop Module gives you a reliable way to cut power instantly, keeping people and equipment safe.

Banner ES-FA-9AA Safety Relay 24V AC DC Emergency Stop Module with Banner

Stop accidents before they happen with this compact emergency stop unit. It works with both AC and DC supplies at 24 V, so you can fit it into many control panels. If a safety button is pressed, the module breaks the circuit in less than a quarter of a second. You get a clear, tested solution that meets safety category 4 and SIL 3 requirements. Banner makes the part, so you trust the brand for critical safety tasks.

Usages

Use this relay in production lines that move heavy loads. It fits well in palletizing machines, injection molding presses and packaging equipment. The module also works for safety gates and rope-pull stops on conveyors. Because it accepts both NO and NC contacts, you can wire it to many types of emergency buttons. Its removable screw terminals make wiring fast and error-free.

Benefits

• Fast response time protects workers and machines.
• Universal 24 V AC/DC power fits most control systems.
• Simple screw terminals reduce installation time.
• Compact size saves panel space.
• Meets high safety standards for peace of mind.

Key Features

• Power rating: AC/DC universal.
• IP20 protection for indoor use.
• Supply voltage: 24 V AC/DC.
• One safe input, configurable as 2 NC or 1 NC.
• Three normally open safe outputs, 6 A relay rating.
• Response time 25 ms, recovery time 250 ms.
• Mechanical life of 20 million operations.
• Removable screw terminals for easy wiring.
• Vibration tolerance 10-55 Hz at 0.35 mm.
• Electrical life 1 million cycles at 450 VA.
