Product Code: CNTR-120
MPN #: 806222
Description
Documents
Reviews

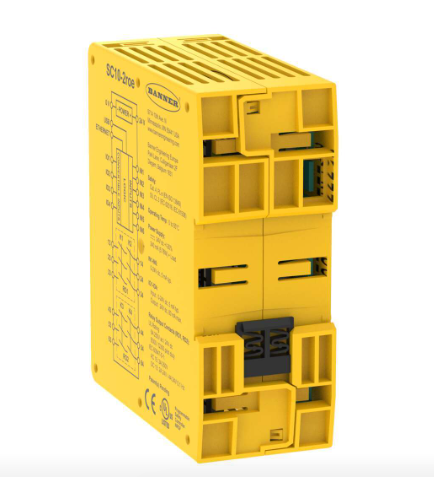

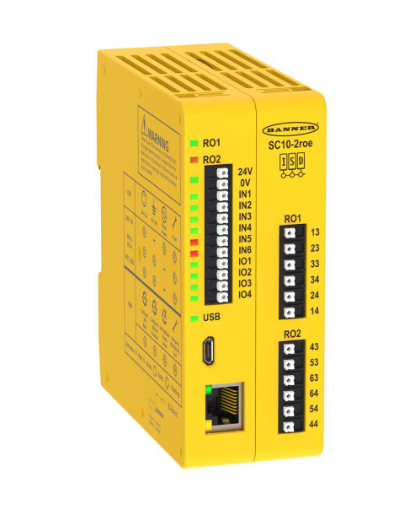

Imagine a production line that stops every time a safety sensor trips, costing you time and money. The BANNER SC10 Safety Controller/Relay Hybrid 24V DC 10 Inputs SIL3 Cat4 stops that cycle. It is a compact safety controller that also works as a relay. You need it when you want reliable safety monitoring without adding separate devices, and when you must meet strict SIL3 and Category 4 standards.
The main problem on many factories is the lack of a single unit that can both read safety inputs and drive safe outputs. When you miss a fault, the whole machine can become unsafe and you risk costly downtime. This matters because safety incidents can halt production and lead to legal penalties. The SC10 solves the issue by combining a SIL3-rated controller with two independent 6 A relays, giving you a clear, compact solution that meets safety standards and simplifies wiring.
Benefits
Reduces wiring complexity by merging controller and relay functions.
Meets SIL3 and Category 4 requirements, keeping your plant compliant.
Provides 10 configurable safe inputs for diverse sensors.
Delivers two independent 6 A safe outputs for quick machine stops.
Operates on 24 V DC, fitting most industrial power supplies.
Usages
Use the SC10 on conveyor belts where emergency stops and light curtains must shut down motion instantly. It fits robotic cells that need two-hand controls, safety mats, and gate switches. The controller works well with packaging machines that require E-stop ropes and safety-rated sensors. It also integrates with PLC networks via EtherNet/IP, Modbus/TCP, PROFINET, or PCCC, making it suitable for any automation system that demands reliable safety logic.
Key Features
Power supply: 24 V DC.
IP20 rating for indoor mounting.
10 safe inputs, configurable for dry contact or solid-state signals.
Two independent safe outputs, each rated 6 A relay.
Four convertible inputs for flexible wiring.
Spring-clamp terminals for quick wiring.
Mechanical life of 20 million operations.
Electrical life of 50 000 cycles at full load.
Recovery time up to 400 ms, typical 250 ms.
Supports EtherNet/IP, Modbus/TCP, PROFINET, and PCCC communication.
Specifications
Attribute
Value
Power
DC
IP Rating
IP20
Supply Voltage
24 V dc
Item Status
RELEASED
Device Type
Safety Controller
In-Series Diagnostics
Yes
Safety Module Type
Base Controller
LCD Display
No
Expandable
No
Dimension (H x W x D in mm)
115 x 45 x 100
Relative Humidity
90% @ 50° C
Max Operating Temperature (C)
55
Input Operation
Simultaneous or Concurrent
Number of Safe Inputs
10
Input Configuration
Configurable
Number of Convertible Inputs
4
Safety Input - Dual Channel (Dry Contact)
5-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State)
50 mA @ 15 - 30 V dc
Safety Input - Reset
5-50 mA @ 24 V dc
Independently Controlled Safe Outputs
2
Output Configuration
2 sets of 3 NO
Non Safe Output Configuration
Up to 4 PNP
Non Safe Output Rating
80 mA @ 24 V dc (individual) maximum
Safe Output Rating
Relay - 6 A
Splittable Safe Output
No
Mechanical Life (Operations in Millions)
20
Power Consumption
0.24 A (no load) to 0.53 A (full load)
Response Time (ms)
See Software Configuration Summary
Terminal Type
Spring Clamp
Removable Terminals
No
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Electrical Life (Cycles @ VA)
50,000 @ full resistive load
PL Rating
e
Safety Category Rating
4
SIL Rating
3
SISTEMA
PFHd = 5.0 x 10-10
THC Rating
IIIC
Safety Input - Single Channel
5-50 mA @ 24 V dc
Input Resistance
150 Ω max. per lead
E-Stops/Rope Pulls
Yes
Safety Mat
Yes
Motor Speed
No
Two-Hand Controls
Yes
Muting
Yes
Gate Switch (NC/NC) Input
Yes
Gate Switch (NC/NO) Input
Yes
Gate Switch (OSSD) Input
Yes
Light Curtains/Scanner with EDM Input
Yes
Light Curtains/Scanner without EDM Input
Yes
EtherNet/IP
Yes
Common Ethernet Protocol
No
Modbus/TCP
Yes
PCCC
Yes
PROFINET
Yes
Recovery Time
250 (typical), 400 (max)
EPLAN Status
Published
EPLAN Original Sent Date
06/15/2022
