Basler ace 2 9.1MP GigE Industrial Camera Global Shutter

Imagine a production line that never stops because the camera can keep up with every fast moving part. The Basler ace 2 9.1MP GigE Industrial Camera Global Shutter(VARIANT) gives you that power. It is a high-resolution machine vision camera built for harsh industrial environments. If you struggle with blurry images, missed defects, or slow data transfer, this camera solves those problems and lets you see every detail in real time.

Basler ace 2 9.1MP GigE Industrial Camera Global Shutter(VARIANT)

Many factories lose money when a camera cannot capture fast motion without distortion. The result is poor quality control and costly rework. This matters because every missed defect can lead to product returns and brand damage. The Basler camera offers a global shutter, 9.1 MP resolution and GigE connectivity, giving you crystal clear images at 12 fps and fast data transfer. You get reliable inspection without motion blur, and the network link fits easily into existing Ethernet infrastructure.

Usages of Basler

The camera works well on assembly lines that need to check each part for defects. It can be mounted on robotic arms for pick-and-place verification. In logistics, it reads barcodes and verifies package orientation. It also fits quality labs where high detail is required for surface inspection of electronics or medical devices. The IP30 box and C-mount lens make it easy to install in tight spaces.

Benefits

• Clear images of fast moving objects reduce scrap and rework.
• GigE interface lets you stream data over long cables without loss.
• Global shutter eliminates rolling-shutter artifacts in high-speed scenes.
• Low power consumption (3.6 W) lowers operating costs and supports PoE.

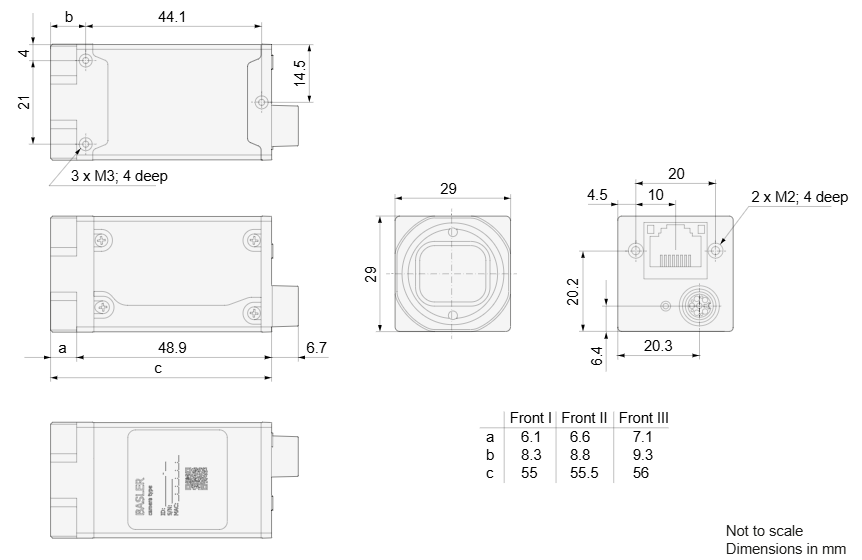

• Compact box design (55 mm 29 mm 29 mm) fits into small machine slots.

Key Features

• 9.1 MP CMOS sensor (GMAX2509) with 2.5 m pixels.
• Global shutter for distortion-free capture.
• Resolution 4200 2160 pixels.
• 12 fps frame rate at full resolution.
• GigE (RJ45) interface with PoE support.
• 8, 10, 12-bit pixel depth options.
• Hardware trigger and Camera API for precise timing.
• Two general-purpose I/O and one digital input.
• IP30 protection rating for industrial use.
• C-mount lens thread for interchangeable optics.
• Operating temperature range -10 C to 50 C.
• 36-month warranty for peace of mind.

Specifications
