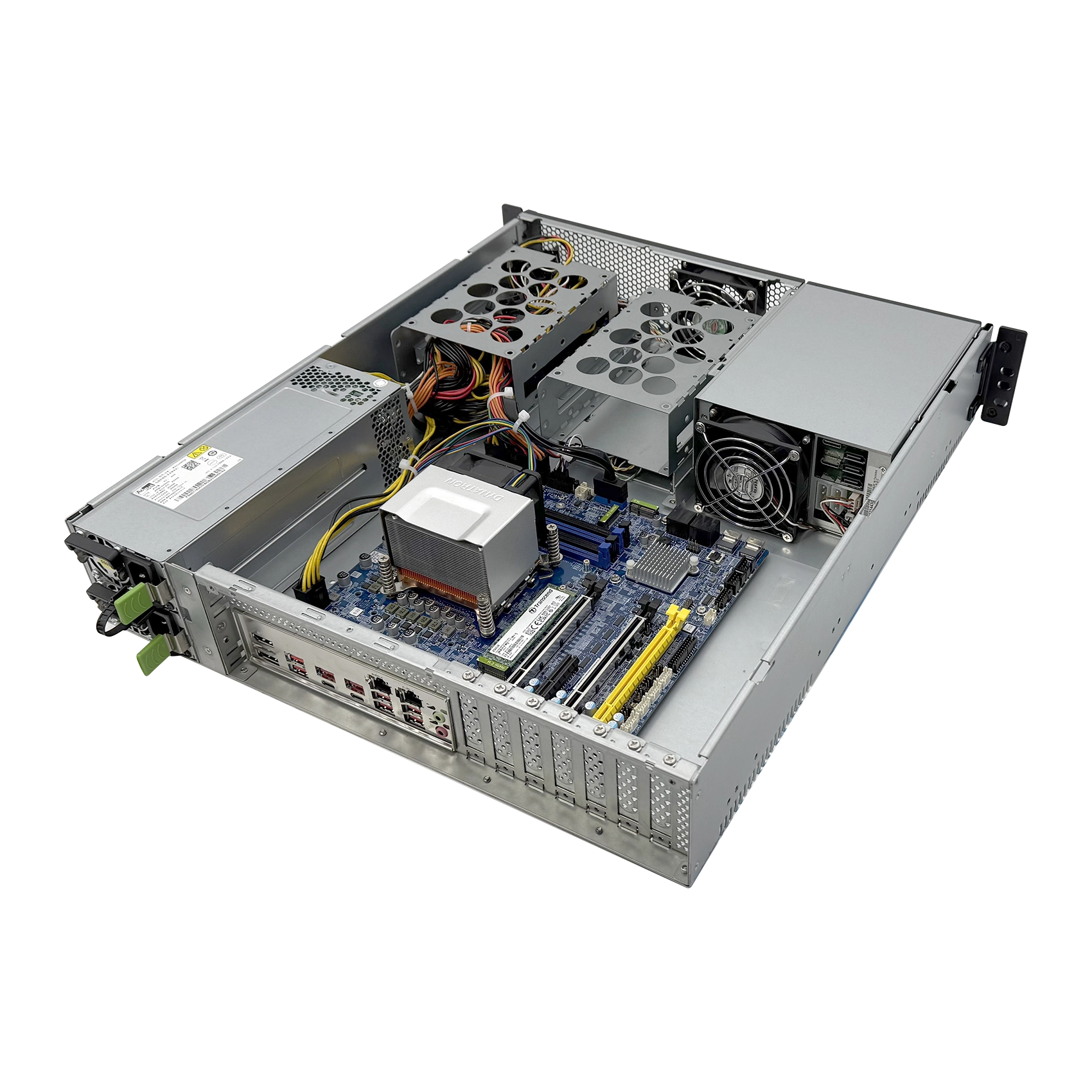

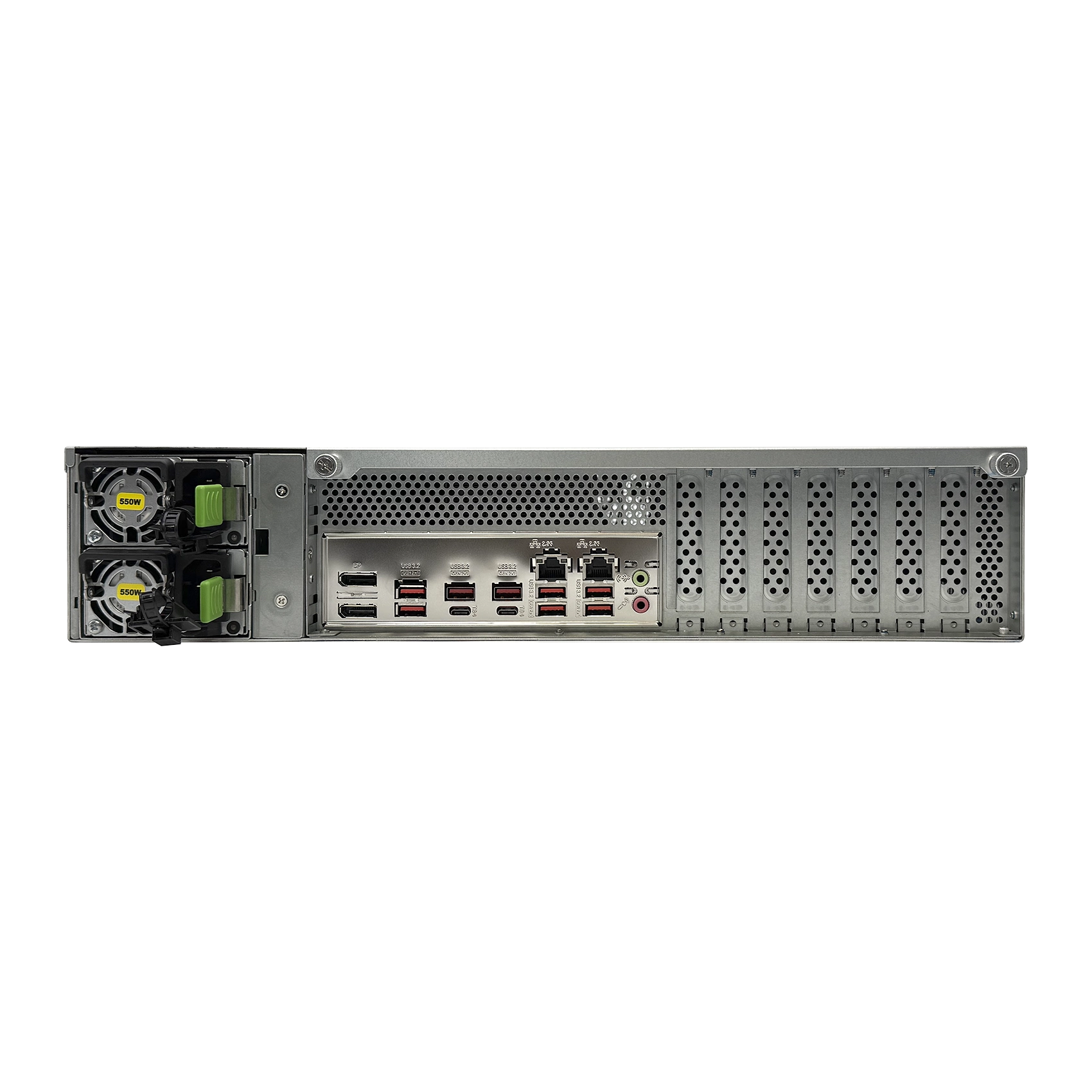

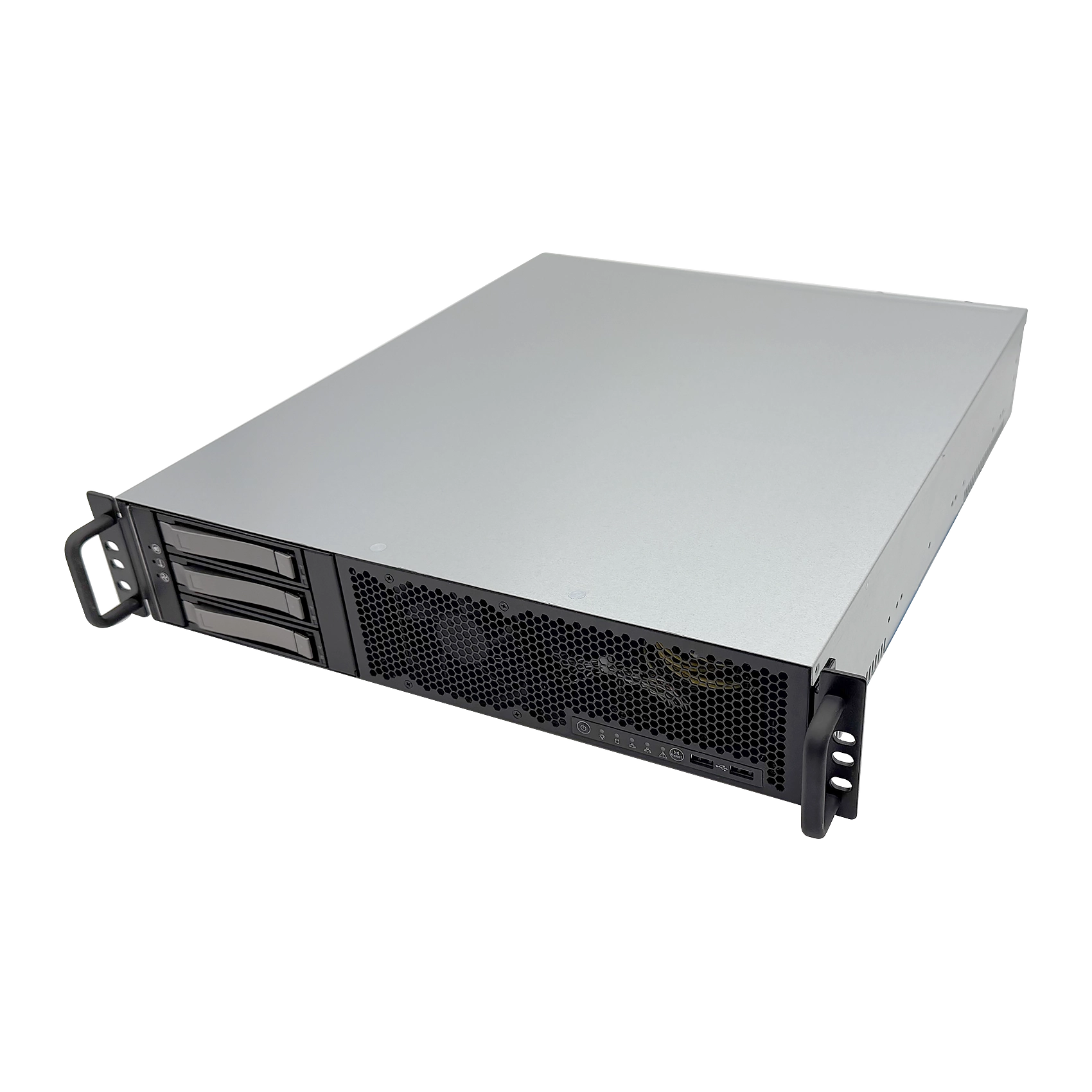

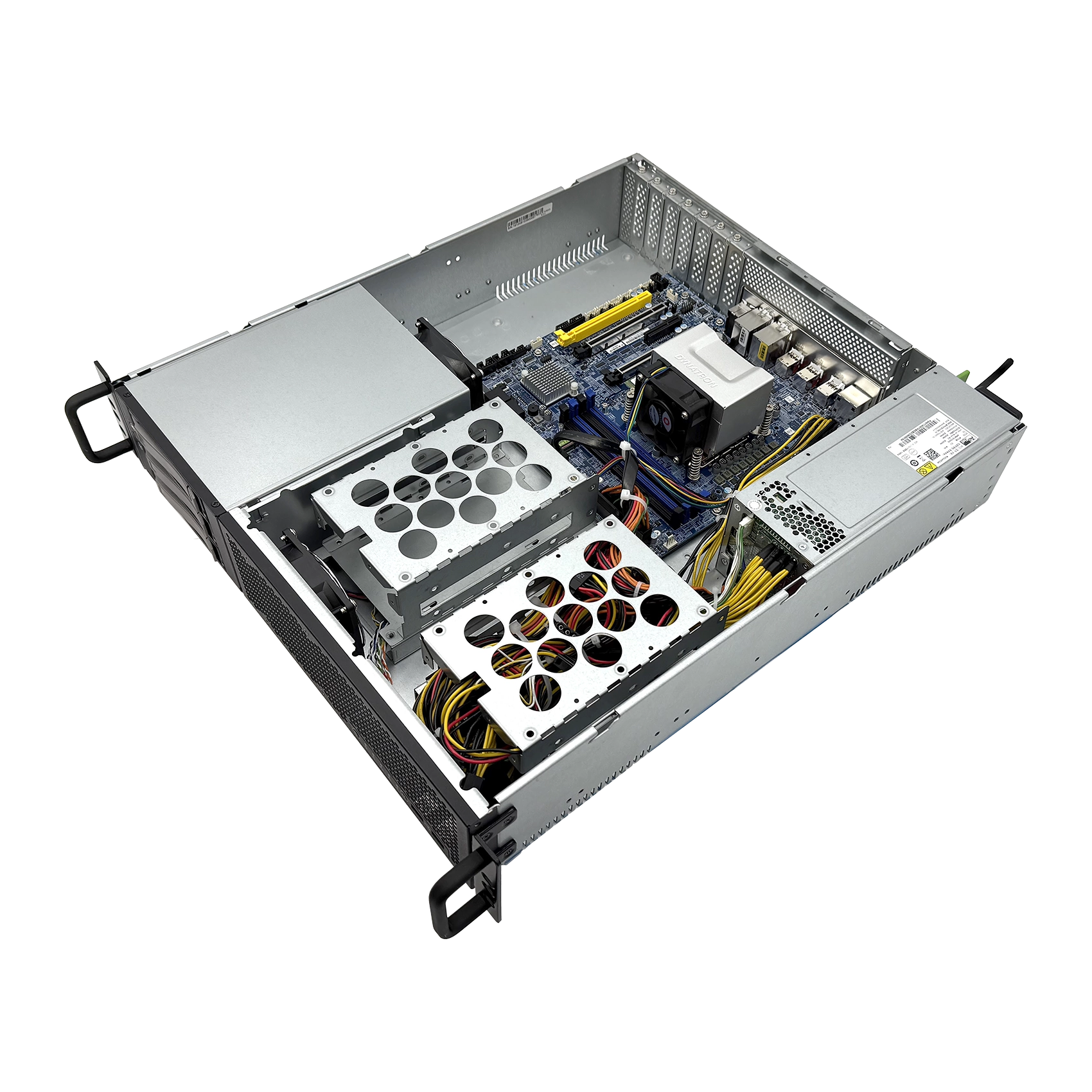

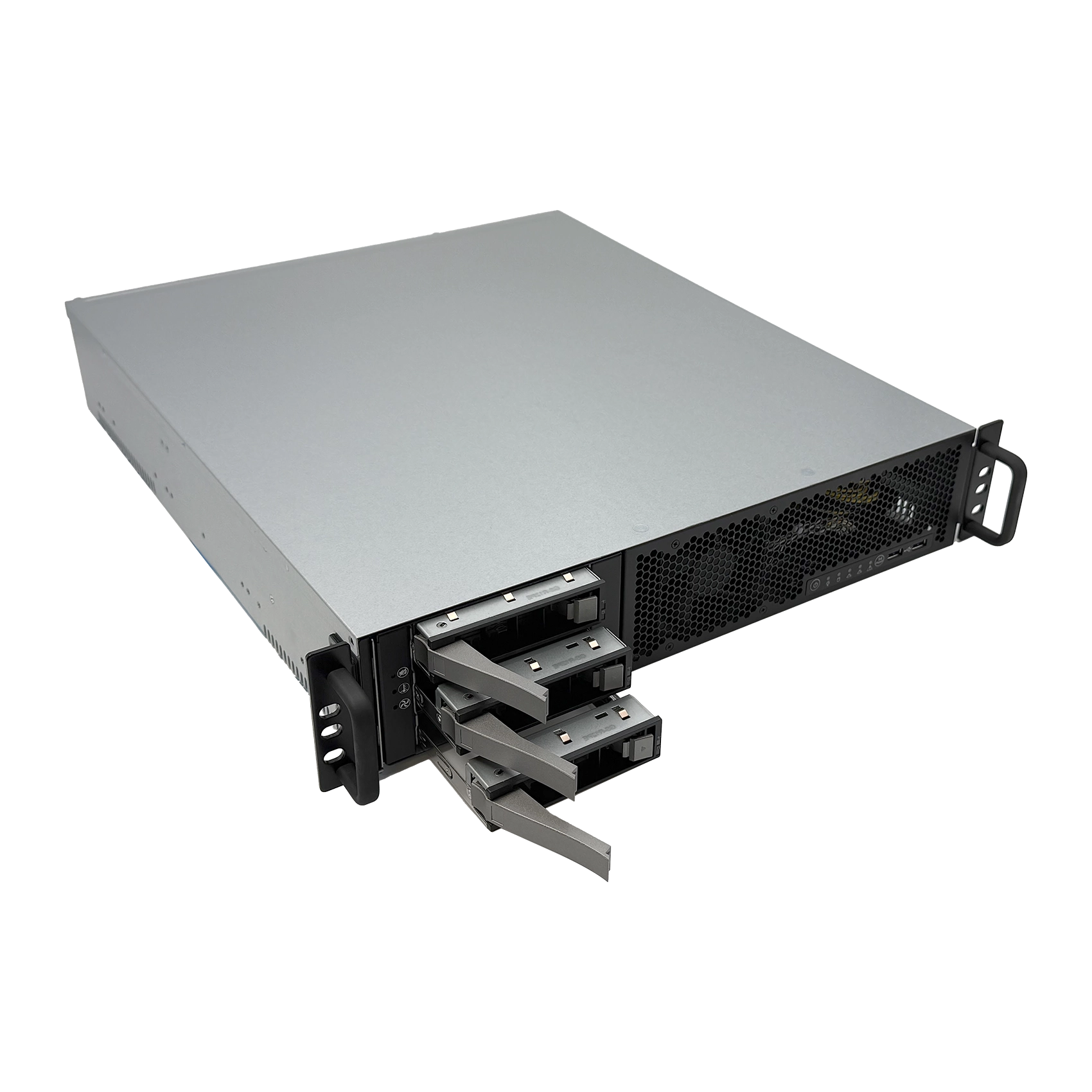

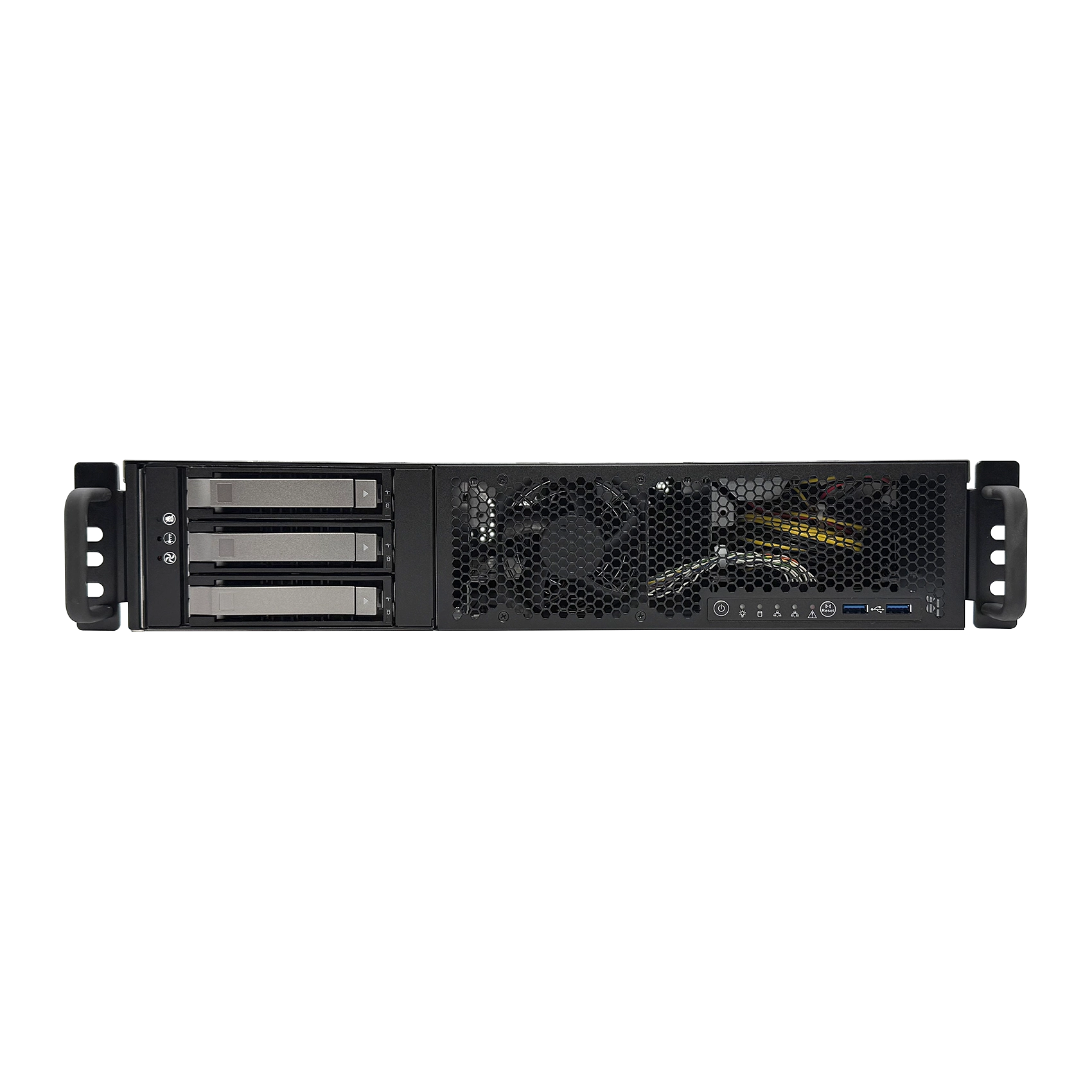

BCM HPS-RX880W2A 2U Rackmount Barebone Computer

When you need a powerful computer that fits into a standard rack, space and cooling become big worries. Too much heat can cause downtime, and a bulky box can block other equipment. The BCM HPS-RX880W2A 2U Rackmount Barebone Computer solves these issues. It packs high-end processors into a 2U chassis, keeps temperatures low, and slides easily into any 19-inch rack. This gives you the performance you need without the space problems.

BCM HPS-RX880W2A 2U Rackmount Barebone Computer with BCM

Imagine a machine that can run AI models, process video streams, and handle heavy calculations, all from a slim rack unit. That is exactly what this barebone computer does. It is built on the BCM RX880W Barebone computer, which supports Intel Core Ultra processors up to 125 W. If you have struggled with slow edge devices or cramped server rooms, this system gives you the speed and density you need. The BCM name assures you of reliable industrial design.

Usages

The rackmount computer works well in factories that need real-time machine vision. It can be placed in edge data centers to run AI inference close to sensors. It also fits in research labs for high-performance computing tasks such as simulation or data analysis. Because it has dual 2.5 GbE ports, it can serve as a network gateway for IoT devices. Its flexible storage options let you store large video archives or scientific datasets.

Benefits

• Compact 2U size frees up rack space for other gear.
• High-speed DDR5 memory supports fast data processing.
• Redundant 550 W power supply keeps the system running during a power glitch.
• Dual 2.5 GbE links give reliable network performance for critical applications.
• Thunderbolt 4 ports allow fast external device connections and future expansion.

Key Features

• RX880W Micro ATX board supports Intel Core Ultra Series 2 CPUs.
• Four DDR5 DIMM slots, up to 192 GB, with optional ECC support.
• Two Intel I226-LM 2.5 GbE controllers for dual LAN.
• Two DisplayPort++ outputs for multi-screen setups.
• Ten USB 3.2 Type-A ports and two USB-C Thunderbolt 4 ports.
• Two M.2 M-Key slots and one M.2 E-Key slot for storage and wireless cards.
• Low-profile PCIe slots: Gen5 x16, Gen5 x8, Gen4 x4, and Gen4 x4.
• Optional drive bays: three 2.5 external, four 3.5 internal.
• Onboard TPM 2.0 for hardware security.
• Front and rear PWM fans for efficient cooling.

Specifications
