Tired of missing the perfect shot because your camera cant keep up? BirdDogs X1 solves that with 20x optical zoom and AI tracking that follows your subject automatically. You get smooth pan-tilt-zoom, a reliable wired link, and an always-on e-ink label so you never waste time hunting for the right camera. This camera gives you the control you need without extra gear.
BirdDog X1 Outdoor Wired IP Security Camera 20x Zoom AI Tracking White
The X1 is a bullet-style IP security camera built for outdoor productions, live events, and sports venues. It delivers 1080p video at 60 fps, 20x optical zoom, and AI-driven subject tracking, all through a single PoE cable. Ideal for creators who need precise framing and reliable network performance.
Benefits
- Never lose a subject - AI tracking keeps you in frame.
- Fast 80/sec pan and 60/sec tilt for quick coverage.
- 20x optical zoom captures distant action with detail.
- Built-in Wi-Fi adds flexibility where cabling is hard.

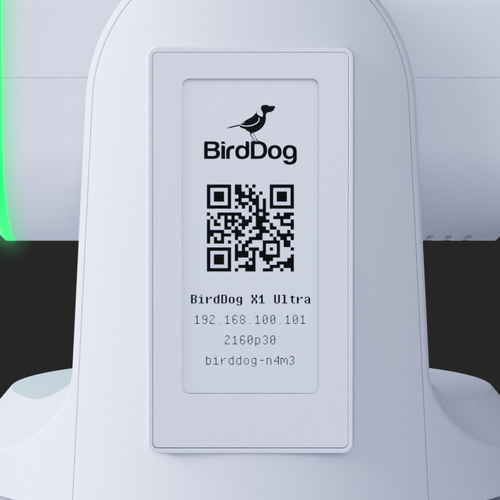

- E-ink label shows address and settings even when off.
- 5-year global warranty protects your investment.
Features
- 20x optical zoom lens
- AI tracking algorithm
- NDI|HX2 and HX3 support
- PoE and Wi-Fi connectivity
- 1080p resolution at 60 fps
- Weather-rated for -10 C to 40 C
- Robust aluminum housing

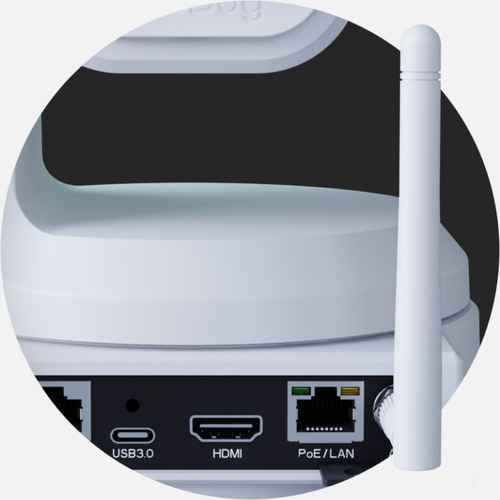

- Integrated HDMI and USB ports
Specifications
| Performance |
| Light exposure modes |
Auto, Manual, Shutter priority AE |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Product colour |
White |
| Form factor |
Bullet |
| Camera |
| Pan speed |
80 °/sec |
| Pan range |
-175 - 175° |
| Tilt speed |
60 °/sec |
| Tilt angle range |
-90 - 90° |
| Lens viewing angle, diagonal |
61 (W) - 3.64 (T) |
| Lens viewing angle, vertical |
32.2° (W) – 1.8° (T) |
| Lens viewing angle, horizontal |
55.8° (W) – 3.2° (T) |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Panoramic camera |
| Signal-to-Noise Ratio (SNR) (panoramic camera) |
50 dB |
| Lens system |
| Maximum aperture number |
3.5 |
| Minimum aperture number |
1.6 |
| Auto focus |
Yes |
| Fixed focus |
Yes |
| Focus |
Motorized/Manual |
| Focal length range |
5.5 - 110 mm |
| Optical zoom |
20x |
| Zoom capability |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Noise reduction |
Yes |
| Frame rate |
60 fps |
| Supported video modes |
720p, 1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
2.07 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Supported network protocols |
NDI|HX2, NDI|HX3, SRT, RTSP, RTMP |
| Networking standards |
IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| USB port |
Yes |
| RS-485 ports |
1 |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| DC output current |
2 A |
| DC output voltage |
12 |
| Power consumption (max) |
13 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
-10 - 40 °C |
| Weight & dimensions |
| Weight |
1.35 kg |
| Height |
192.6 mm |
| Depth |
171.6 mm |
| Width |
171.6 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
2.05 kg |
| Package height |
217 mm |
| Package depth |
197 mm |
| Package width |
260 mm |
| Supplier features |
| Manufacturer |
BirdDog |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
1920 x 1080 pixels |
| Warranty period |
5 year(s) |
