If you are looking for a reliable and efficient way to control your lambda sensors, you may be experiencing problems with inaccurate readings or faulty sensor connections. This can lead to decreased engine performance, reduced fuel efficiency, and increased emissions. The Bosch Lambdatronic LT4 ADV Sensor Controller Module is designed to solve these problems by providing a precise and reliable way to control up to 4 Bosch LSU ADV lambda sensors. With its advanced features and user-friendly design, this module is the perfect solution for anyone looking to improve their engine's performance and reduce their environmental impact.

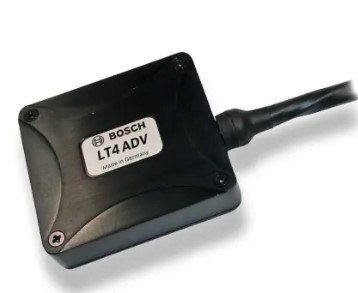

Bosch Lambdatronic LT4 ADV Sensor Controller Module with Bosch
Are you tired of dealing with faulty lambda sensors and inaccurate readings? Look no further than the Bosch Lambdatronic LT4 ADV Sensor Controller Module. This advanced module is designed to provide precise control over up to 4 Bosch LSU ADV lambda sensors, giving you the accurate readings you need to optimize your engine's performance. With its compact design and easy-to-use interface, this module is perfect for anyone looking to take their engine to the next level. As a leading brand in the automotive industry, Bosch has designed this module with the user in mind, providing a reliable and efficient solution for all your lambda sensor needs.
Key Features
- Supports up to 4 Bosch LSU ADV lambda sensors
- Integrated voltage compensation for sensor heater
- CAN and analog outputs for easy connectivity
- Sensor temperature and diagnostic parameters via CAN
- Compact design with velcro mounting for easy installation
- Operating temperature range of -20 to 85C
- Storage temperature range of -20 to 85C
- Maximum vibration of Vibration Profile 1
- Power supply of 10 to 14 V with maximum power supply of 26 V
- Thermal dissipation loss of 3 W at 14 V
- Current IS of 5 A with current IS of 26 A during heating up
Specifications
| General |
|
| Product |
Bosch Lambdatronic LT4 ADV Sensor Controller Module |
| Order Number |
F02U.V01.111-04 |
| Description |
Sensor Controller Module |
| Application |
Lambda 0.75 to 5 |
| Compatible Bosch Sensor Type |
LSU ADV |
| Channels |
4 |
| Heater |
Internal |
| Features |
|
| Supported Sensors |
Supply of up to 4 Bosch LSU ADV lambda sensors |
| Heater Control |
Integrated voltage compensation for sensor heater |
| Signal Output |
CAN and analog outputs |
| Diagnostics |
Sensor temperature and diagnostic parameters via CAN |
| Mechanical Data |
|
| Weight with Wire |
98 g |
| Sealing |
100% humidity |
| Mounting |
Velcro |
| Size without Wire (W × L × H) |
54 × 59 × 13 mm |
| Operating Temperature Range (Housing) |
-20 to 85°C |
| Storage Temperature Range |
-20 to 85°C |
| Maximum Vibration |
Vibration Profile 1 |
| Electrical Data |
|
| Power Supply US |
(6.5) 10 to 14 V |
| Maximum Power Supply (1 min) US |
Max. 26 V |
| Thermal Dissipation Loss |
3 W at 14 V |
| Current IS |
5 A |
| Current IS (Heating Up) |
26 A |
| Software Tool (Free Download) |
|
| System Configuration Tool |
RaceCon 2.7.0.9 or later |
| Characteristics |
|
| Signal Output 1 |
CAN |
| Signal Output 2 |
4 × 0 to 5 V analog |
| CAN Baud Rate |
500 kbaud or 1 Mbaud |
| Signal Resolution |
2.5 × 10⁻⁴ lambda |
| Signal Sampling Rate |
100 Hz |
| CAN Refresh Rate |
100 Hz |
| Connectors and Wires |
|
| Sleeve |
Viton |
| Wire Size |
26 |
| Wire Length |
20 cm |
| Communication |
|
| Communication Link |
K-Line / CAN |
| Installation Notes |
|
| Recommended Sensor Cable Length |
Maximum 1.5 m between sensor and box |
| Ground Reference |
GND_REF must be connected to the measuring device or system ground |
| Ground Offset |
Maximum 2 V between GND and GND_REF |
| Protection |
Secure from miss-pinning |
| Typical Lifetime |
Max. 220 h / 2 years |
| Ordering Information |
|
| Lambdatronic LT4 ADV |
F02U.V01.111-04 |
