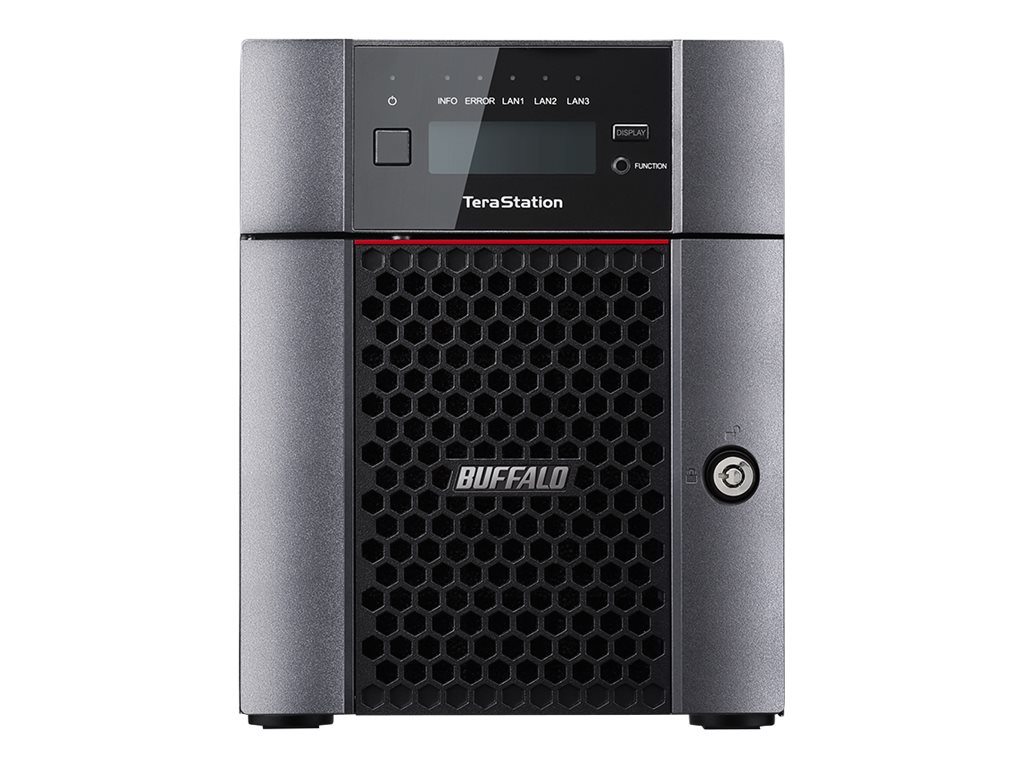

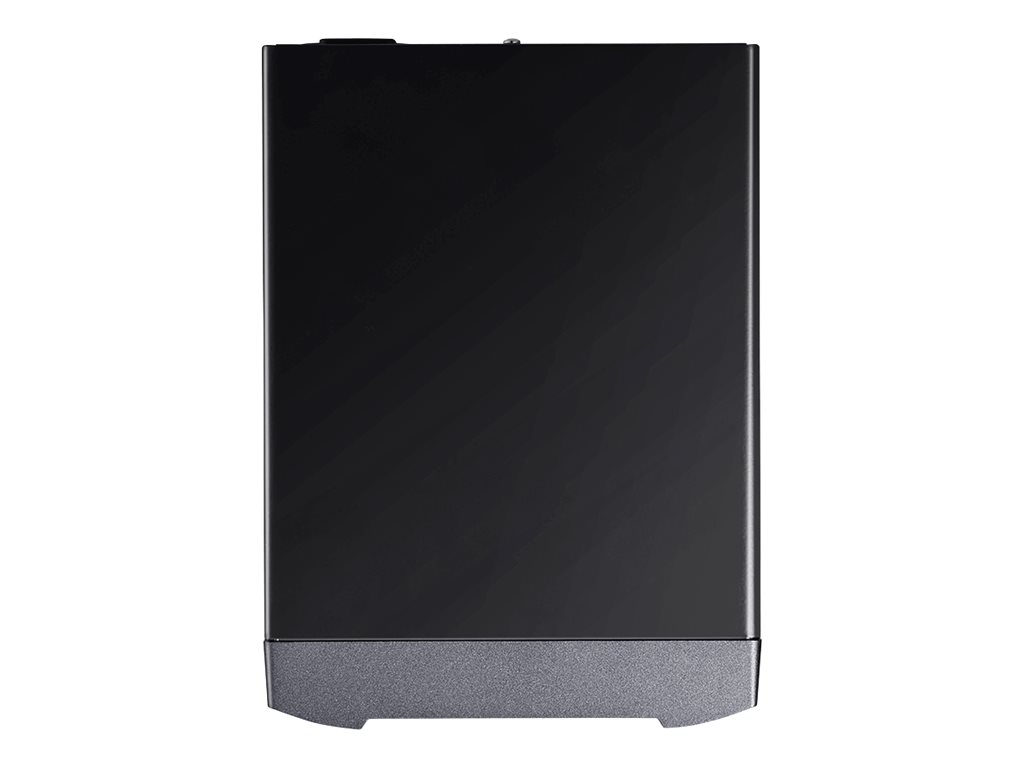

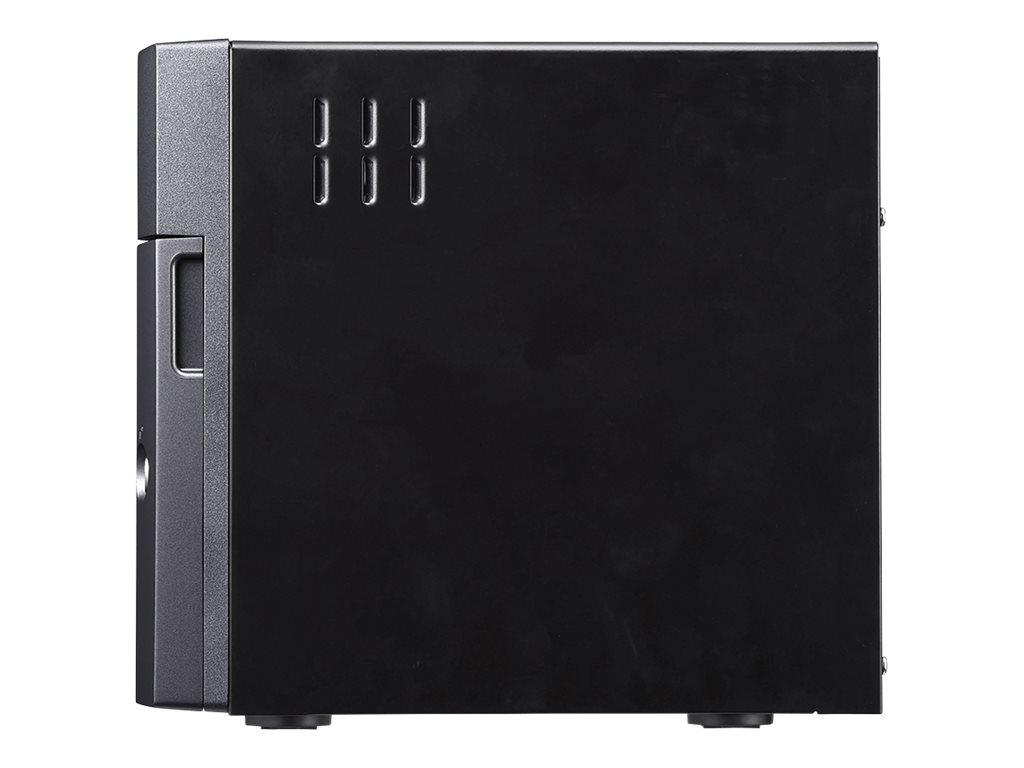

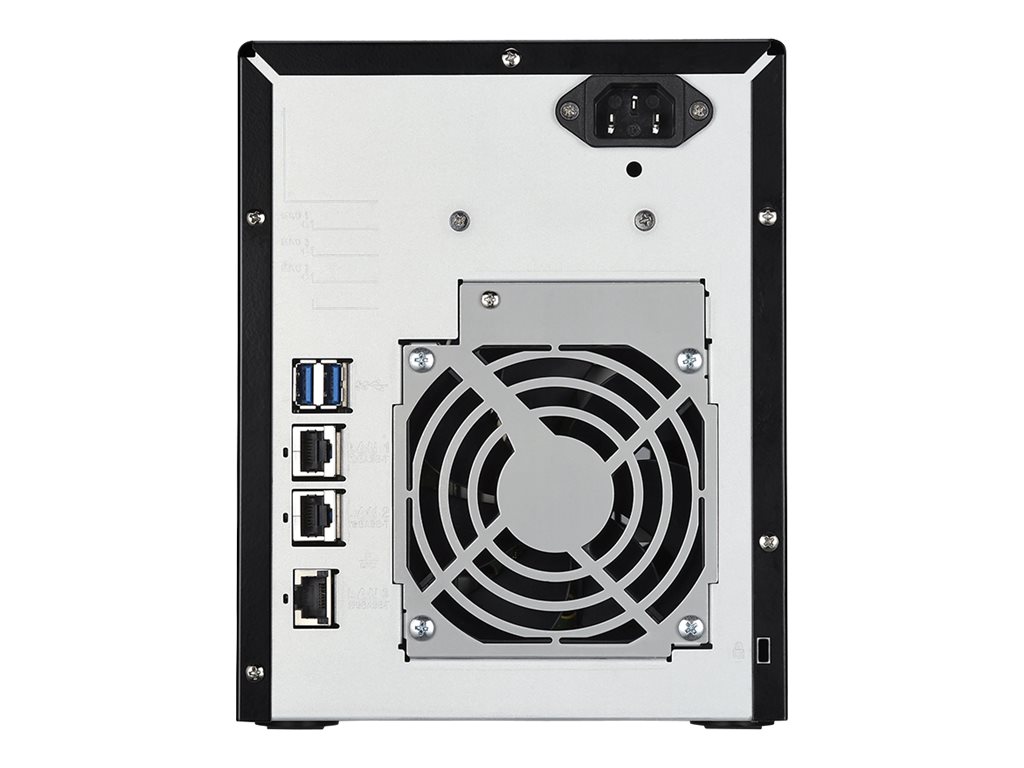

Streamline your personal office productivity with the robust and scalable design of the Buffalo TeraStation 5420DN 16TB 4-Bay Desktop NAS Server. Complete with pre-installed 3.5" storage drives, the TeraStation offers ample room for your assets while also enabling you to scale capacity to your needs.
The TeraStation gives you a maximum capacity of 16TB consisting of four 4TB storage drives, giving you plenty of space for your files and information. Hot swappable design enables you to exchange drives without shutting down your entire system, essential for replacing or upgrading your system. A 2.04 GHz Annapurna Labs AL524 processor and 8GB of DDR4 RAM work together to enhance performance and provide enhanced data transfer speeds through the dual 1 GbE and dual 10 GbE RJ45 network ports. Drives can be formatted to fit various RAID profiles including 0, 1, 5, 6, 10, and JBOD, enabling you to control your storage drives and set up your ideal configuration. With 256-bit drive encryption, two-factor authentication, and flexible backup features, you can ensure your data is protected against multiple potential threats.
Connectivity
LED Indicators
Certified Storage
Snapshot Backup & Recovery
Cloud Integration
Key Features:
- 16TB Maximum Capacity
- 4 x Drive Bays / 4 x 4TB HDDs
- 2.04 GHz Annapurna Labs AL524 Processor
- 8GB DDR4 RAM
- 2 x 10 GbE & 2 x 1 GbE Network Ports
- 2 x USB-A 2.0 & 2 x USB-A 3.2 Gen 1
- RAID 0, 1, 5, 6, 10, JBOD Format Support

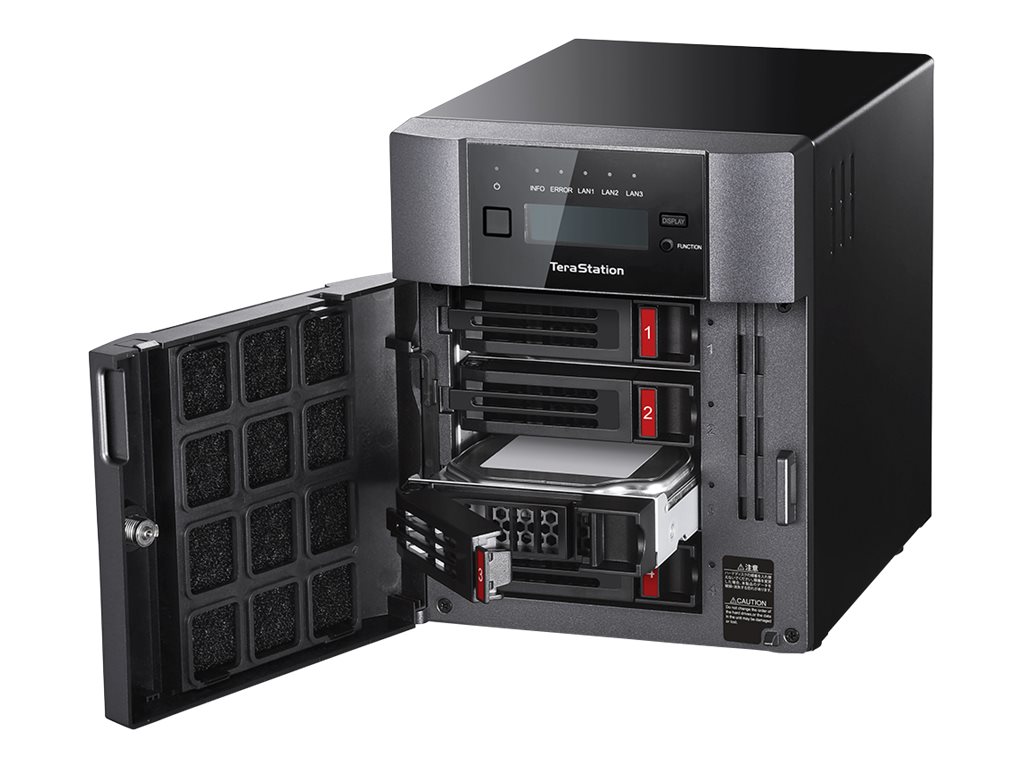

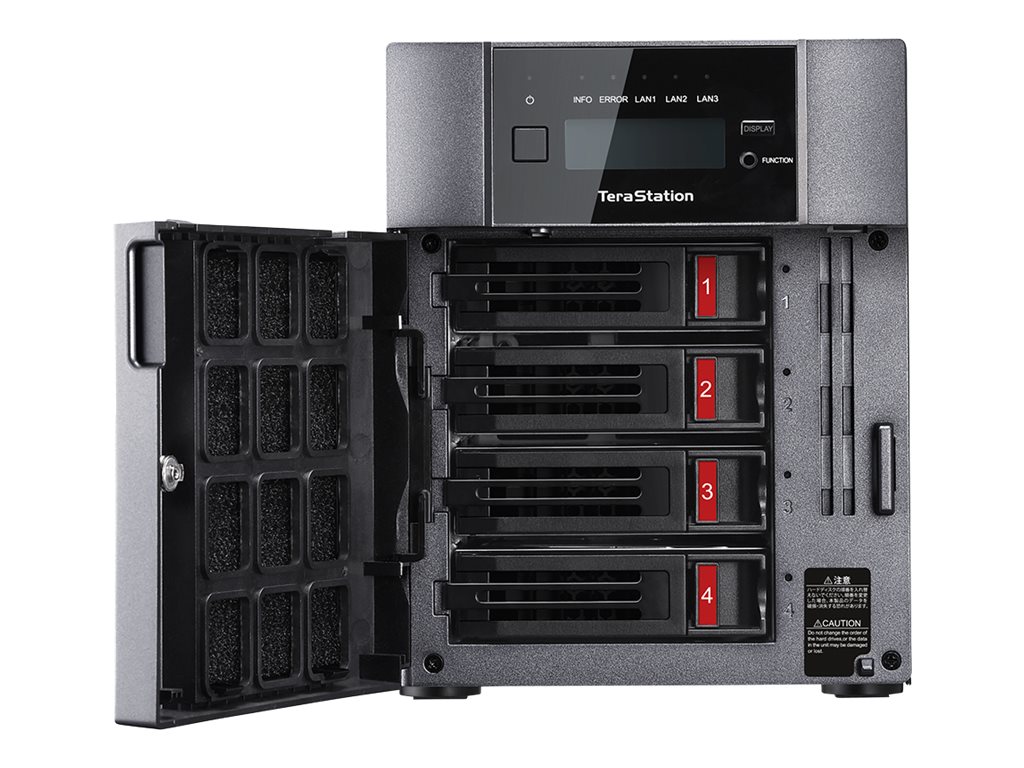

- Hot Swappable Drives
- 256-Bit Drive Encryption
- Windows, Windows Server & macOS Support
Specifications:
| Model | TS5410DN |
| Part Number | TS5410DN1604 |
| From Factor | Desktop |
| Country of origin | Japan |
Internal Hard Drives |
|
| Number of Drive Bays | 4 |
| Number of Included Drives | 4 |
| Capacity Range | 16TB |
| Drive Interface | SATA 6 Gbps |
USB Interface |
|
| Standards Compliance | USB 3.0 |
| Connector Type | A Type |
| Number of Ports | 2x USB 3.0 |
| Data Transfer Rates | 5Gbps |
Performance |
|
| CPU | Annapurna Labs® Alpine Processor AL314 (1.7 GHz Quad-Core) |
| Memory | 4 GB DDR3 with ECC |
Environmental & Power |
|
| Power Consumption |
Max 85W Data Transfer 56W Idling 45W |
| Power Supply | Internal AC 100-240V Universal 50/60Hz |
| Operating Temperature | 32˚ - 104˚F (0˚ - 40˚C) |
| Operating Humidity | 10 - 85% non-condensing |
Shipping |
|
| Product Dimensions (L x W x H) |
9.06 x 6.69 x 8.46 in |
| Product Weight | 15.43 lbs |
| Package Dimensions (L x W x H) | 14.06 x 12.17 x 14.29 in |
| Package Weight | 19.62 lbs |
LAN Interface |
|
| Standards Compliance |
IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) |
| Number of Ports | 1 (10GBASE-T)*, 2 (1000BASE-T) *TS51210RH includes an additional 10GBASE-T port |
| Data Transfer Rates | 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps |
| Supported Protocols | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP |
| Connector Type | RJ-45 |
