BECKHOFF C6930-0080 Control Cabinet Industrial PC Intel Celeron 2.6GHz 4GB RAM

In factories and production lines, a slow or unreliable computer can stop the whole process. When a control cabinet cannot run its software, machines idle and money is lost. The C6930-0080 Control Cabinet Industrial PC gives you a stable, fast computer that works inside the cabinet and keeps your system running. It is built with an aluminum case, IP20 protection and a 2.6 GHz Intel Celeron processor, so it handles data quickly even in a noisy environment.

BECKHOFF C6930-0080 Control Cabinet Industrial PC Intel Celeron 2.6GHz 4GB RAM IP20 with Control

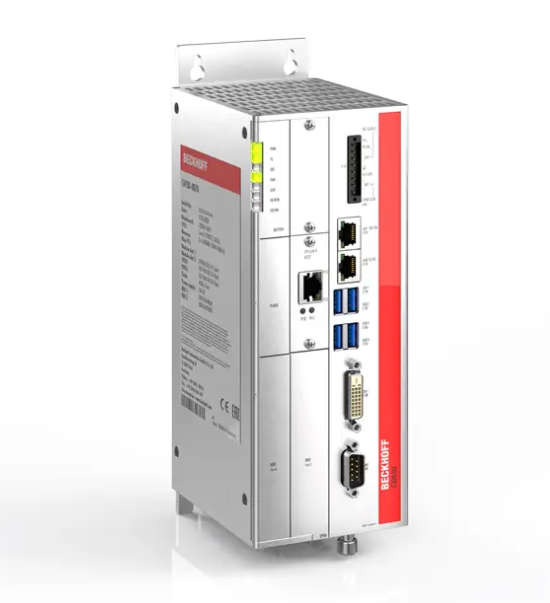

Stop production delays with a computer that is made for control cabinets. The C6930-0080 Control Cabinet Industrial PC Intel Celeron 2.6GHz 4GB RAM IP20 with Control is a compact, rugged computer designed to sit inside a control cabinet. It delivers the processing power you need for real-time monitoring, data logging and machine control. With 4 GB DDR4 RAM and dual Ethernet ports, it connects to sensors and PLCs without lag. If your current PC overheats or cannot fit the tight space, this unit solves the problem by offering a small footprint, built-in cooling space and a reliable IP20 rating.

Usages

Use this PC in any environment where a controller must stay inside a metal cabinet. It works well for assembly line automation, robotic cell management, HVAC system supervision, and energy-meter data collection. The two PCIe slots let you add Beckhoff I/O modules for precise motion control. You can also mount it on the rear wall of the cabinet or on the side wall, giving you flexibility in cramped installations.

Benefits

• Stable operation reduces unexpected downtime, keeping production running smoothly.
• Compact size fits into tight cabinet spaces, freeing room for wiring and other devices.
• Dual Ethernet ports enable fast communication with sensors and PLCs.
• Aluminum housing and IP20 rating protect the system from dust and accidental contact.
• Built-in RAID 1 ensures data is mirrored, so critical logs are not lost.

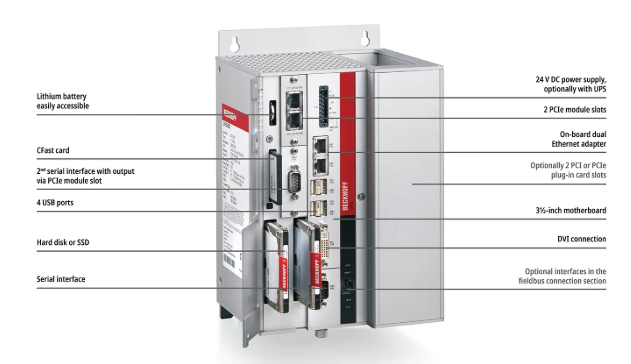

Key Features

• Intel Celeron 6600HE 2.6 GHz dual-core processor.
• 4 GB DDR4 RAM, expandable up to 64 GB.
• Two 2-inch hard-disk/SSD slots and one CFast slot.
• Two PCIe module slots for Beckhoff or custom cards.
• Four USB 3.2 Gen 2 ports for fast peripheral connection.
• One RS232 serial port for legacy equipment.
• One DVI video output for local display.
• Two 100/1000/2500 BASE-T Ethernet ports for high-speed networking.
• On-board SATA RAID 1 controller for data redundancy.
• 24 V DC power input compatible with standard industrial supplies.
• Operating temperature range 0 C to 55 C for harsh factories.
• Dimensions 90 235 121 mm, easy to mount on rear or side wall.
