Product Code: MNHO-276
MPN #: CPAP-SG6600-SNBT

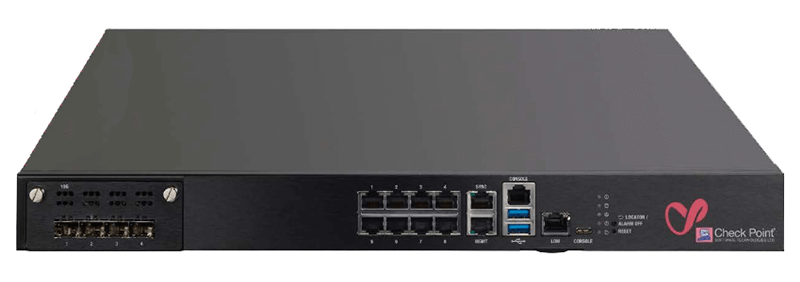

Imagine a network that stops attacks before they reach your servers. The Check Point Quantum 6600 Next-Gen Midsize Enterprise Security Gateway is built for midsize businesses that cannot afford downtime or data loss. It combines firewall, intrusion prevention and advanced threat protection in one compact 1RU box. If your current security tools miss new malware or slow down traffic, this gateway gives you the speed and intelligence you need to keep users safe and productive.
Many midsize companies struggle with slow firewalls and gaps in threat detection. Those gaps let ransomware, phishing and zero-day attacks slip through, putting data and reputation at risk. The problem matters because a single breach can cost thousands of dollars and hours of lost work. This gateway solves the issue by delivering high-speed inspection, built-in SandBlast sandboxing and a full suite of security services in a single appliance. It lets you protect users, meet compliance and keep the network fast.
| Enterprise Testing Conditions | |
| Threat Prevention (Gbps)1 | 3.7 |
| NGFW2 (Gbps) | 6.2 |
| IPS Throughput (Gbps) | 10.14 |
| Firewall Throughput (Gbps) | 18 |
| RFC 3511, 2544, 2647, 1242 Performance (LAB) | |
| Firewall 1518B UDP (Gbps) | 32 |
| VPN AES-128 (Gbps) | 4.9 |
| Connections per Second | 116,000 |
| Concurennt Connections | 2/4/8M |
| Additional Features | |
| Highlights |
6600 Security Gateway Base Configuration, includes 10x 1GbE copper ports, 8 GB RAM, 1 SSD, 1 AC PSU, telescopic rails, |
| Network Expansion Slot Options (1 of 1 slots open) |
8x 10/100/1000Base-T RJ45 port card, up to 18 ports4x 1000Base-F SFP port card, up to 4 ports4x 10GBase-F SFP+ port card, up to 4 ports |
| Content Security | |
| First Time Prevention Capabilities |
CPU-level, OS-level and static file analysisFile disarm and reconstruction via Threat ExtractionAverage emulation time for unknown files that require full sandbox evaluation is under 100 secondsMaximal file size for Emulation is 100 MBEmulation OS Support: Windows XP, 7, 8.1, 10 |
| Applications |
Use 8,000+ pre-defined or customize your own applicationsAccept, prevent, schedule, and apply traffic-shaping |
| Data Loss Prevention | Classify 700+ pre-defined data typesEnd user and data owner incident handling |
| Dynamic User-based Policy |
Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web APIEnforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms |
| Network | |
| Network Connectivity |
Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)802.3ad passive and active link aggregationLayer 2 (transparent) and Layer 3 (routing) mode |
| High Availability |
Active/Active L2, Active/Passive L2 and L3Session failover for routing change, device and link failureClusterXL or VRRP |
| IPv6 | NAT66, NAT64, NAT46CoreXL, SecureXL, HA with VRRPv3 |
| Unicast and Multicast Routing (see SK98226) |
OSPFv2 and v3, BGP, RIPStatic routes, Multicast routesPolicy-based routingPIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3 |
| Power Requirements | |
| Single Power Supply rating | 300W |
| AC power input | 100 to 240V (50-60Hz) |
| Power consumption max | 126W |
| Maximum thermal output | 429.9 BTU/hr. |
| Dimensions | |
| Enclosure | 1RU |
| Dimensions (WxDxH) | 17.2 x 20 x 1.73 in.(438 x 508 x 44mm) |
| Weight | 16.5/17.4 lbs. (7.5Kg) |
| Environmental Conditions | |
| Operating | 0° to 40°C, humidity 95% |
| Storage | –20° to 70°C, humidity 95% |
| Certifications | |
| Safety | UL, CB, CE, TUV GS |
| Emissions | FCC, CE, VCCI, RCM/C-Tick |
| Environmental | RoHS, WEEE, REACH, ISO14001 |
