Product Code: MNHO-275
MPN #: CPAP-SG1570

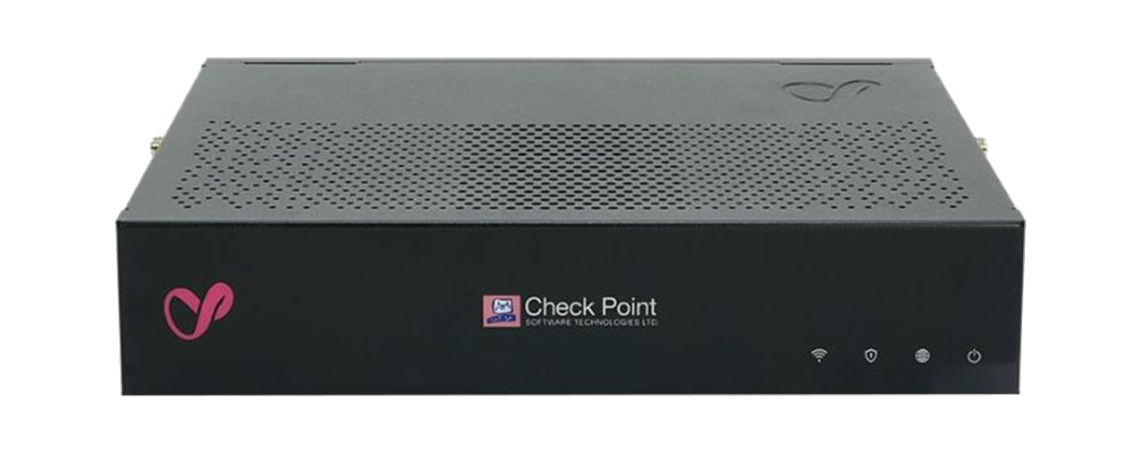

Imagine a small office that loses valuable data because a single cyber attack slips through an old firewall. You need a device that can stop threats before they reach your computers, while still letting employees work fast. The Check Point Quantum Spark 1570 Next-Gen Branch Office Security Appliance is built for exactly that. It protects your network, speeds up internet traffic, and gives you control over every connection.
Many small and mid-size businesses struggle with outdated security gear that cannot keep up with modern malware and ransomware. When the protection fails, downtime and data loss become costly problems. This appliance solves the issue by combining a next-generation firewall, intrusion prevention, and VPN in one compact box. It gives you high-speed threat prevention, easy management, and reliable uptime, so you can focus on growing your business instead of fixing security gaps.
| Enterprise Testing Conditions | |
| Threat Prevention with Smart Accel | 650Mbps |
| Threat Prevention | 500Mbps |
| Next Generation Firewall | 970Mbps |
| IPS Throughput | 1050Mbps |
| Firewall Throughput | 2800Mbps |
| RFC 3511, 2544, 2647, 1242 Performance (LAB) | |
| Firewall 1518 Byte UDP Packets | 6400 |
| VPN AES-128 Throughput | 1950 |
| Connections per Second | 15750 |
| Concurrent Connections | 500,000 |
| Software | |
| Security |
Firewall, VPN, User Aware, QoS, Application Control, URLF, IPS, Anti-Bot, Antivirus, Anti-Spam, sandboxing |
| Unicast, Multicast Routing and Clustering | OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP, ClusterXL High Availability |
| IPv6 |
local network and internet connections, dual stack tunneling IPv4 over IPv6 networks, prefix delegation |
| Mobile Access License (Users) | 200 remote SNX or Mobile VPN client users |
| Hardware | |
| WAN Port | 1x 10/100/1000Base-T RJ-45 port |
| DMZ Port | 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included) |
| LAN Ports | 8x 10/100/1000Base-T RJ-45 ports |
| xDSL Port (optional with Wi-Fi model) | 1 x RJ11 ADSL2 (Annex A or B) and VDSL2 (up to 17a) port |
| Wi-Fi (optional) | 802.11 b/g/n and 802.11 n/ac wave II MIMO 4x4 |
| Radio Band (association rate) | Two radio bands concurrent: 2.4GHz (max 450 Mbps) and 5GHz (max 1,700 Mbps) |
| 3/4G/LTE (optional with Wi-Fi model) | 3/4G/LTE Embedded modem, CAT6 with Main and Auxiliary antennas, Dual SIM (Nano and Micro) |
| xDSL (optional with Wi-Fi model) |
VDSL: G.993.1 (VDSL), G.993.2 (VDSL2), G.993.5 (VDSL2 Vectoring), G.998.4 (G.INP) VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, a nd 17a ADSL: Annex A (POTS), Annex B (ISDN), G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M (ADSL2/2+) ,Annex L Reach-extended (ADSL2) Dying Gasp, DSL Forum TR-067, TR-100, TR-114 Conformity |
| Console, USB ports | Console: 1x USB-C, USB1x USB 3.0: |
| SD Card Slot | Micro-SD slot |
| Dimensions | |
| Dimensions(W x D x H) | Desktop form factor: 210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in. |
| Weight | 0.87 kg (1.9 lbs.) |
| Environment | |
| Operating / Storage | 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing) |
| Power Requirements | |
| AC Input | 100 – 240VAC, 50 – 60 Hz |
| Power Supply Rating | 12V/3.3A 40W power adapter (non-Wi-Fi), 12V/5A 60W power adapter (all Wi-Fi models) |
| Power Consumption (Max) |
26.01W (non-Wi-Fi); 31.28W (Wi-Fi); 35.5W (Wi-Fi-LTE), 3 7.26W (Wi-Fi-DSL) |
| Heat Dissipation (BTU/hr) | 88.75 (non-Wi-Fi); 106.73 (Wi-Fi), 121.13 (Wi-Fi-LTE); 127.14 (Wi-Fi-DSL) |
| Certifications | |
| Safety | CB 62368-1, CE, CE 62368-1, UL 62638-1 |
| Emissions | FCC IC Class B, VCCI, AS/NZS RCM EMC |
| Environment | RoHS, REACH, WEEE |
| Cellular1 | PTCRB, GCF and Carriers AT&T and Verizon certified |
