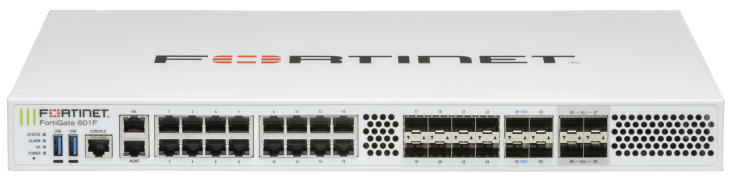

| Description |
4x 25G SFP28 slots, 4x 10GE SFP+ slots, 18x GE RJ45 ports (including
1x MGMT port, 1x HA port, 16x switch ports), 8x GE SFP slots, SPU NP7
and CP9 hardware accelerated, dual AC power supplies
|
| Interfaces and Modules |
|
| Hardware Accelerated GE RJ45 Interfaces |
16 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated 10GE SFP+ / GE SFP Slots |
4 |
| Hardware Accelerated 25GE SFP28/ 10GE SFP+ Ultra Low Latency Slots |
4 |
| GE RJ45 MGMT/HA Ports |
2 |
| USB Ports |
2 |
| RJ45 Console Port |
1 |
| Onboard Storage |
0 |
| Trusted Platform Module (TPM) |
Supported |
| Bluetooth Low Energy (BLE) |
Supported |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix |
|
| IPS Throughput 2 |
14 Gbps |
| NGFW Throughput 2, 4 |
11.5 Gbps |
| Threat Protection Throughput 2, 5 |
10.5 Gbps |
| System Performance and Capacity |
|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
139 / 137.5 / 70 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
139 / 137.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) |
4.12 μs / 2.5 μs* |
| Firewall Throughput (Packet per Second) |
105 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Second (TCP) |
550 000 |
| Firewall Policies |
30 000 |
| IPsec VPN Throughput (512 byte) 1 |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50 000 |
| SSL-VPN Throughput |
4.3 Gbps |
|
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
|
10 000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 |
7500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
840 000 |
| Application Control Throughput (HTTP 64K) 2 |
32 Gbps |
| CAPWAP Throughput (HTTP 64K) |
64.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 50 |
| Maximum Number of FortiSwitches Supported |
128** |
| Maximum Number of FortiAPs (Total / Tunnel) |
1024 / 512 |
| Maximum Number of FortiTokens |
5000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
|
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
15.6 lbs (7.1 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 1 RU |
| AC Power Consumption (Average / Maximum) |
169 W / 255 W |
| AC Power Input |
100–240V AC, 50/60Hz |
| AC Current (Maximum) |
6A@100V |
| Heat Dissipation |
871 BTU/h |
| Redundant Power Supplies (Hot Swappable) |
Yes (comes with 2PSU default) |
| Power Supply Efficiency Rating |
80Plus Compliant |
| Operating Environment and Certifications |
|
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
5% to 90% non-condensing |
| Noise Level |
55 dBA |
| Airflow |
Side and Front to Back |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
