Imagine trying to watch every corner of your parking lot, warehouse or campus with a handful of cameras that miss blind spots. The Cisco Meraki MV93M-HW Outdoor 360 Fisheye IP Security Camera solves that problem. It captures a full spherical view in one device, so you never wonder what happened outside the lens. If you need reliable, all-weather surveillance that reduces hardware cost, this camera is the answer.

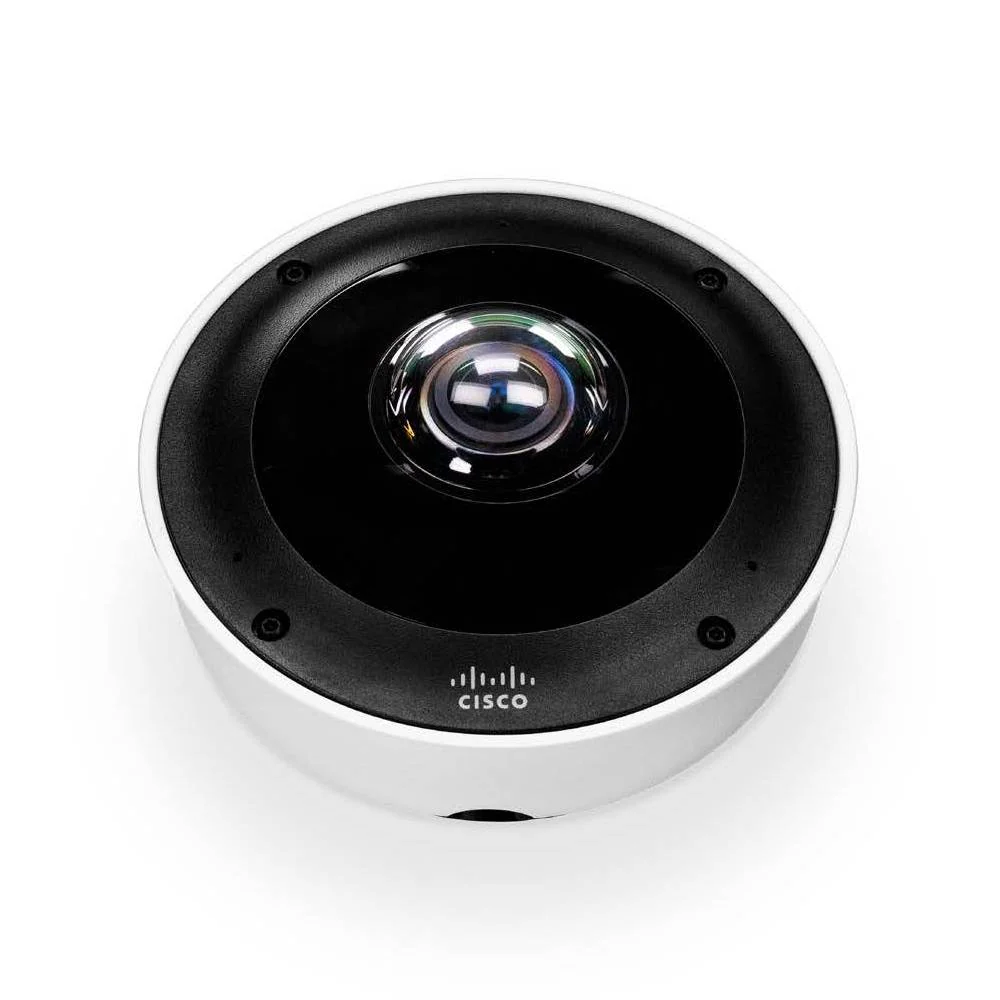

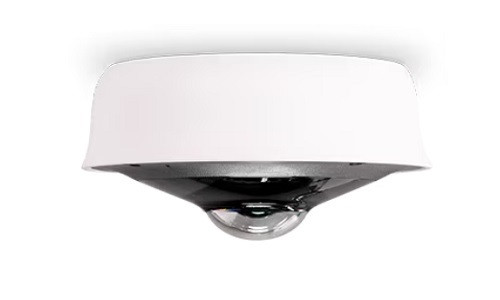

Cisco Meraki MV93M-HW Outdoor 360 Fisheye IP Security Camera
This camera removes the headache of stitching multiple feeds together. When blind spots exist, security gaps can lead to theft, liability or missed evidence. The MV93M-HW gives you a single 360-degree image that is stored locally on a high-endurance SSD and backed up to the cloud. You get instant live view, motion-based retention and strong encryption, so you stay in control without extra equipment. You also get centralized management through the Meraki dashboard, making it simple to view, configure and receive alerts from any device.
Benefits
- Full 360 view eliminates blind spots, so nothing escapes detection.
- Built-in IR lights see up to 20 m at night, keeping you safe after dark.
- Weather-proof housing and heating elements work from -40 C to 50 C, perfect for any climate.
- Edge storage with 512 GB SSD stores video locally, while cloud metadata ensures easy retrieval.
- AES-256 encryption, 2FA and WPA3 protect your footage from hackers.
Key Features
- 12.4 MP 1/2.3 progressive CMOS sensor for crystal-clear images.
- 1.6 mm fisheye lens with f/2.0 aperture gives 180 180 view.
- HDR support delivers detail in bright and dark areas.
- 8 MP 2880 2880 video at up to 15 fps with Smart H.264 codec.
- 4.2 MP 360 overview video at 24 fps for smooth panoramas.
- Three built-in microphones enable audio capture and analytics.
- 802.3at PoE power up to 25.5 W, no separate power needed.
- Dual-band Wi-Fi (2.4 GHz & 5 GHz) with omnidirectional antennas.
- AES-256 full-disk encryption, TLS, and two-factor authentication.
- Cloud-augmented edge storage with motion-based retention scheduling.
Specifications
| Camera Sensor |
1/2.3″ 12.4 MP (4072×3046) progressive CMOS |
| Lens |
High-performance fisheye lens, 1.6 mm focal length, f/2.0 aperture |
| Field of View |
Horizontal 180°, Vertical 180° |
| Shutter Speed |
1/30 s to 1/32,000 s |
| Day/Night Mode |
Auto switching |
| IR Illumination |
Built-in, effective up to 20 m (66 ft) |
| Heating Elements |
Yes, for low-temperature operation |
| Storage |
512 GB high-endurance SSD (MV93M); 256 GB (MV93); 1 TB (MV93X) |
| Video Recording |
8 MP (2880×2880) H.264 Smart Codec, up to 15 fps |
| 360° Overview Video |
4.2 MP (2112×2112) H.264 Smart Codec, up to 24 fps; 1 MP (1080×1080) H.264 Smart Codec, up to 24 fps |
| HDR |
Supported |
| Cloud Storage |
Cloud-augmented edge storage (video locally, metadata in cloud) |
| Retention Management |
Optimized scheduling and motion-based retention |
| Live Streaming |
Direct streaming via native browser; cloud proxy streaming |
| Audio |
Supported, with three built-in microphones |
| DORI (Max Resolution) |
Detect (25 ppm / 8 ppf): 36.7 m / 120.4 ft Observe (63 ppm / 19 ppf): 14.6 m / 47.9 ft Recognize (125 ppm / 38 ppf): 7.3 m / 23.9 ft Identify (250 ppm / 76 ppf): 3.7 m / 12.1 ft |
| Ethernet |
1× 10/100/1000 BASE‑T (RJ45) with DSCP traffic marking |
| Wireless |
2.4 GHz 802.11b/g/n (2.412–2.484 GHz) 5 GHz 802.11a/n/ac (UNII‑1: 5.150–5.250 GHz; UNII‑2: 5.250–5.350 GHz; UNII‑2e: 5.470–5.600, 5.660–5.725 GHz; UNII‑3: 5.725–5.825 GHz) 1×1 spatial stream, 20/40/80 MHz channels, up to 256 QAM, integrated omnidirectional antennas (6.3 dBi at 5 GHz) |
| Power |
25.5 W max via 802.3at PoE |
| Operating Temperature |
–40 °C to 50 °C (–40 °F to 122 °F) |
| Security |
AES-256 full disk encryption, TLS certificates, management encryption, 2FA; wireless: WPA3-Personal, WPA/WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS, TKIP/AES |
| Physical Dimensions |
137.68 mm × 67.9 mm (diameter × height) |
| Weight |
1050 g |
| Connectors & Controls |
Female RJ45 Ethernet, multicolor multifunction status LED, external microphone switch, reset button |
