Ever tried to fit a big GPU into a cramped case and ended up with hot spots and tangled cables? You need a chassis that lets you add fans, radiators and new motherboards without fighting the metal. The Corsair FRAME 5000D RS White Midi Tower gives you flexible fan mounts, a 420 mm radiator space and RapidRoute 2.0 cable routing so you can build a clean, cool system the first time.

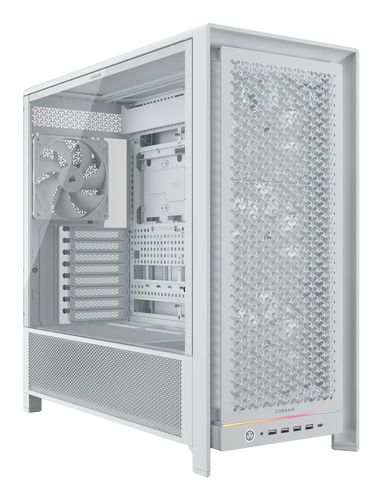

Corsair FRAME 5000D RS White Midi Tower PC ATX EATX Micro ATX Mini-ITX Gaming
This is a white PC Case that fits ATX, EATX, micro-ATX and Mini-ITX boards. It is built for gamers and PC builders who want room for large graphics cards, multiple radiators and easy cable handling. The tempered glass side lets you see the components, while the steel frame holds everything solidly.
Benefits
- Flexible fan mounting lets you target hot zones directly.
- Up to 420 mm radiator space keeps CPUs and GPUs cool.
- RapidRoute 2.0 cable system hides wires for better airflow.
- GPU anti-sag arm protects the slot and card alignment.

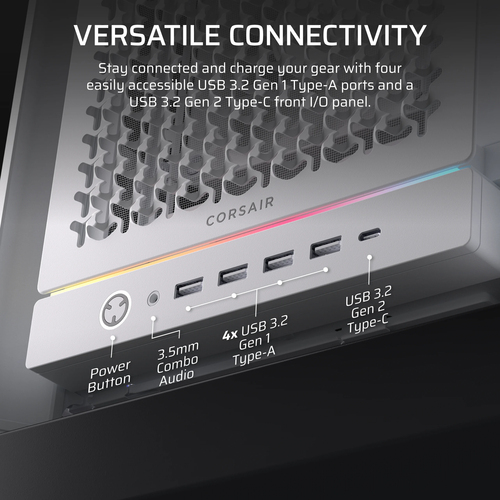

- Modular front I/O panel, a Corsair design for future upgrades.
- White finish and tempered glass give a clean aesthetic.
Features

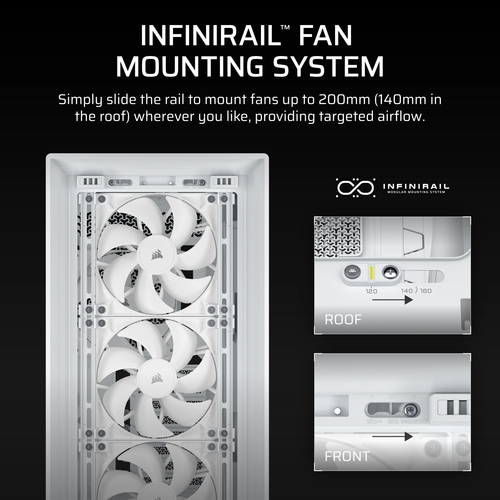

- InfinityRail system supports 200 mm front and roof fans.
- Four RS140 PWM fans included, magnetic dome bearings.

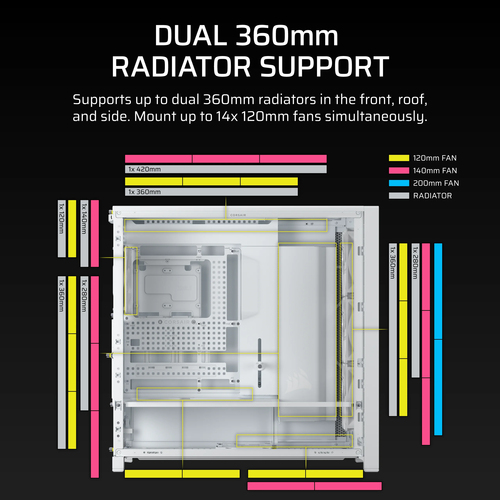

- Three mounting locations for radiators up to 420 mm.
- Eight expansion slots accommodate full-size GPUs.
- Six 2.5" drive bays and two 3.5" bays.
- Side window shows internal lighting and components.
- On/off power button on front panel.
- Weight 15.5 kg, dimensions 542556250 mm.
Specifications
| Design |
| Maximum graphics card length |
45 cm |
| Maximum CPU cooler height |
17.5 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Front |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
8 |
| Number of 2.5" bays |
6 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Product colour |
White |
| Material |
Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Pulse-width modulation (PWM) support |
Yes |
| Top radiator sizes supported |
240,280,360,420 mm |
| Rear radiator sizes supported |
120,240 mm |
| Side radiator sizes supported |
240,280,360 mm |
| Front radiator sizes supported |
240,280,360 mm |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
4 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 140 mm |
| Side fans diameters supported |
120,140 mm |
| Number of side fans supported (max) |
3 |
| Front fans diameters supported |
120,140,200 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 140 mm |
| Storage |
| SSD form factor |
2.5" |
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
| Manual |
Yes |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
15.5 kg |
| Height |
542 mm |
| Depth |
556 mm |
| Width |
250 mm |
