Power outages and voltage spikes can shut down servers, damage data, and halt business work. When a critical system loses power, you can lose hours of productivity and risk data loss. The CyberPower OL1500ERTXL2U Online UPS 1.5 kVA Pure Sine 1350 W gives you clean, uninterrupted power so your equipment stays on and your data stays safe. Its online double-conversion design removes all disturbances and provides pure sine wave output, keeping mission-critical devices running without interruption.

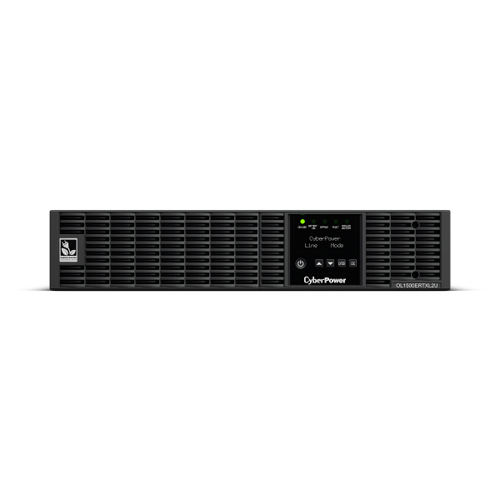

CyberPower OL1500ERTXL2U Online UPS 1.5 kVA Pure Sine 1350 W with CyberPower
Imagine a server room that never freezes when the grid flickers. This unit is a rack-mountable UPS that delivers 1350 W of pure sine power to servers, networking gear, and workstations. If you rely on continuous uptime, any drop in voltage can corrupt files or crash applications. CyberPower solves that risk by instantly converting incoming AC to DC and back to clean AC, so you never see a power dip. It also supports remote monitoring so you can manage power from anywhere.
Usages
The UPS fits into a standard 2U rack, making it perfect for data centers, small office server closets, and remote telecom cabinets. Use it to protect a file server, a network switch, a VoIP PBX, or a high-end workstation that runs CAD or video editing software. It also works well with medical imaging devices or laboratory instruments that need clean power for accurate results.
Benefits
- Keeps servers running during outages, avoiding costly downtime.
- Protects sensitive equipment from voltage spikes and electrical noise.
- Provides pure sine wave output for devices that require clean power.
- Allows remote monitoring and automatic shutdown to prevent data loss.
- Extends runtime with optional XL battery packs for longer work periods.
Key Features
- Online double-conversion topology with zero transfer time.
- 1.5 kVA / 1350 W continuous power rating.
- Pure sine wave output with 3 % THD on linear loads.
- Eight C13 AC outlets for flexible device connections.
- Two Ethernet LAN ports for SNMP/HTTP remote management.
- Hot-swap battery design for easy replacement without power loss.
- LCD display with LED indicators for status monitoring.
- Built-in active cooling fan for reliable operation.
- Emergency Power Off (EPO) connector for safety integration.
- Compatible with PowerPanel Business Edition software for automated shutdown.
- Integrated USB 2.0 port for firmware updates and configuration.
Specifications
| Features |
| Audible alarm modes |
Battery replacement |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload, Short circuit |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| EMI/RFI noise filtering |
Yes |
| Total Harmonic Distortion (THD) (non-linear load) |
5% |
| Total Harmonic Distortion (THD) (linear load) |
3% |
| Emergency Power Off (EPO) |
Yes |
| Output power factor |
0.9 |
| Heat dissipation |
512 BTU/h |
| Response time |
0 ms |
| Surge energy rating |
1780 J |
| Maximum current |
7.5 A |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
300 V |
| Input operation voltage (min) |
190 V |
| Waveform |
Pure sine |
| Output power |
1350 W |
| Output power capacity |
1.5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Emergency Power Off (EPO) connector |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232 ports |
1 |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Cold start |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
5 h |
| Typical backup time at half load |
11 min |
| Typical backup time at full load |
3 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Control type |
Buttons |
| Built-in fan |
Yes |
| Cooling type |
Active |
| Rack capacity |
2U |
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Compliance certificates |
C-TICK, CE, RCM, RoHS |
| Packaging content |
| Manual |
Yes |
| Cables included |
Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
C-TICK, CE, RCM, RoHS |
| Weight & dimensions |
| Weight |
18 kg |
| Height |
88 mm |
| Depth |
430 mm |
| Width |
433 mm |
| Packaging data |
| Package weight |
24.5 kg |
| Package height |
240 mm |
| Package depth |
550 mm |
| Package width |
575 mm |
| Bundled software |
PowerPanel® Business Edition |
| Other features |
| Compatible operating systems |
Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux |
| Operating temperature (T-T) |
0 - 40 °C |
| Overload protection |
Yes |
| Battery type |
RBP0074 |
