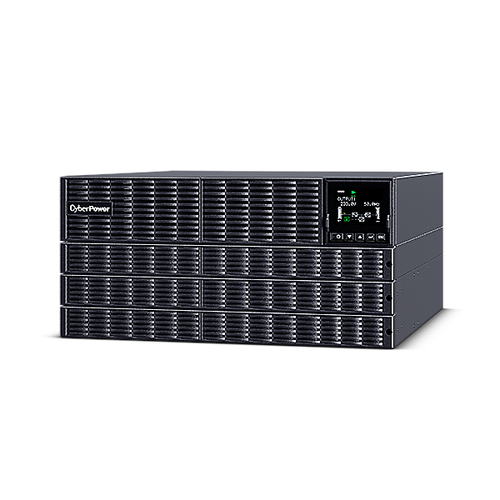

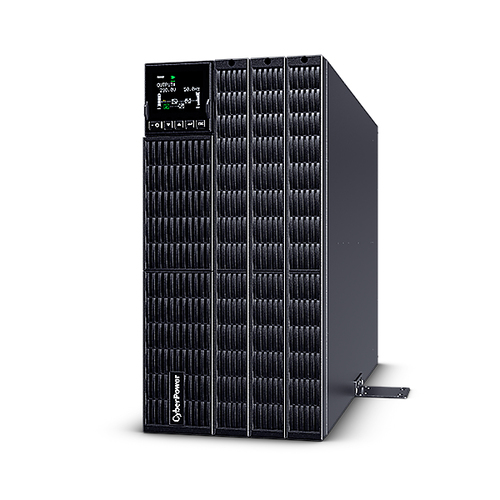

CyberPower OLS6KERT5UM is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.

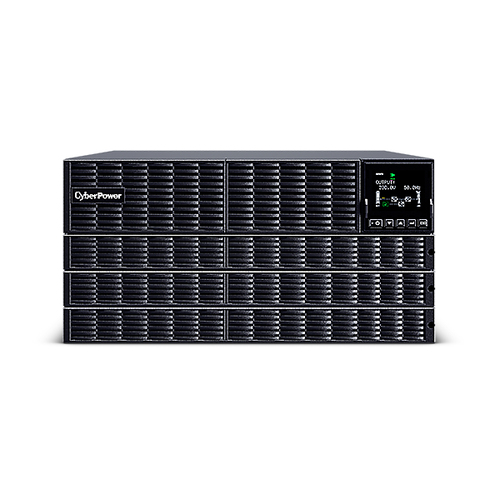

With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.
Specifications
| Features |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| EMI/RFI noise filtering |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Emergency Power Off (EPO) |
Yes |
| ECO mode |
Yes |
| Crest factor |
3:1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Response time |
0 ms |
| Surge energy rating |
1335 J |
| Maximum current |
27.3 A |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
208 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
300 V |
| Input operation voltage (min) |
110 V |
| Waveform |
Pure sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Charging current |
4 A |
| Battery recharge time |
4 h |
| Typical backup time at half load |
23 min |
| Typical backup time at full load |
7.6 min |
| Number of batteries supported |
10 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Operation |
| Display type |
LCD |
| Rack capacity |
5U |
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 1000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, RoHS |
| Packaging content |
| Cables included |
USB cable |
| Weight & dimensions |
| Weight |
68 kg |
| Height |
213.5 mm |
| Depth |
661 mm |
| Width |
433 mm |
| Packaging data |
| Package weight |
79 kg |
| Package height |
650 mm |
| Package depth |
800 mm |
| Package width |
600 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
