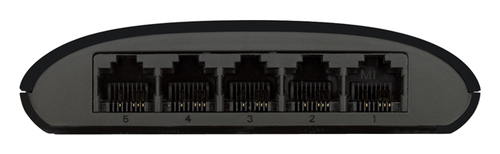

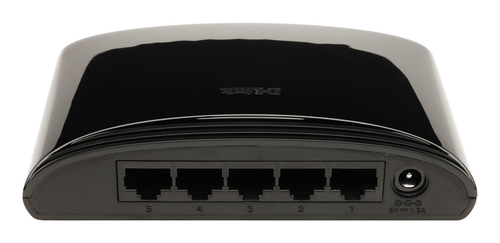

The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch is a five port fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1005D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Auto-Sensing 10/100 Ports
The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Power connector |
DC-in jack |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Flow control support |
Yes |
| MAC address auto-learning supported |
Yes |
| Full duplex |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology |
100Base-TX, 10Base-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
0.046875 MB |
| Maximum data transfer rate |
0.2 Gbit/s |
| Store-and-forward |
Yes |
| Forwarding rate |
0.1488 Mpps |
| Switching capacity |
1 Gbit/s |
| Supported data transfer rates |
10/20/100/200 Mb/s |
| MAC address table |
2000 entries |
| Protocols |
| Data link protocols |
Ethernet, Fast Ethernet |
| Switching protocols |
CSMA/CD |
| Design |
| LED indicators |
Activity, Link, Power |
| Housing material |
Plastic |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Fanless |
Yes |
| Maximum data transfer rate |
0.2 Gbit/s |
| Plug and Play |
Yes |
| Power |
| Power consumption (max) |
3.8 W |
| Power consumption (typical) |
2.5 W |
| Input voltage |
5 V |
| Input current |
1.2 A |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Other features |
| Packet transfer speed |
14880 - 148800 p/s |
| Power LED |
Yes |
| Operational conditions |
| Heat dissipation |
8.528 BTU/h |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Height |
29.1 mm |
| Depth |
83.4 mm |
| Width |
125.3 mm |
| Packaging content |
| Manual |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
170 g |
| Package height |
98 mm |
| Package depth |
105 mm |
| Package width |
65 mm |
| Certificates |
| Certification |
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
