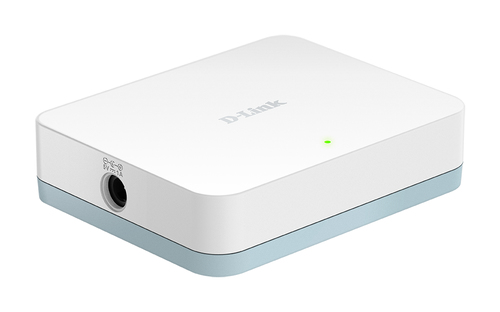

The DGS-1005D 5-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1005D provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (EnergyStar Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1005D 5-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 5-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
Specifications
| Management features |
| Cloud-managed |
No |
| Web-based management |
No |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3 |
| Data transmission |
| Packet buffer memory |
0.112 MB |
| Jumbo frames support |
Yes |
| Maximum data transfer rate |
1 Gbit/s |
| Switching capacity |
10 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Access Control List (ACL) |
No |
| Protocols |
| Data link protocols |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Design |
| Safety |
CSA |
| LED indicators |
Power |
| Housing material |
Plastic |
| Product colour |
White |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Maximum data transfer rate |
1 Gbit/s |
| Power |
| Power consumption (typical) |
4.5 W |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Other features |
| Electromagnetic emissions |
CE Mark, FCC Class B |
| I/O ports |
5x 10/100/1000BASE-T |
| Data transfer rate |
1000 Mbit/s |
| Connectivity technology |
Wired |
| Dimensions (WxDxH) |
142 x 107 x 30 mm |
| Data transfer rate |
1000 Mbit/s |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
80 g |
| Packaging content |
| Batteries included |
No |
| Packaging data |
| Package weight |
222 g |
| Package height |
82 mm |
| Package depth |
116 mm |
| Package width |
100 mm |
| Technical details |
| Master (outer) cases per pallet (air) |
80 pc(s) |
| Master (outer) cases per pallet (sea) |
80 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross weight (air) |
411.6 kg |
| Pallet gross weight (sea) |
411.6 kg |
| Pallet gross width |
120 cm |
| Pallet height (air) |
2.02 m |
| Pallet height (sea) |
2.02 m |
| Products per pallet (air) |
1600 pc(s) |
| Products per pallet (sea) |
1600 pc(s) |
| Products per shipping (inner) case |
20 pc(s) |
| Shipping (inner) case gross weight |
4.91 kg |
| Shipping (inner) case height |
23.5 cm |
| Shipping (inner) case length |
43.2 cm |
| Shipping (inner) case net weight |
3.28 kg |
| Shipping (inner) case width |
25.3 cm |
