| General |
|
| Model |

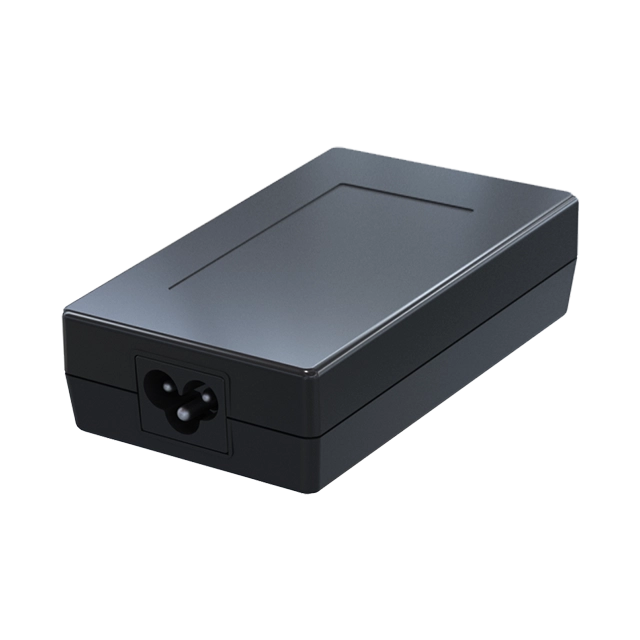

ADP-100XB BD |
| Product Type |
AC-DC Adapter (USB-C Power Delivery) |
| Output Power |
100 W |
| Output Voltage |
5 V, 9 V, 12 V, 15 V, 20 V |
| Output Current |
3 A (5 V, 9 V, 12 V, 15 V), 5 A (20 V) |
| Dimensions (L × W × H) |
108 × 56 × 26.5 mm |
| Weight |
260 g ± 5% |
| Housing |
PC |
| Cooling |
Convection |
| Input Socket |
C6 |
| Output Connector |
USB Type-C |
| Output Cable Length |
1500 ± 30 mm |
| Input |
|
| Input Voltage |
90–264 VAC (100–240 VAC nominal) |
| Input Frequency |
47–63 Hz (50–60 Hz nominal) |
| Input Current |
2 A max. @ 100 VAC |
| Average Efficiency |
≥82.39% (5 V), ≥87.62% (9 V), ≥88.4% (12 V), ≥88.85% (15 V), ≥89% (20 V) @ 115 VAC & 230 VAC |
| No Load Power Consumption |
0.15 W max. @ 115 VAC & 230 VAC |
| Inrush Current |
Fuse I²t <22% @ Cold Start |
| Leakage Current |
50 µA max. @ 240 VAC / 50 Hz |
| Output Performance |
|
| Line Regulation |
±5% |
| Load Regulation |
±5% |
| Ripple & Noise (PARD) |
<180 mV pk-pk (5 V), <210 mV pk-pk (9 V), <250 mV pk-pk (12 V),
<300 mV pk-pk (15 V), <350 mV pk-pk (20 V) @ 25 °C
|
| Turn-on Delay Time |
<3 s @ 115 VAC, 5 V only |
| Rise Time |
<275 ms @ 90–264 VAC, 100% load |
| Hold-up Time |
>5 ms @ 115 VAC, 100% load, 20 V only |
| Peak Load |
>13 V @ 180% load, 2 ms, 100–240 VAC (15 V only); >17 V @ 180% load, 2 ms, 100–240 VAC (20 V only) |
| Protection |
|
| Overvoltage Protection |
<7.5 V (5 V), <11.7 V (9 V), <15.6 V (12 V), <19.5 V (15 V), <26 V (20 V), Latch Mode |
| Overload / Overcurrent Protection |
3.3–3.9 A (5 V, 9 V, 12 V, 15 V), 5.3–6.5 A (20 V), Latch Mode |
| Over Temperature Protection |
Latch Mode |
| Short Circuit Protection |
Latch Mode |
| Protection Against Shock |
Class I |
| Environmental |
|
| Operating Temperature |
0 °C to +35 °C |
| Storage Temperature |
-30 °C to +80 °C |
| Operating Humidity |
5–90% RH (Non-condensing) |
| Operating Altitude |
5,000 m (16,400 ft) |
| Shock Test |
50 G, 11 ms, 1 shock for each direction |
| Vibration |
5–500 Hz, 2.09 Grms, 20 min, one cycle for each of three axes |
| Pollution Degree |
2 |
| Case Temperature Rise |
<50 °C @ 100/240 VAC, 100% load, 25 °C |
| Reliability |
|
| MTBF |
>100,000 hours (115 VAC, 100% load, 25 °C) |
| Expected Capacitor Life |
8,760 hours (100% load, 115 VAC, 25 °C) |
| Safety & Compliance |
|
| Safety Standards |
IEC/EN 62368-1, IEC/EN 60950-1, UL 62368-1, CSA 62368-1, BSMI, PSE, PSB |
| EMC Standards |
EN 55032 Class B, FCC Part 15 Class B, IEC 61000-4-2/-3/-4/-5/-6/-8/-11, IEC 61000-3-2 |
| Isolation Voltage |
Input to Output: 3000 VAC |
