Many people need a reliable way to power small industrial or hobby devices that require 12 V at up to 5 A. When the adapter is weak or unstable, the equipment can shut down, lose data, or even get damaged. This is a big problem for anyone who runs CNC machines, LED panels, or portable medical tools. The Delta Electronics ADT-060A12AA 60W 5A Output Current, Power Adapter gives you a steady 12 V supply, so your devices stay on and work as they should.

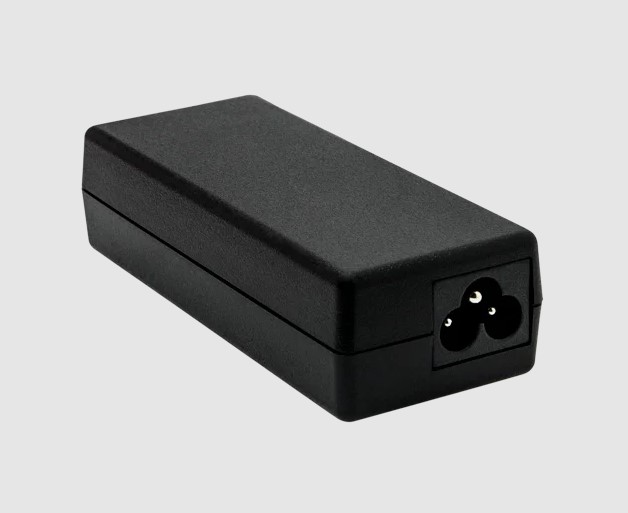

Delta Electronics ADT-060A12AA 60W 5A Output Current, Power Adapter with Delta
This is a compact AC-DC adapter that converts wall power to a clean 12 V, 5 A output. It is built for equipment that cannot tolerate voltage spikes or noise. If you have ever struggled with a flickering screen or a motor that stalls, you know how frustrating it can be. The Delta adapter solves that by delivering 60 W of power with tight regulation and multiple safety protections, keeping your work running smoothly.
Key Features
- 60 W total power, 5 A continuous current.
- Output voltage 12 VDC with 1 % line regulation.
- Convection-cooled PC housing for silent operation.
- UL1571 certified 1200 mm cable, #16 AWG.
- Input socket C6, accepts 85-264 VAC, 47-63 Hz.
- Overvoltage, overload, over-temperature, and short-circuit protection.
- Isolation voltage 3000 VAC for user safety.
- Operating temperature -10 C to +60 C, cold-start at 100 % load.
- MTBF over 700,000 hours, capacitor life 5 years at 50 % load.
- CE, UKCA, CB certifications and compliance with IEC/UL safety standards.
Specifications
| General |
|
| Model |
ADT-060A12AA |
| Product Type |
AC-DC Adapter |
| Output Power |
60 W |
| Output Voltage |
12 VDC |
| Output Current |
5 A |
| Dimensions (L × W × H) |
108 × 46 × 29.5 mm |
| Weight |
180 ±10 g |
| Housing |
PC |
| Cooling |
Convection |
| Output Cable |
1200 mm, UL1571, #16 AWG |
| Input Socket |
C6 |
| Input |
|
| Input Voltage |
85–264 VAC (100–240 VAC nominal) |
| Input Frequency |
47–63 Hz (50–60 Hz nominal) |
| Input Current |
1.4 A max. @ 115 VAC, 1.0 A max. @ 230 VAC |
| Efficiency |
87.6% typ. @ 115 VAC, 90.2% typ. @ 230 VAC |
| Leakage Current |
0.1 mA max. @ 240 VAC / 50 Hz |
| Output Performance |
|
| Line Regulation |
±1% |
| Load Regulation |
±5.0% |
| Combined Regulation |
±8.0% |
| Ripple & Noise (PARD) |
<240 mVpp (0 °C to 40 °C), <480 mVpp (-10 °C to 0 °C) |
| Rise Time |
30 ms typ. |
| Start-up Time |
1000 ms typ. @ 115 VAC, 500 ms typ. @ 230 VAC |
| Hold-up Time |
12 ms typ. @ 115 VAC, 60 ms typ. @ 230 VAC |
| Capacitive Load |
470 µF max. |
| Protection |
|
| Overvoltage Protection |
13.2–18.0 V, Latch Mode |
| Overload / Overcurrent Protection |
5.25–10.00 A, Auto-Recovery |
| Over Temperature Protection |
Latch Mode |
| Short Circuit Protection |
Auto-Recovery |
| Protection Against Shock |
Class II |
| Environmental |
|
| Operating Temperature |
-10 °C to +60 °C (-20 °C cold start @ 100% load) |
| Storage Temperature |
-40 °C to +85 °C |
| Operating Humidity |
5–95% RH (Non-Condensing) |
| Storage Humidity |
5–95% RH (Non-Condensing) |
| Operating Altitude |
Up to 5,000 m |
| Power Derating |
>40 °C: 2.5%/°C, <90 VAC: 2%/V |
| Ball Impact Test |
Test height 130 cm, Steel Ball 500 g |
| Drop Test |
Test height 100 cm, 6 faces, Function test pass after drop test |
| Shock Test |
Half sine wave, 50 G, 11 ms, 1 shock for each of 6 directions |
| Vibration |
5–500 Hz, 2.09 Grms, 20 minutes for X, Y, Z axis |
| Reliability |
|
| MTBF |
>700,000 hours (Telcordia SR-332) |
| Expected Capacitor Life |
5 years (50% load @ 25 °C) |
| Safety & Compliance |
|
| Safety Standards |
IEC/UL/EN 60950-1, IEC/UL/EN 62368-1, Limited Power Source (LPS), BSMI, CCC, PSE, KC |
| EMC Standards |
CISPR/EN/BS EN 55032 Class B, FCC Part 15, ICES-003, ANSI C63.4, GB/T9254-2008, KN32 |
| Isolation Voltage |
Input to Output: 3000 VAC |
| Certifications |
CE, UKCA, CB |
