Delta Eltek Flatpack2 M204EP.0001 Portable Emergency Power Unit
The portable emergency unit is designed to be used in situations with main DC power failure, system replacement, battery replacement or maintenance. Its easy handling, durability and many configuration options should make this unit a must to all service staff.
The portable emergency unit is configurable with up to four Flatpack2 24V, 48V or 60V modules and one Smartpack controller.

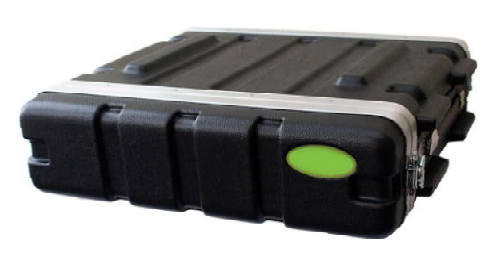

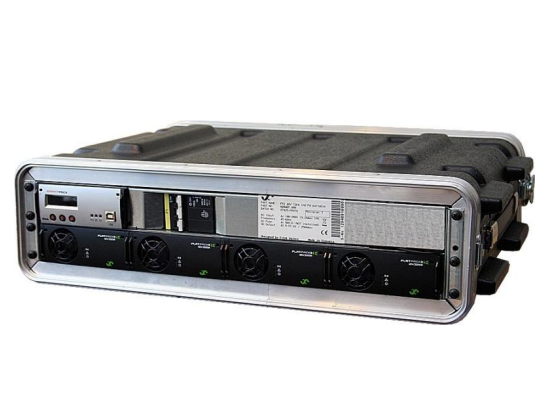

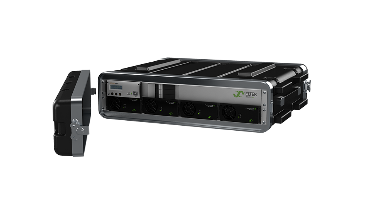

All housed in a hard case with removable lids in back and front for maximum protection during transport. By removing the lids you have easy access to connections, modules, MCB and controller. Individual AC input feed and one protected DC output provides multiple connection options.
Features
- Easy to handle
- Robust
- Configurable with all Flatpack2 24V, 48V and 60V
- Output power from 2 kW to 12 kW
- Smartpack controller
- Individual AC input feed
- DC output busbars with lug connections
- One negative DC output
- Protected by 150A MCB
- Extension alarm card
Specifications
|
Input
|
|
|
Maximum Input AC Voltage
|
300 VAC
|
|
Mains Configuration
|
230 VAC Single Phase; 230 VAC 3 Phase (Δ); 230/400 VAC 3 Phase (Y)
|
|
DC Output
|
|
|
Maximum Current
|
250 ADC
|
|
Maximum Voltage
|
60 VDC
|
|
Maximum Power
|
12 kW
|
|
DC Load Distribution
|
|
|
Breaker Positions (Up to)
|
1
|
|
Breaker Rating (Up to)
|
150 A
|
|
Others
|
|
|
Operating Temperature
|
-40 to 70°C
|
|
Dimensions
|
|
|
Dimensions (W × H × D)
|
530 × 140 × 510 mm (21 × 5.5 × 20.25 in)
|
