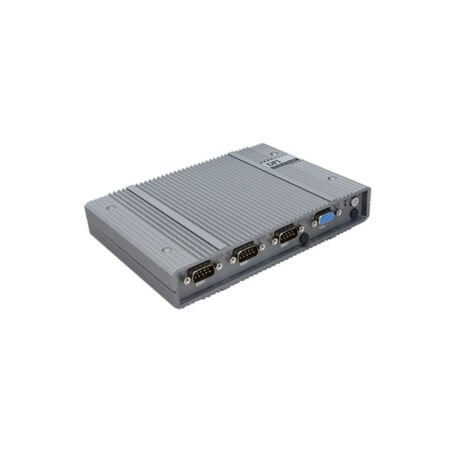

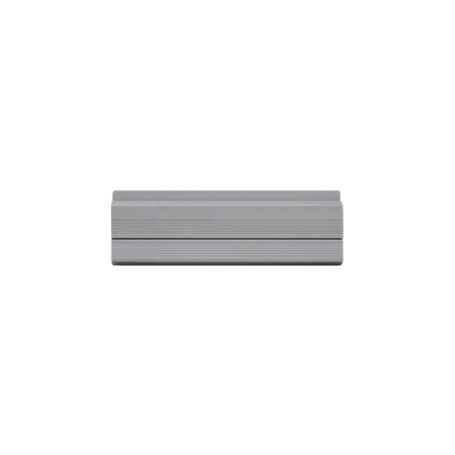

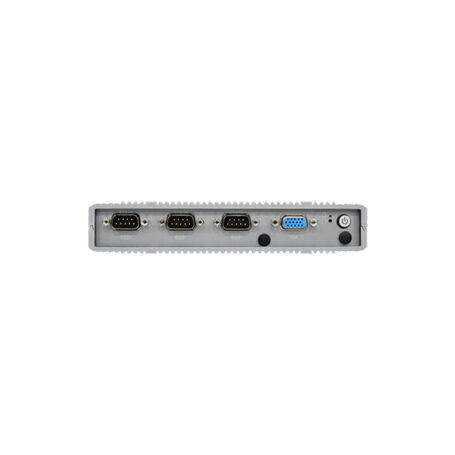

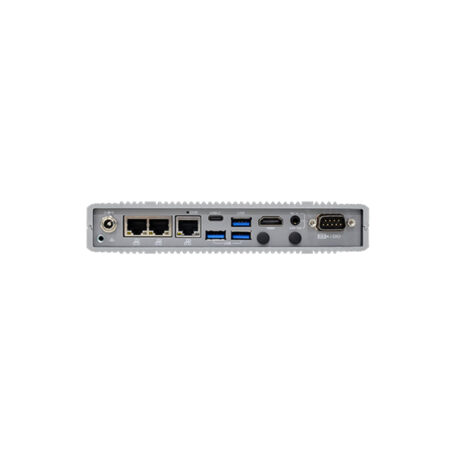

DFI EC700-ADN Ultra-Compact Fanless Embedded System
The DFI EC700-ADN is a, rugged, and compact (33mm height) fanless industrial PC designed for space-constrained edge AI and automation applications. Powered by Intel Alder Lake-N or Atom x7000E processors, this system supports onboard LPDDR5 memory, quad-display capabilities (HDMI/VGA/USB-C), and includes DFI’s Out-of-Band (OOB) management for remote, real-time troubleshooting even during OS failures.
Application:
The EC700-ADN and EC710-ADN are slim, fanless embedded systems powered by Intel® Alder Lake-N processors, offering advanced performance in a compact design. These systems support up to quad displays through HDMI, USB-C, and VGA, making them ideal for multitasking in industrial and IoT environments. Both models feature onboard LPDDR5 memory, integrated eMMC storage, and robust I/O configurations, including multiple USB 3.2, COM ports, and Ethernet with TSN and Intel TCC support.
EC700-ADN and EC710-ADN Designed for versatility, they operate reliably in temperatures from -5°C to 60°C and offer multiple mounting options, including wall, VESA, and DIN rail. With built-in Out-of-Band (OOB) management for hardware monitoring and remote recovery, these systems ensure easy maintenance and high availability. Certified with CE, FCC, RoHS, and UKCA, they are perfect for automation, digital signage, and edge computing applications.
Features:
- Slim fanless design suitable
- Powered by Intel® Alder Lake-N processors
- Supports up to quad displays via HDMI, USB-C, and VGA
- Onboard LPDDR5 memory and integrated eMMC storage
- Out-of-Band (OOB) management enabling remote monitoring and recovery
- Wide operating temperature range from -5°C to 60°C
- Rich I/O with USB 3.2, COM ports, and 2.5GbE Ethernet with TSN support
- Supports Intel TCC and TSN standards for real-time communication
- Multiple mounting options including wall, VESA, and DIN rail
- Certified with CE, FCC, RoHS, and UKCA
