Digi IX40 5G Industrial Router with LTE Cat 19 and Edge Computing

Imagine a factory floor where every sensor, machine and camera stays online even when power flickers or the network drops. The Digi IX40 5G Industrial Router with LTE Cat 19 and Edge Computing is built for exactly that need. It gives you a reliable high-speed connection for critical data, no matter how harsh the environment. If you have ever lost production because a wireless link failed, this router solves that problem.

Digi IX40 5G Industrial Router with LTE Cat 19 and Edge Computing

Many industrial sites struggle with unstable internet, especially in remote or noisy locations. Unreliable connectivity can halt data collection, delay decisions and increase downtime, which costs money and hurts safety. The IX40 router answers this by combining 5G, LTE Cat 19 and edge computing in a single rugged box. It keeps your data flowing, lets you run analytics at the edge, and switches automatically to the best network, so you never lose control of your operations.

Benefits

• Always-on connectivity keeps production lines running without interruption.
• Fast 5G and LTE speeds let you transmit large video or sensor streams in real time.
• Built-in edge computing reduces latency by processing data locally.
• Dual SIM slots provide carrier redundancy for critical applications.

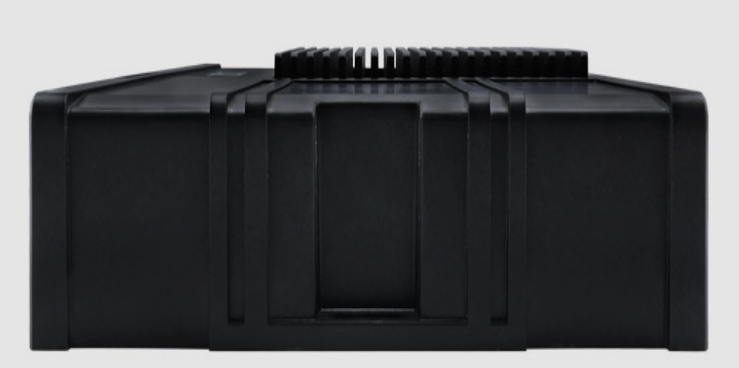

• Rugged enclosure meets industrial standards, so it survives dust, heat and vibration.

Usages

The IX40 fits well in manufacturing plants that need constant machine monitoring. It works in oil and gas sites where explosive atmospheres demand reliable remote control. Smart city projects use it for traffic cameras and public Wi-Fi backhaul. Agriculture farms benefit from its ability to connect field sensors over long distances. Any remote location that requires secure, fast data transfer can rely on this router.

Key Features

• Supports 5G NSA, 5G SA, 4G LTE-Advanced Pro Cat 19 and 3G fallback.
• Two nano-SIM slots with cover plate for carrier flexibility.

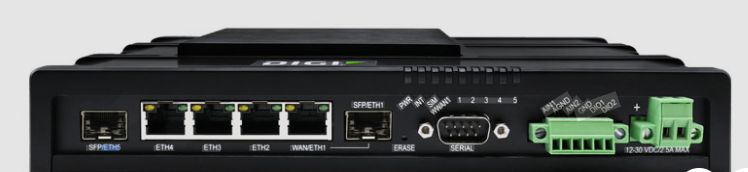

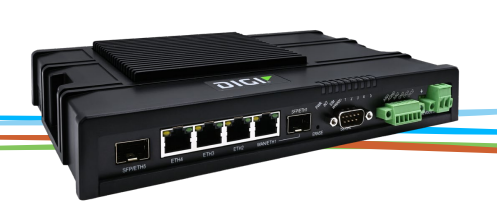

• Four 10/100/1000 Mbps RJ-45 ports, configurable WAN/LAN.
• Two 1 Gb SFP sockets for fiber connectivity.

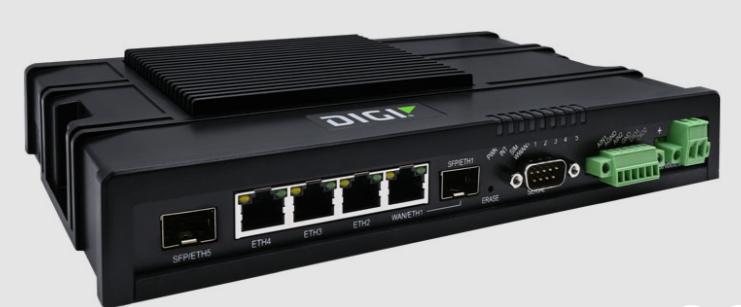

• RS-232/422/485 serial port for legacy equipment.
• Two digital I/O and two analog inputs (0-10 V, 4-20 mA, 12-bit).
• 1.6 GHz quad-core i.MX 8M Plus ARM Cortex-A53 processor.
• 1 GB RAM and 8 GB flash storage for edge applications.
• GNSS Gen 9 receiver with GPS, GLONASS, BeiDou and Galileo.
• Operating temperature from -30 C to 70 C, IP30 rated enclosure.
• Power input 12-30 VDC, low consumption (4.5 W light, 8 W peak).
• Three-year warranty and certifications from PTCRB, FCC, CE and more.
