Power outages can shut down your computer, router, or home office in an instant. The Eaton 3P Ellipse 700 0.7kVA Standby Offline Tower UPS 420W keeps those devices running long enough to save work and shut down safely. It is a compact tower that supplies clean, uninterrupted power to small office equipment and home electronics. If you have experienced lost files or interrupted video calls, this UPS is the answer you need. Installation is quick with the included cable and guide, so you can be up and running in minutes.

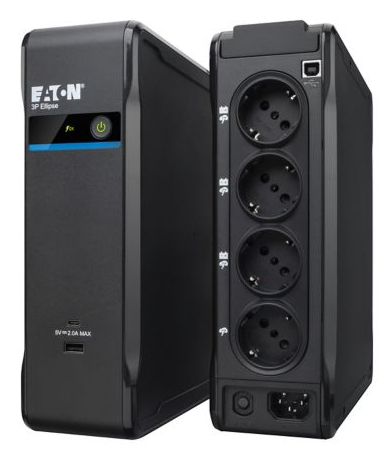

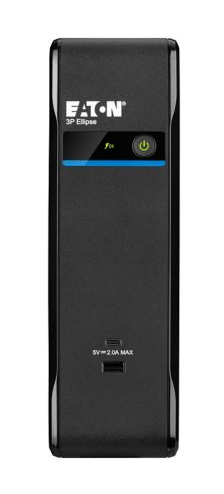

Eaton 3P Ellipse 700 0.7kVA Standby Offline Tower UPS 420W
Unexpected voltage drops or full blackouts can damage sensitive electronics and cause data loss. This matters to anyone who relies on a computer, modem, or medical monitor for daily tasks. The Eaton UPS detects a power problem instantly and switches to its internal battery, delivering a steady 420 W output. Its standby (offline) design means the unit stays silent until it is needed, then provides clean power without spikes. With a 7 Ah battery it can run a typical desktop and router for about 10 minutes, enough to finish a document or switch to backup power.
Usages of Eaton
Use the Eaton UPS in a home office to protect a laptop, monitor, and Wi-Fi router during brief outages. Small retail shops can keep point-of-sale terminals and barcode scanners alive. It is also ideal for network switches, VoIP phones, and security cameras that must stay online. Even a single-room telehealth setup can rely on this unit to keep a medical monitor powered. Teaching labs can protect computers and lab equipment during class demonstrations.
Benefits
- Keeps your work saved by giving you time to shut down safely.
- Prevents damage from power spikes with built-in surge protection.
- Operates quietly at 25 dB, so it does not disturb a quiet office.
- Saves energy with 97 % efficiency, lowering electricity cost.
- Simple LED display shows battery status and alerts instantly.
Key Features
- 420 W continuous output power (0.7 kVA)
- Auto shut-off and automatic battery test
- Lead-acid 12 V, 7 Ah battery with cold-start capability
- Four AC outlets (C1 and C3 couplers)
- USB Type-A and Type-C ports for management
- One Ethernet LAN port for remote monitoring
- Input voltage 220-240 V, 46-70 Hz range
- Compact tower size, 3.9 kg weight
- LED indicator panel for real-time status
Specifications
| Features |
| Auto shut-off |
Yes |
| Surge protection |
Yes |
| Noise level |
25 dB |
| Output power factor |
0.6 |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output operation voltage (max) |
264 V |
| Output operation voltage (min) |
184 V |
| Input frequency |
46/70 Hz |
| Input operation voltage (max) |
264 V |
| Input operation voltage (min) |
184 V |
| Waveform |
Stepwise |
| Output power |
420 W |
| Output power capacity |
0.7 kVA |
| UPS topology |
Standby (Offline) |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port type |
USB Type A/USB Type-C |
| USB port |
Yes |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C1 coupler, C3 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Number of batteries supported |
1 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Lead-Acid |
| Design |
| Display type |
LED |
| Cable length |
1.5 m |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Compliance certificates |
CB, CE, RoHS, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Weight & dimensions |
| Weight |
3.9 kg |
| Height |
263 mm |
| Depth |
235 mm |
| Width |
81 mm |
| Packaging data |
| Package type |
Box |
| Other features |
| Nominal input voltage |
220-240 V |
| Operating temperature (T-T) |
0 - 40 °C |
| Input connection type |
C14 |
