Power cuts and sudden voltage spikes can shut down a computer, a router or a small office printer in seconds. When the equipment stops, you can lose work, miss an important call, or damage sensitive electronics. The Eaton 3P Ellipse 700 Standby UPS 0.7kVA 420W Tower Black gives you a short-term battery backup and clean power so your devices stay on long enough to save files and shut down safely.
Eaton 3P Ellipse 700 Standby UPS 0.7kVA 420W Tower Black with Eaton

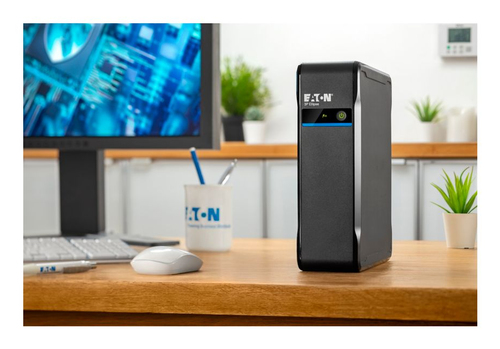

This is a compact tower-style UPS that supplies up to 420 watts of continuous power. It is built for home offices, small workstations and networking gear that cannot afford a sudden loss of electricity. If you have ever watched a screen go black during a storm, you know how stressful that feels. Eaton provides a reliable standby solution that switches to battery in less than a second, protecting your data and keeping your internet connection alive.
Usages
The UPS works well with a desktop PC, a laptop charger, a Wi-Fi router, a small NAS device or a VoIP phone. It can be placed on a desk in a home office, on a shelf in a small business, or under a workbench in a workshop. Because it has four C14 outlets, you can protect several devices at once without extra power strips. It also fits in tight spaces thanks to its slim tower shape.
Benefits
- Provides up to 10 minutes of backup for a typical PC, giving you time to save work.
- Surge protection stops voltage spikes from damaging electronics.
- Quiet operation at 25 dB keeps your workspace peaceful.
- LED display shows battery status and load level at a glance.
- Energy-saving ECO mode runs at 97 % efficiency, lowering electricity cost.
Key Features
- 0.7 kVA / 420 W standby power capacity.

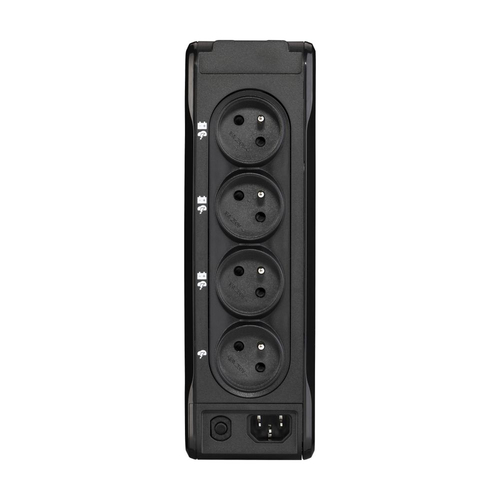

- Four C14 AC outlets for multiple devices.
- Built-in surge protection.
- Low noise level of 25 dB.
- Stepwise output waveform for stable power.
- Battery: 12 V, 7 Ah sealed lead-acid.
- Operating temperature range 0 - 40 C.
- Compact tower form factor, 81 mm wide.
- LED status display.
- Compliance with IEC/EN 62040 standards and CE, UKCA certifications.
Specifications
| Features |
| Surge protection |
Yes |
| Noise level |
25 dB |
| Output power factor |
0.6 |
| Efficiency (ECO mode) |
97% |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
284 V |
| Output operation voltage (min) |
161 V |
| Input frequency |
46/70 Hz |
| Input operation voltage (max) |
284 V |
| Input operation voltage (min) |
161 V |
| Waveform |
Stepwise |
| Output power |
420 W |
| Output power capacity |
0.7 kVA |
| UPS topology |
Standby (Offline) |
| Ports & interfaces |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C14 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Design |
| Display type |
LED |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Compliance certificates |
CB, CE, RoHS, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Packaging content |
| Rack mount kit |
No |
| Weight & dimensions |
| Weight |
3.7 kg |
| Height |
263 mm |
| Depth |
235 mm |
| Width |
81 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
