When the power grid flickers or goes down, your computer, server or networking gear can shut off in seconds. That sudden loss can corrupt files, interrupt work and even damage hardware. For anyone who runs a small office, a home lab or a critical workstation, keeping power stable is essential. The Eaton 5P1150IRG2BS 920W Line Interactive UPS LCD 1U Rack gives you clean, uninterrupted power and protects your equipment from voltage spikes, so you never lose data or productivity.

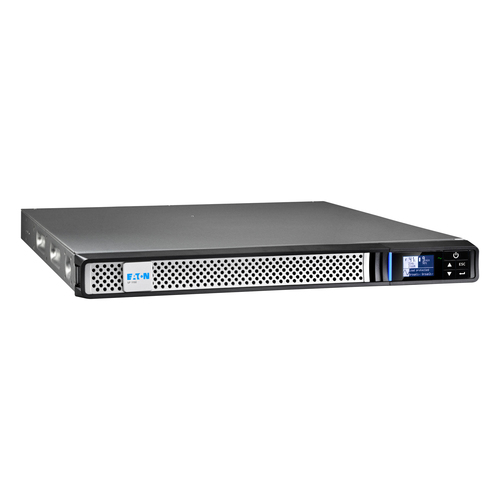

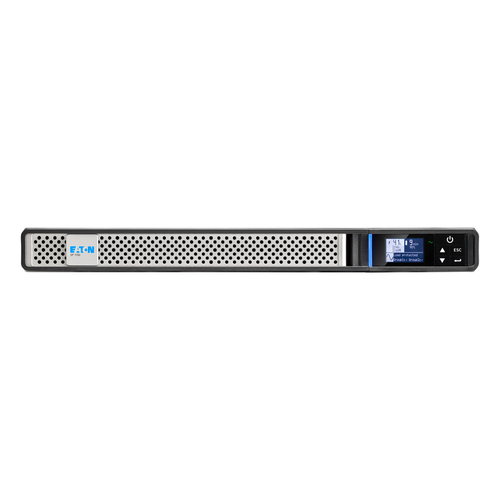

Eaton 5P1150IRG2BS 920W Line Interactive UPS LCD 1U Rack with Eaton
Imagine a tiny box that sits in your rack and instantly steps in when the mains fails. This is a line-interactive UPS made by Eaton, designed to keep up to 920 W of equipment running without interruption. It is perfect for protecting servers, routers, storage arrays and high-end workstations. If you have ever lost a project because the power cut out, you know why a reliable UPS is a must-have.
Usages
The UPS fits in a standard 1U rack, so it works well in data centre rows or compact office cabinets. Use it to protect a small server room, a network closet, a video editing workstation, or a point-of-sale terminal. It also supplies backup power for lab equipment that needs a stable sine wave. Because it has six C13 outlets, you can plug multiple devices and keep them running during short outages.
Benefits
- Instant power backup prevents data loss and downtime.
- Automatic Voltage Regulation smooths out spikes and brownouts.
- LCD display shows battery status, load and runtime at a glance.
- Quiet 35 dB operation keeps the office environment calm.
- High 98.2 % efficiency reduces electricity cost.
Key Features
- 920 W (920 VA) output power.
- Line-interactive topology with AVR.

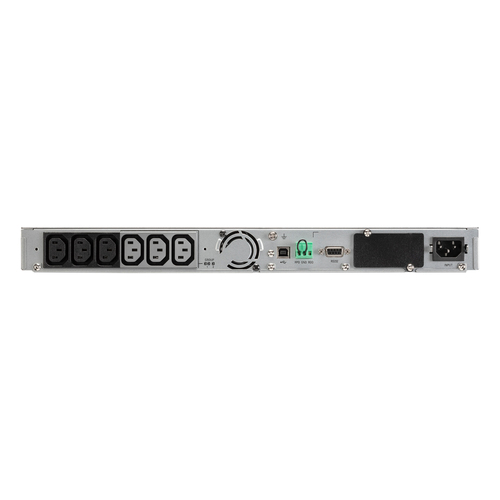

- Six C13 AC outlets for easy device connection.
- LCD panel for real-time monitoring.

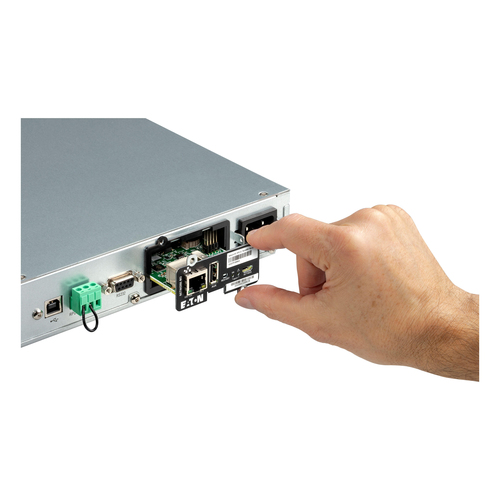

- USB Type-B and RS-232 serial ports for management.
- Supports up to four 6 V, 9 Ah sealed lead-acid batteries.
- Input voltage range 150 V-294 V, 47-70 Hz.
- Output voltage 240 V, sine-wave waveform.
- Compact 1U rack size, 43.2 mm height.
- Weight 14.5 kg, suitable for standard rack shelves.
- Noise level only 35 dB for quiet operation.
- Certified to TUV IEC/EN 62040-1, IEC/EN 62040-2, UL 1778.
Specifications
| Features |
| Noise level |
35 dB |
| Efficiency |
98.2% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
465 BTU/h |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Sine |
| Output power |
920 W |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Number of batteries supported |
4 |
| Battery voltage |
6 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
1U |
| Product colour |
Black, Silver |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus UL 1778 |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
14.5 kg |
| Height |
43.2 mm |
| Depth |
509 mm |
| Width |
438 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
