Power outages and voltage spikes can shut down computers, routers and small servers. When that happens you lose work, miss deadlines and may damage equipment. You need a reliable way to keep your devices running long enough to save data and shut down safely. The Eaton 5P650I Rack Mount UPS 650VA 520W Tower Line-Interactive gives you clean, uninterrupted power and protects against bad voltage, so your work stays safe.

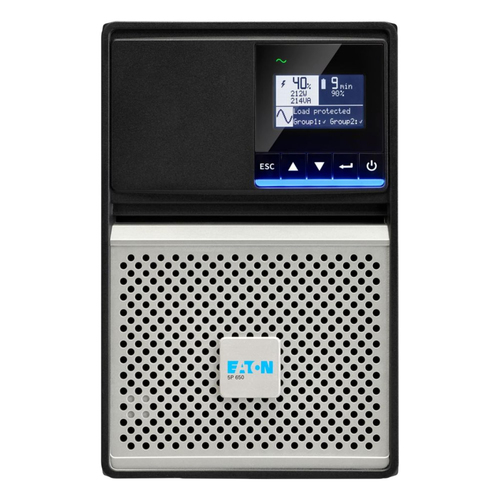

Eaton 5P650I Rack Mount UPS 650VA 520W Tower Line-Interactive with Eaton
Stay online even when the grid fails. This UPS is a compact tower that fits on a desk or in a rack. It supplies 650 VA (520 W) of pure sine-wave power, so sensitive electronics run smoothly. If the mains drops or spikes, the unit switches to battery in milliseconds, giving you time to save files and close programs. Eatons line-interactive technology also corrects minor voltage problems without using the battery, extending runtime.
Usages
Use this UPS for a home office PC, a small network switch, or a desktop server that hosts a website. It works well in a retail point-of-sale system where a sudden loss could stop sales. It also fits in a small lab where test equipment needs clean power. The tower form lets you place it on a shelf, while the rack-mount brackets let you secure it in a server rack.
Benefits
- Protects data by giving you minutes to shut down safely.
- Keeps network devices online, avoiding lost connections.
- Saves energy with 97% efficiency at full load.
- Easy remote monitoring through USB or serial ports.
- Compact tower design saves space in tight rooms.
Key Features
- Line-interactive topology with high-frequency pure sine wave output.
- 650 VA / 520 W power rating for small servers and workstations.
- Adjustable input voltage range 150-294 V, auto-sensing 50/60 Hz.
- Four C13 (10 A) output sockets for easy device connection.
- Lead-acid maintenance-free battery, replaceable for long life.
- ABM+ machine-learning battery management for optimal runtime.
- USB HID and RS232 ports for remote configuration and alerts.
- One expansion slot for optional network or relay card.
- Dimensions 233 150 345 mm, fits on a desk or in a rack.
- Runtime about 9 minutes at half load, 1 minute at full load.
Specifications
| Model Number |
5P650IG2BS |
| Topology |
Line-interactive, High Frequency (Pure Sinewave) |
| Power Rating (VA/W) |
650 VA / 520 W |
| Input Connection |
C14 with BS Input Cord (UK) |
| Output Receptacles |
(4) C13 (10A) |
| Input Voltage Range |
160-294 V (adjustable 150 V-294 V) |
| Output Voltage |
230V default (200/208/220/230/240V) |
| Frequency |
50/60 Hz (Auto-sensing) |
| Efficiency (Max Load) |
97% |
| Battery Type |
Lead-acid maintenance-free (replaceable) |
| Battery Rating |
12 V / 9 Ah (1 unit) |
| Battery Management |
ABM+ (Machine Learning) or constant voltage |
| Runtime (Half/Full) |
~9 min / ~1 min |
| Communication Port |
USB (HID), Serial (RS232) |
| Expansion Slot |
1 slot for optional network/relay card |
| Form Factor |
Tower (Free standing) |
| Dimensions (HxWxD) |
233 x 150 x 345 mm |
