Imagine a sudden power dip that shuts down your server and wipes out hours of work. The Eaton 5P650IRG2 650VA 520W Line Interactive Rack UPS 1U is built to stop that from happening. It is a compact 1U rack-mount UPS that gives you clean, reliable power for critical equipment. If you have ever lost data or faced downtime because of an unexpected outage, this UPS is the safety net you need.

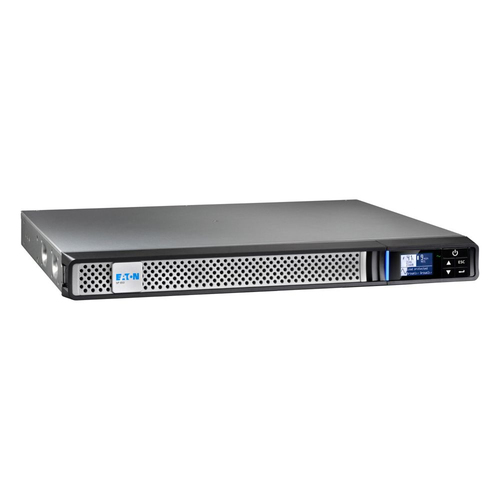

Eaton 5P650IRG2 650VA 520W Line Interactive Rack UPS 1U
Power fluctuations can damage hardware and interrupt business processes. When a data center or network rack loses power, the cost is not just equipment repair but lost productivity and unhappy customers. This Eaton UPS detects voltage changes, corrects them, and supplies battery power long enough to keep your devices running or shut them down safely. Its line-interactive technology, 98% efficiency, and pure sine wave output give you a stable source that protects servers, switches, and storage devices.
Usages of Eaton
The 5P650IRG2 fits neatly into a standard 19-inch rack and is perfect for small to medium server rooms. Use it to protect a single server, a network switch, a storage array, or a set of VoIP phones. It also works well in edge locations where space is limited, such as remote offices or telecom cabinets. Any equipment that needs up to 520 W of clean power can benefit from this UPS.
Benefits
- Stops data loss by providing up to 9 minutes of backup at half load.
- Reduces hardware stress with pure sine wave output and low 40 dB noise.
- Saves floor space thanks to a 1U rack-mount design.
- Easy management via LCD display, USB, and RS-232 ports.
- Quick battery replacement with hot-swap capability.
Key Features
- 650 VA / 520 W capacity for small-to-medium loads.
- Line-interactive topology corrects voltage swings instantly.
- Pure sine wave output protects sensitive electronics.
- Four C13 AC outlets provide flexible plug-in options.
- LCD panel shows load, battery status, and alarms.
- USB 2.0 and RS-232 ports enable remote monitoring.
- Automatic battery test ensures readiness.
- Hot-swap battery design minimizes downtime.
- 98 % efficiency reduces energy waste.
- 40 dB quiet operation suitable for office environments.
- Complies with IEC/EN 62040-1, UL 1778, CE, and other safety standards.
- Includes rack-mount kit for fast installation.
Specifications
| Features |
| Noise level |
40 dB |
| ECO mode |
No |
| Efficiency |
98% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
160 V |
| Waveform |
Pure sine |
| Output power |
520 W |
| Output power capacity |
0.65 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
4 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at half load |
9 min |
| Typical backup time at full load |
2 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
1U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Certificates |
| Certification |
IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Packaging content |
| Rack mount kit |
Yes |
| Safety regulation & standards |
| Safety |
IEC/EN 62040-1, UL 1778 |
| Weight & dimensions |
| Weight |
8.6 kg |
| Height |
43.2 mm |
| Depth |
361 mm |
| Width |
438 mm |
| Packaging data |
| Bundled software |
Intelligent Power Software suite |
| Management card included |
No |
| Other features |
| Mac compatibility |
No |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 35 °C |
| Input connection type |
IEC C14 |
