Imagine the lights go out while you are working on an important report. A sudden loss of power can erase unsaved data, stop a video call, or even damage delicate electronics. The Eaton 5P650IRG2BS Line-Interactive UPS 0.65 kVA 520 W Sine is built to stop that from happening. It gives you clean, uninterrupted power for computers, routers, small servers and other critical devices. If you need reliable protection against outages, this UPS is the answer.
Eaton 5P650IRG2BS Line-Interactive UPS 0.65 kVA 520 W Sine
Power spikes and brief blackouts are a daily risk in many workspaces. When the supply falters, equipment can shut down abruptly, leading to lost productivity and possible hardware failure. This problem matters because every minute of downtime can cost time and money. The Eaton UPS detects voltage changes and instantly switches to its battery, delivering a smooth sine wave output. It keeps your devices running long enough to save work and shut down safely.
Usages of Eaton
The UPS fits in a home office to protect a desktop PC and a Wi-Fi router. Small businesses can mount it in a rack to safeguard point-of-sale terminals and a network switch. It is also ideal for a mini server that hosts files or runs a web service. Healthcare clinics use it to keep monitoring equipment online. Anywhere that needs a few hundred watts of clean power, this unit can be the safety net.
Benefits
- Instant battery backup prevents data loss during outages.
- Quiet 35 dB operation lets you work in a calm environment.
- High 97 % efficiency reduces electricity waste and saves cost.
- Four C13 outlets let you connect multiple devices at once.
- LCD display shows battery status, load level and alerts.
Key Features
- Line-interactive topology for stable voltage regulation.
- Sine wave output protects sensitive electronics.
- 0.65 kVA / 520 W capacity suitable for small loads.
- Input voltage range 160-294 V, output range 200-240 V.
- Battery: 9 Ah lead-acid, automatic test feature.

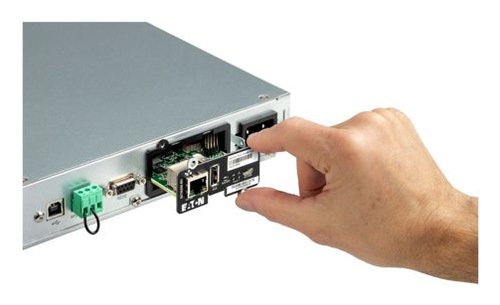

- RS-232 serial port and USB for monitoring and control.
- Four AC outlets with C13 couplers, plus C14 power plug.

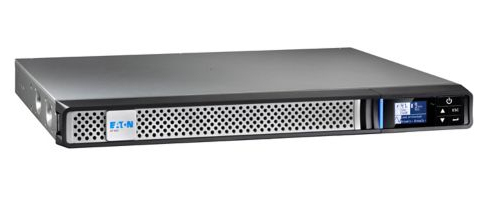

- Rackmount design, 43.2 mm height, fits standard 19-inch racks.
- Operating temperature 0-40 C, humidity up to 90 %.
- Compliant with CE, BIS, RoHS and other safety certifications.
Specifications
| Features |
| Noise level |
35 dB |
| Output power factor |
0.8 |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
160 V |
| Waveform |
Sine |
| Output power |
520 W |
| Output power capacity |
0.65 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
4 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Battery voltage |
6 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Lead-Acid |
| Design |
| Display type |
LCD |
| Product colour |
Black, Silver |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Compliance certificates |
BIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Weight & dimensions |
| Weight |
8.86 kg |
| Height |
43.2 mm |
| Depth |
361 mm |
| Width |
438 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
