Imagine losing your work because the power flickers for a second. That small outage can shut down a computer, a router, or a medical device in an instant. The Eaton 5P850IRG2BS Line-Interactive UPS 680W Sine Output is built to stop that from happening. It keeps your equipment running long enough to save files, finish a print job, or safely shut down. If you need reliable power protection at home or in a small office, this UPS is the answer.
Eaton 5P850IRG2BS Line-Interactive UPS 680W Sine Output
Power spikes, brownouts, and brief blackouts can damage sensitive electronics and cause data loss. Those problems matter because they lead to costly repairs, lost productivity, and frustration. This Eaton UPS detects voltage changes and instantly corrects them with its line-interactive technology. It supplies clean sine-wave power, so your devices run smoothly even when the grid is unstable. The result is peace of mind and uninterrupted work.
Benefits
- Protects computers and servers from sudden power loss.
- Keeps internet routers online during short outages.
- Provides clean sine-wave output for sensitive medical equipment.
- Reduces energy waste with 98% efficiency.
- Quiet operation at only 35 dB, so it wont disturb the office.
Usages
This UPS fits well in a home office, protecting a desktop PC, monitor, and Wi-Fi router. Small businesses can use it for point-of-sale terminals, network switches, or a single server rack. It also works for telehealth stations where a stable power source is critical. Because it is a 1U tower, it can be placed on a desk or mounted in a shallow rack, making it flexible for many environments.
Key Features
- 680 W continuous output power with sine-wave waveform.
- Line-interactive topology with Automatic Voltage Regulation.
- Four C13 AC outlets for easy device connection.
- LCD display shows battery status and load level.

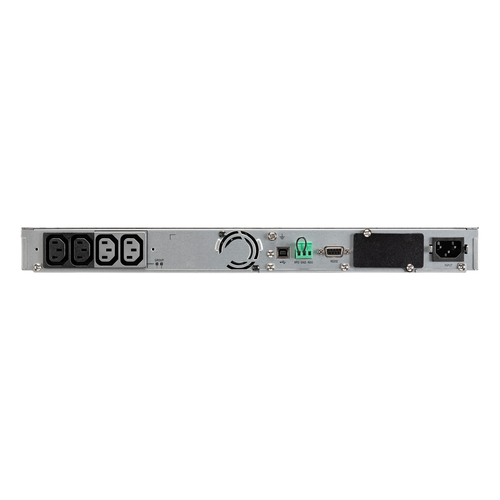

- USB Type-B and RS-232 ports for monitoring and control.
- Supports up to four 6 V, 7 Ah sealed lead-acid batteries.
- Input voltage range 150 V-294 V, output up to 240 V.
- Operating temperature 0 C-40 C and humidity up to 90%.
- Compact 1U tower design, 14 kg weight, fits tight spaces.
- Certified to TUV IEC/EN 62040-1, IEC/EN 62040-2, UL 1778 standards.
Specifications
| Features |
| Noise level |
35 dB |
| Efficiency |
98% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Heat dissipation |
307 BTU/h |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Sine |
| Output power |
680 W |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
4 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Number of batteries supported |
4 |
| Battery voltage |
6 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
1U |
| Product colour |
Black, Silver |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
TUV IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus UL 1778 |
| Weight & dimensions |
| Weight |
14 kg |
| Height |
43.2 mm |
| Depth |
509 mm |
| Width |
438 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
