When the electricity stops, computers, routers and small office equipment can shut down in seconds. That loss can cause data corruption, interrupted work and unhappy customers. The problem matters because even a short outage can damage files or halt a sale. The Eaton 5PX G2 UPS, 1.44 kVA Line-Interactive, Pure Sine, 120-230 V gives you clean, backup power so your devices stay on long enough to save work and keep services running.

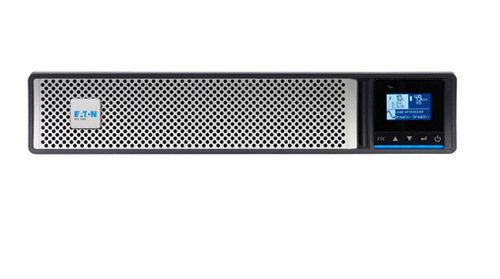

Eaton 5PX G2 UPS, 1.44 kVA Line-Interactive, Pure Sine, 120-230 V with Eaton
This is a compact rack-mount or tower UPS that supplies 1.44 kVA of pure sine wave power. It is built for small servers, networking gear and desktop computers. If you have experienced a sudden power cut, you know how quickly a system can crash. Eaton provides a reliable bridge between the grid and your equipment, protecting against outages, voltage spikes and brownouts.
Usages
The UPS fits in a 2U rack or can stand on a desk as a tower. It is ideal for a small server room, a remote office, a home office or a workshop where a PC runs CNC software. You can connect up to six NEMA 5-15R outlets for computers, switches, routers, NAS devices and medical monitors. The unit also works well with point-of-sale terminals that need uninterrupted power during busy hours.
Benefits
- Provides up to 15 minutes of backup at half load, enough to save work and shut down safely.
- Pure sine wave output protects sensitive electronics from distortion.
- Line-interactive design corrects voltage fluctuations without using battery power.
- Easy-to-use LCD display shows battery status, load level and alerts.
- Compact 2U depth saves rack space while still offering high power density.
Key Features
- 1.44 kVA (1440 W) continuous output.
- Line-interactive topology with automatic voltage regulation.
- Pure sine wave waveform for clean power.
- Six NEMA 5-15R outlets for flexible device connections.
- LCD screen with real-time monitoring.
- RS-232 and USB Type-B ports for management and firmware updates.
- Optional Gigabit Network Card for secure remote monitoring.
- Four external battery module slots for extended runtime.
- Reduced depth (447 mm) for high-density rack installations.
- Sealed lead-acid 48 V battery with 5-minute full-load backup.
Specifications
| Features |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
230 V |
| Input operation voltage (min) |
120 V |
| Waveform |
Pure sine |
| Output power |
1440 W |
| Output power capacity |
1.44 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| RS-232 ports |
1 |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Battery |
| Typical backup time at half load |
15 min |
| Typical backup time at full load |
5 min |
| Battery voltage |
48 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Rack mount kit |
Yes |
| Weight & dimensions |
| Weight |
23 kg |
| Height |
86.4 mm |
| Depth |
447 mm |
| Width |
436.9 mm |
