Power cuts and voltage spikes can shut down computers, servers, and networking gear. When this happens you lose work, risk data loss, and may damage expensive hardware. The Eaton 5PX1000IRT2UG2BS Line-Interactive 1 kVA Rackmount/Tower UPS gives you clean, uninterrupted power so your devices stay on and safe. It also protects against over-discharge and keeps your equipment running long enough to save files and shut down properly.

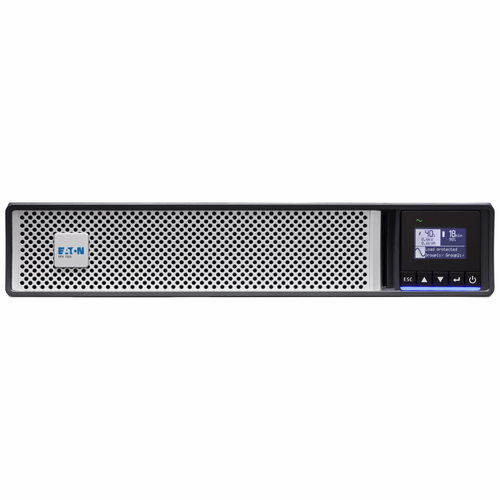

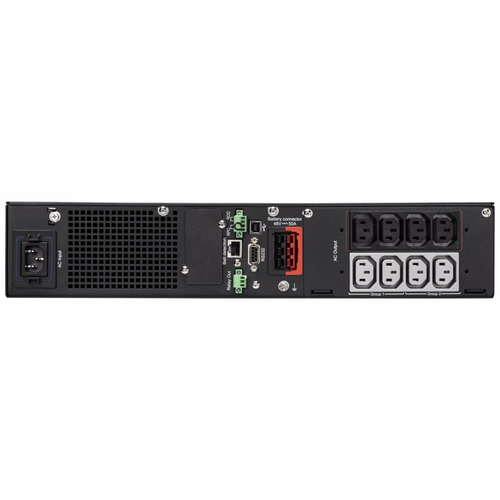

Eaton 5PX1000IRT2UG2BS Line-Interactive 1 kVA Rackmount/Tower UPS with Eaton
Never lose a minute of work again. This UPS from Eaton is a line-interactive unit that delivers up to 1 kVA of clean power. It is built for small servers, networking switches, and desktop computers that need reliable backup. If a blackout or voltage dip hits your office, the unit steps in instantly, preventing data loss and hardware damage. Eatons reputation for quality means you get a trusted solution that fits both rack and tower installations.
Usages
Use this UPS in a server room to keep critical applications online during short outages. Place it on a desk to protect a workstation that runs design software or accounting programs. It works well in a small business network cabinet, providing backup for routers, switches, and VoIP phones. The rackmount form lets you mount it in standard 19-inch racks, while the tower option lets you stand it on a shelf in a home office.
Benefits
- Keeps your computer and server running during outages.
- Saves your work by giving you time to shut down safely.
- Protects hardware from voltage spikes and brownouts.
- Reduces downtime and keeps your business online.
- Low noise level lets you work in quiet environments.
Key Features
- 1 kVA (1000 W) line-interactive power rating.
- Automatic Voltage Regulation (AVR) corrects minor fluctuations.
- LCD display shows status, load, and battery life.
- 8 C13 AC outlets for easy device connection.
- RS-232 serial port and USB Type-B for remote monitoring.
- Over-discharge protection extends battery life.
- 40 dB operating noise for quiet rooms.
- Supports up to four 12 V sealed lead-acid batteries.
- Input range 150-294 V, output 200-240 V, 50/60 Hz.
- Rackmount design fits standard 19-inch racks, also works as a tower.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
1 |
| Power factor |
1 |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Sine |
| Output power |
1000 W |
| Output power capacity |
1 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Number of batteries supported |
4 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Product colour |
Black, Silver |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm Ukr UKCA |
| Compliance certificates |
CE, REACH, RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
19.8 kg |
| Height |
240 mm |
| Depth |
585 mm |
| Width |
498 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
