Power outages and voltage spikes can shut down computers, damage data and cause costly downtime. For a small office or a home workspace, losing a few minutes of work can mean missed deadlines and lost revenue. The Eaton 5PX2200IRT3UG2BS 2.2 kVA Line-Interactive UPS Tower/Rackmount gives you clean, uninterrupted power so your devices stay on and your data stays safe.

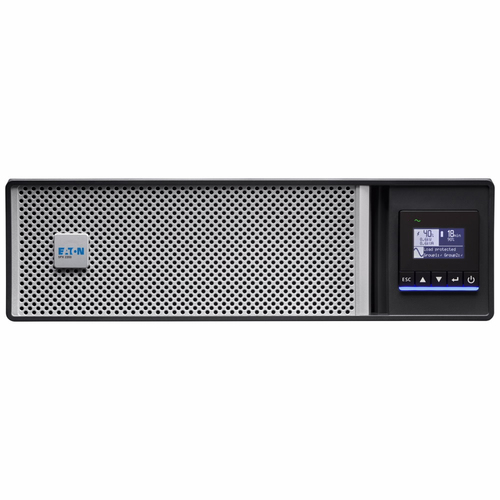

Eaton 5PX2200IRT3UG2BS 2.2 kVA Line-Interactive UPS Tower/Rackmount with Eaton
You need a reliable backup that fits both a tower on a desk and a rack in a server room. This UPS from Eaton delivers 2.2 kVA of power, smooths out voltage fluctuations and switches to battery in less than a second. If a blackout hits, your computers, routers and monitors keep running long enough to save work and shut down safely. Eatons reputation for quality means you get a product that meets strict safety standards and lasts for years.
Usages
The UPS works well in a small office server closet, protecting a single server and its networking gear. It can sit on a desk to keep a desktop PC, a printer and a Wi-Fi router alive during short outages. It also fits in a medical clinic to safeguard patient-record computers. Home-based creators use it for video-editing workstations, ensuring no loss of unsaved files.
Benefits
- Instant power switch protects against data loss.
- Automatic voltage regulation keeps equipment safe from spikes.
- Quiet operation (40 dB) does not disturb the workspace.
- 10 AC outlets let you plug many devices at once.
- LCD display shows battery status and load in real time.
Key Features
- 2.2 kVA (2200 W) output power.
- Line-interactive topology with AVR.
- Input voltage range 150-294 V, output 200-240 V.
- Sine-wave output for sensitive equipment.
- One RS-232 serial port and one USB Type-B port for monitoring.

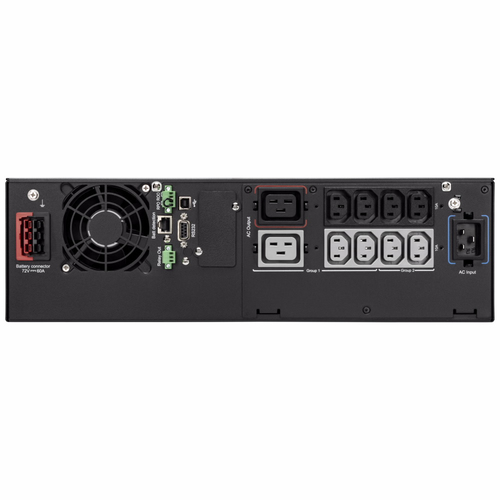

- 10 AC outlets (C13 and C19 couplers).
- Supports up to six 12 V, 7 Ah sealed lead-acid batteries.
- Six-minute full-load backup time.

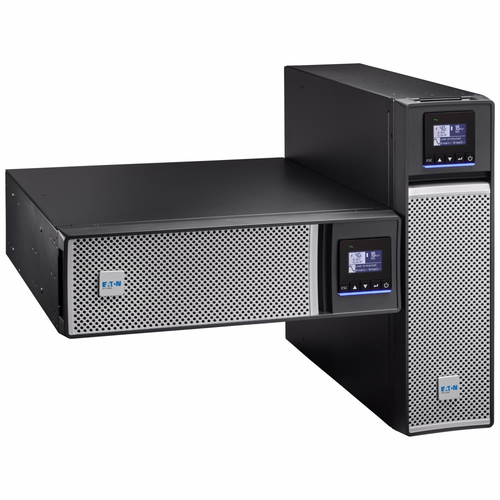

- Rackmount kit included; also works as a tower.
- CE, UL, ENERGY STAR and other certifications.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
1 |
| Power factor |
1 |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Sine |
| Output power |
2200 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Typical backup time at full load |
6 min |
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr |
| Compliance certificates |
CE, REACH, RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
28.7 kg |
| Height |
290 mm |
| Depth |
770 mm |
| Width |
588 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
