Tired of sudden power cuts that shut down your servers and lose data? The Eaton 5PX3000IRT2UG2 3 kVA Line-Interactive UPS Pure Sine 160-294 V gives you clean, uninterrupted power so your equipment stays on and safe. It is built for small to medium IT rooms where a single outage can mean lost productivity and costly repairs. This UPS solves that problem by delivering reliable backup and protection.

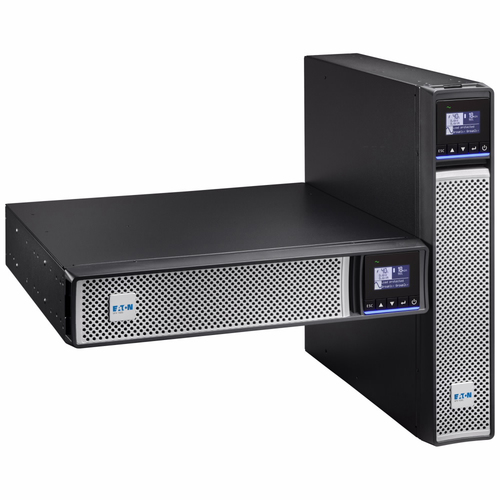

Eaton 5PX3000IRT2UG2 3 kVA Line-Interactive UPS Pure Sine 160-294 V
Power spikes, brownouts, and full blackouts can damage sensitive electronics and corrupt data. When these events happen, you need a device that not only supplies power but also cleans the waveform so servers run smoothly. The Eaton UPS uses line-interactive technology and a pure sine wave output to keep voltage stable, and its 3 kVA capacity protects multiple devices at once. With energy-star efficiency it also reduces electricity use, so you save money while staying protected. It also balances load to keep all devices within safe limits.
Usages of Eaton
This unit fits in a rack or can stand as a tower, making it ideal for server rooms, network closets, and small office setups. Use it to protect database servers, VoIP phones, storage arrays, and even high-end workstations. It also works well with medical imaging equipment or point-of-sale systems that require a clean sine wave. Anywhere you need reliable power for critical IT gear, this UPS is a good match.
Benefits
- Provides up to 3 kVA of clean power, keeping servers running during outages.
- Pure sine wave output protects sensitive equipment like active-PFC servers.
- Energy-Star rating lowers electricity bills and cooling costs.
- Remote monitoring via Ethernet lets you manage the UPS from any location.
- Hot-swap batteries extend runtime without shutting down your devices.
Key Features
- Line-interactive topology with automatic voltage regulation.
- Unity power factor for efficient power use.
- 40 dB low noise level for quiet operation.
- Input voltage range 160 V-294 V, supports 47/70 Hz.
- 10 AC outlets (8 C13, 2 C19) for flexible connections.
- LCD display shows status, load, and battery health.
- Gigabit network card with dual cybersecurity certifications.
- Hot-swap battery modules up to 4 external units.
- Rackmount (2U) or tower form factor with included rails.
- Built-in automatic battery test and LED indicators.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
160 V |
| Waveform |
Pure sine |
| Output power |
3000 W |
| Output power capacity |
3 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Compliance certificates |
CE |
| Safety regulation & standards |
| Safety |
IEC/EN 62040-1, UL1778, CSA22.2 |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
31.7 kg |
| Height |
85.5 mm |
| Depth |
603 mm |
| Width |
438 mm |
| Packaging data |
| Management card included |
No |
| Other features |
| Nominal output voltage |
230 V |
| Operating temperature (T-T) |
0 - 40 °C |
| Output connections |
8 x IEC C13 (10A) 2 x IEC C19 (16A) |
