When the power flickers or drops, computers, routers and small servers can shut down or lose data. This hurts productivity and can cause costly repairs. You need a device that keeps your equipment running long enough to save work and finish tasks. The Eaton 5SC1000IRBS Line-Interactive 1kVA UPS 700W Sine Output gives you clean, reliable power and protects against outages.
Eaton 5SC1000IRBS Line-Interactive 1kVA UPS 700W Sine Output with Eaton
Stay online even when the grid fails. This UPS from Eaton supplies a pure sine wave to keep PCs, networking gear and small office devices safe. It corrects voltage dips and spikes automatically, so you never worry about sudden shutdowns. If you run a home office or a small business, this unit is the safety net you need.
Usages
Use it on a desk to protect a desktop computer and monitor. Mount it in a rack to back up a small server or NAS. It also works well for point-of-sale terminals, security cameras and VoIP phones. Anywhere you need uninterrupted power for a few minutes, this UPS fits.
Benefits
- Stops data loss by giving you time to save work.
- Keeps internet and phone lines alive during short outages.
- Reduces equipment wear caused by voltage spikes.
- Quiet operation (40 dB) lets you work without distraction.
- Easy to install with included cables and rack kit.
Key Features
- 1 kVA / 700 W capacity for small office loads.
- Line-interactive topology with Automatic Voltage Regulation.
- Pure sine wave output for sensitive electronics.
- 96 % efficiency reduces energy cost.
- 8 AC outlets with C13 couplers for easy plug-in.
- Hot-swap battery design for quick replacement.

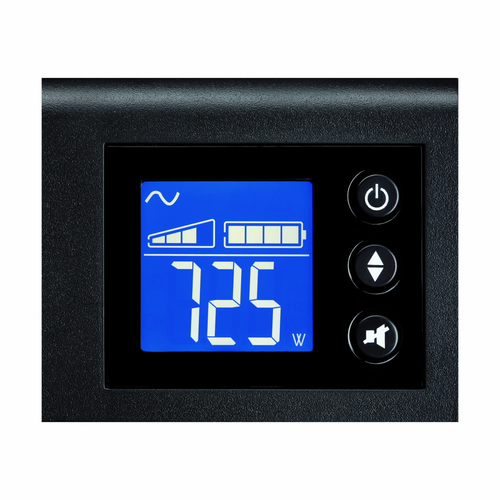

- LCD display shows status and battery test results.
- RS-232 serial and USB Type-B ports for monitoring.
- Input range 184-276 V, output range 220-240 V.
- Compact rackmount size, only 43.2 mm high.
Specifications
| Features |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
0.7 |
| Power factor |
0.7 |
| Efficiency |
96% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
45/65 Hz |
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
184 V |
| Waveform |
Sine |
| Output power |
700 W |
| Output power capacity |
1 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port type |
USB Type-B |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Battery capacity |
9 Ah |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Typical backup time at full load |
5 min |
| Number of batteries supported |
2 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Product colour |
Black, Silver |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
| Certification |
TUV UL 1778 IEC/EN 62040-1 IEC/EN 62040-2 EAC cTUVus |
| Compliance certificates |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Weight |
15.4 kg |
| Height |
43.2 mm |
| Depth |
438 mm |
| Width |
509 mm |
